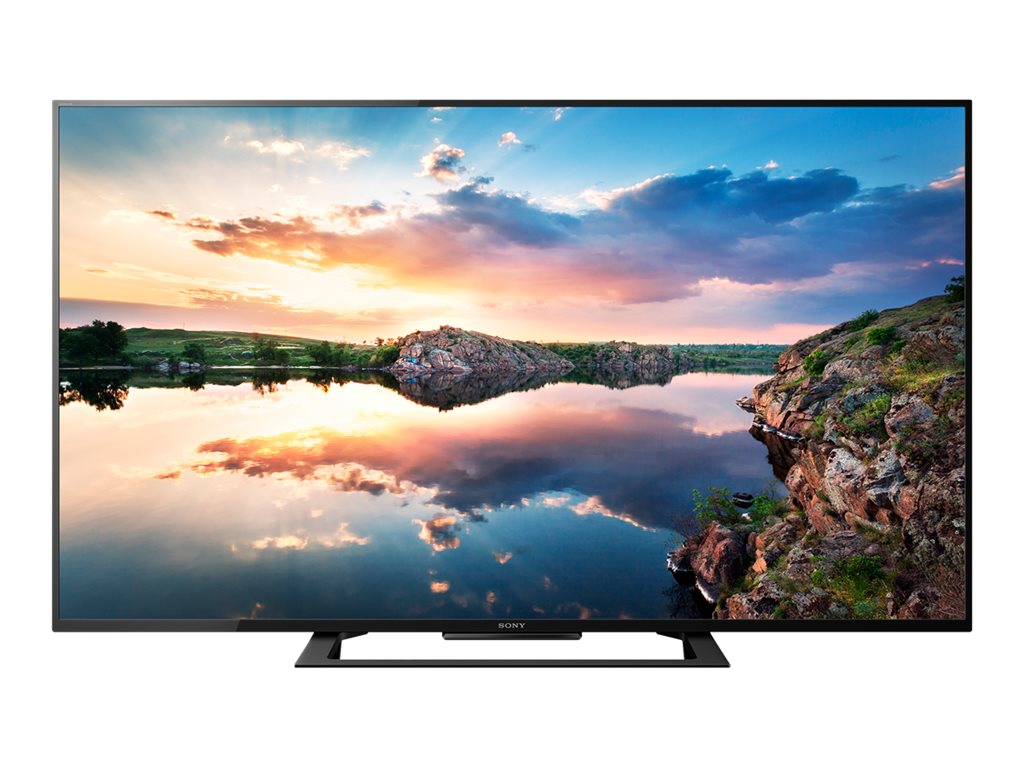

70" Diagonal Class (69.5" viewable) - BRAVIA LED-backlit LCD TV - Smart TV - 4K UHD (2160p) 3840 x 2160 - HDR - direct-lit LED, frame blinking - black
| Main Specifications | |
|---|---|
| Product Description | Sony Bravia KD-70X690E BRAVIA - 70" Class (69.5" viewable) LED-backlit LCD TV - 4K |
| Product Type | LED-backlit LCD TV - Smart TV |
| Diagonal Class | 70" |
| Diagonal Size | 69.5" |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Input Video Formats | 480p, 480i, 1080/24p, 1080/60i, 720/60p, 1080/60p, 1080/30p, 2160/24p, 2160/30p, 720/24p, 720/30p, 2160/60p |
| HDR Technology | 4K HDR |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| 24p Technology | 24p True Cinema |
| Video Interface | Component, composite, HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN |
| LCD Backlight Technology | Direct-lit LED, frame blinking frame dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | 1x analog, 1x digital |
| Digital TV Tuner | ATSC, QAM |
| Analog TV Tuner | NTSC |
| Internet Streaming Services | Netflix, YouTube, Opera App Store |
| Picture Enhancements | Live Color, 4K X-Reality PRO Engine, Dynamic Contrast Enhancer |
| Speaker System | 2 speakers |
| Sound Effects | S-FORCE Front Surround Sound, DTS Digital Surround, Auto Surround |
| Storage Drive Capacity | 4 GB |
| Storage Capacity | 4 GB |
| USB | 3 ports |
| Included Accessories | Sony RMT-TX300U remote control, batteries |
| Voltage | AC 120 V (50/60 Hz) |
| Power Consumption Operational | 185 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Energy Consumption per Year | 244 kWh |
| Dimensions (WxDxH) - without stand | 61.7 in x 3.7 in x 35.5 in |
| Weight | 61.07 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | LED-backlit LCD TV - Smart TV |
| Power Consumption Operational | 185 Watt |
| Energy Consumption per Year | 244 kWh |
| Diagonal Class | 70" |
| Diagonal Size | 69.5" |
| Series | BRAVIA |
| Operating System | Linux |
| HDR Capable | Yes |
| HDR Technology | 4K HDR |
| TV Tuner | 1x analog, 1x digital |
| TV Tuner Presence | Yes |
| Video Interface | Component, composite, HDMI |
| HDMI Ports Qty | 3 ports |
| Modes | Photo Frame mode, hotel mode, Demo Mode |
| Picture Enhancements | Live Color, 4K X-Reality PRO Engine, Dynamic Contrast Enhancer |
| Dimensions | Without stand |
| Width | 61.7 in |
| Depth | 3.7 in |
| Height | 35.5 in |
| Weight | 61.07 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Batteries |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 120 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Estimated Annual Operating Cost | 30 USD |
| Auto On/Off | Yes |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| 24p Technology | 24p True Cinema |
| LCD Backlight Technology | Direct-lit LED, frame blinking - frame dimming |
| Viewing Angle | 176° |
| Viewing Angle (Vertical) | 176° |
| Display Menu Language | English, French, Spanish |
| Additional Features | Dynamic Backlight Control, Channel Block, 12-bit support, Mastered in 4K |
| Connections | |
| Connector Type | Audio line-in - rear ¦ Audio line-out / headphones / subwoofer - side ¦ Composite video / component video input - rear ¦ SPDIF output - rear ¦ LAN - rear ¦ 2 x HDMI input - side ¦ HDMI input - rear ¦ 3 x USB |
| Video Features | |
| Input Video Formats | 480p, 480i, 1080/24p, 1080/60i, 720/60p, 1080/60p, 1080/30p, 2160/24p, 2160/30p, 720/24p, 720/30p, 2160/60p |
| Supported Computer Resolutions | 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1152 x 864, 1680 x 1050 (WSXGA+), 1920 x 1080, 1600 x 900, 3840 x 2160, 4096 x 2160 |
| Parental Channel Lock | Yes |
| Closed Caption Capability | Yes |
| Remote Control | |
| Type | Remote control |
| Remote Control Model | Sony RMT-TX300U |
| Features | Scene Select |
| Audio System | |
| Digital Audio Format | Dolby Digital output, DTS digital output, Dolby Digital Plus output, Dolby Pulse output |
| Surround Mode | Yes |
| Sound Effects | S-FORCE Front Surround Sound, DTS Digital Surround, Auto Surround |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Additional Features | Balance control, Down-firing Speaker, S-Master Digital Amplifier, Audio Return Channel (ARC), Alternate Audio, Clear Phase Speaker, Digital Sound Enhancement Engine (DSEE), Advanced Auto Volume, Clear Audio+, Open Baffle Speaker |
| Speakers | 2 x speaker - 10 Watt |
| Driver Details | Speaker: 2 x full-range driver |
| TV Tuner | |
| Analog TV Tuner | NTSC |
| Reception System | NTSC-M |
| Channel Coverage | VHF:2-13, UHF:14-69, Cable:1-135 |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 71.2 in |
| Depth (Shipping) | 7.9 in |
| Height (Shipping) | 40.2 in |
| Weight (Shipping) | 85.98 lbs |
| Network & Internet Multimedia | |
| Functionality | Internet video playback |
| Connectivity | Wi-Fi, LAN |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n |
| Connect & Share | Wi-Fi Direct, Screen Mirroring, Wi-Fi Miracast, Photo Share, Photo Sharing Plus, Home Network Client, Home Network Renderer |
| Internet Streaming Services | Netflix, YouTube, Opera App Store |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel without stand - 61.7 in x 3.7 in x 35.5 in x 61.1 lbs ¦ Panel with stand - 61.7 in x 12 in x 37.4 in x 63.7 lbs |
| Digital TV Tuner | |
| Digital TV Tuner | ATSC, QAM |
| HDTV Tuner | Yes |
| Stands & Mounts | |
| Stand | Included |
| Stand Design | Tabletop |
| Flat Panel Mount Interface | 400 x 400 mm |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, Motion-JPEG, Xvid, WMV, AVI, MKV, AVCHD, TS, PS, WebM |
| Supported Audio Formats | MP3, WMA, WAV, LPCM |
| Supported Pictures Formats | JPEG |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Configuration | 4 GB |
| Storage Drive Capacity | 4 GB |
