Wireless router 3-port switch 2.4 GHz
| Main Specifications | |
|---|---|

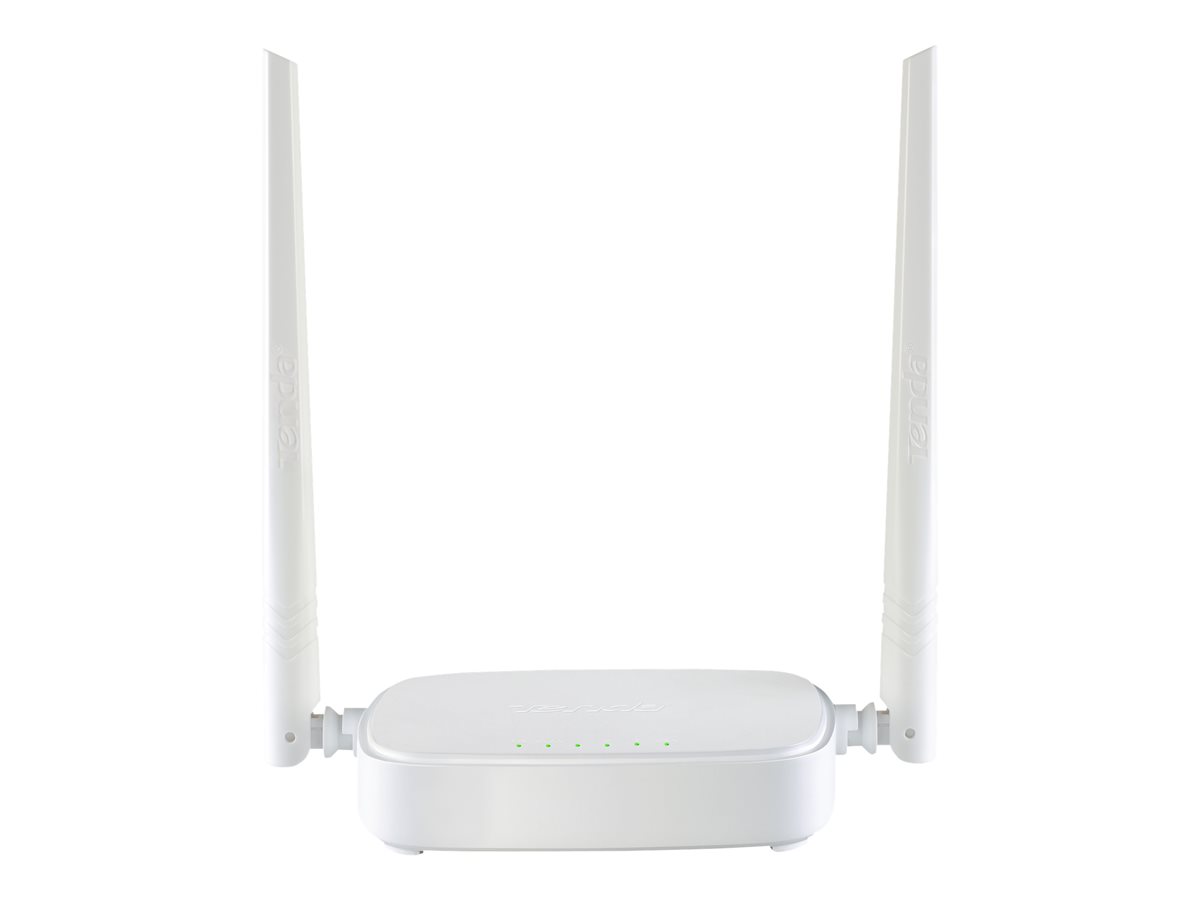

| Product Description | Tenda N301 - wireless router - Wi-Fi - desktop |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | HTTP |
| Features | DMZ port, Syslog support, MAC address filtering, VPN passthrough, URL filtering, parental control, Access Point operational mode, WPS, DHCP server, bandwidth control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
| Dimensions (WxDxH) | 5 in x 3.6 in x 1 in |
| General | |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | HTTP |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | DMZ port, Syslog support, MAC address filtering, VPN passthrough, URL filtering, parental control, Access Point operational mode, WPS, DHCP server, bandwidth control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP, FCC, RoHS |
| Expansion / Connectivity | |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 3.6 in |
| Height | 1 in |
| Antenna | |
| Antenna | External integrated |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
