Video/audio/infrared/serial extender - HDMI, RS-232, infrared, HDBaseT - up to 230 ft
| Main Specifications | |
|---|---|

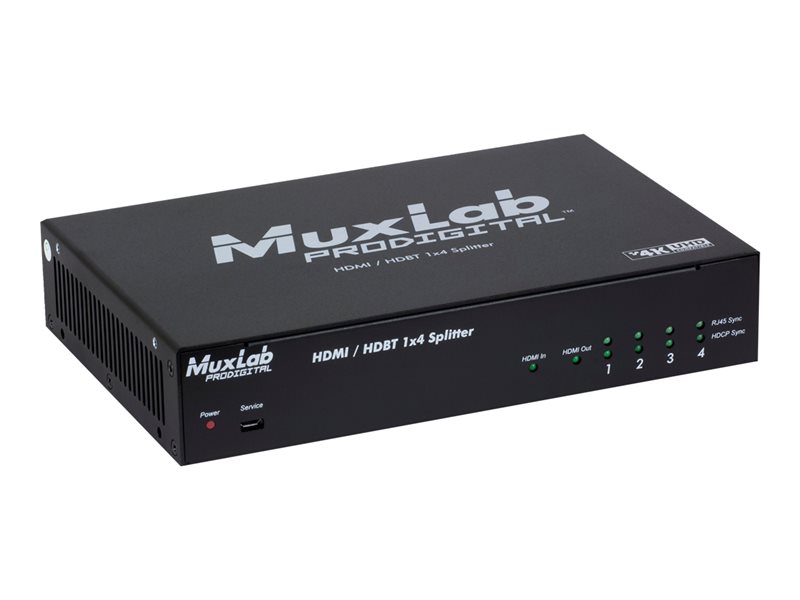

| Product Description | MuxLab Prodigital HDMI / HDBT 1x4 Splitter - video/audio/infrared/serial extender - HDMI, RS-232, infrared, HDBaseT |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Localization | United States |
| Data Link Protocol | HDMI, RS-232, infrared, HDBaseT |
| Max Transfer Distance | 230 ft |
| Power | AC 120/230 V |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x RS-232 ¦ 1 x IrDA (input) - mini jack female ¦ 1 x IrDA (output) - mini jack female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 4 x HDBaseT (output) - RJ-45 |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, RS-232, infrared, HDBaseT |
| Max Resolution | 30 Hz |
| Max Video Bandwidth | 297 MHz |
| Max Transfer Distance | 230 ft |
| Features | 4K resolution support, HDCP compliant, EDID Management, cascadable |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
