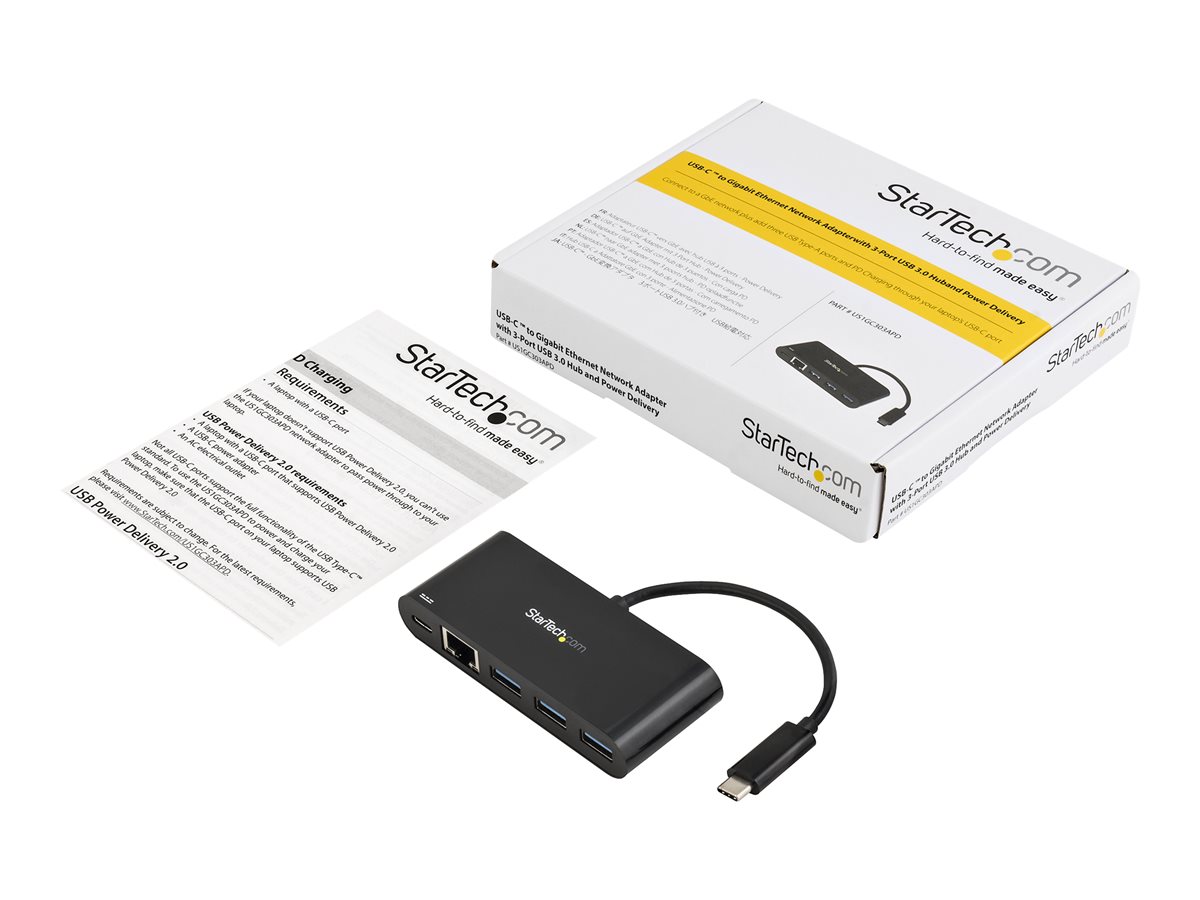

3 Port - with Power Delivery (USB PD) - Power Pass Through Charging - USB C Adapter (US1GC303APD) - Network adapter - USB-C - Gigabit Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | Startech USB C to Ethernet Adapter - 3 Port - with Power Delivery (USB PD) - Power Pass Through Charging - USB C Adapter (US1GC303APD) - network adapter - USB-C - Gigabit Ethernet |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C |
| Ports | Gigabit Ethernet |
| Dimensions (WxDxH) | 1.6 in x 3.7 in x 0.7 in |
| Weight | 1.58 oz |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 5 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Processor | VL100 / VL813 / RTL8153 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Color | Black |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Linux Kernel 2.6.25 or later, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.7 - 10.15, Apple macOS 11.0, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 - female ¦ 3 x USB 3.0 - 9 pin USB Type A - female ¦ 1 x USB-C - 24 pin USB-C (power only) - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE, RCM |
| Color | Black |
| Networking | |
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 5 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Features | Full duplex capability, auto-negotiation, USB powered, Jumbo Frames support, plastic housing, Energy Efficient Ethernet, UASP, built-in 3-port USB 3.0 hub, VLAN Tagging (not supported in MacOS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Linux Kernel 2.6.25 or later, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.7 - 10.15, Apple macOS 11.0, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | VL100 / VL813 / RTL8153 |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 3.7 in |
| Height | 0.7 in |
| Weight | 1.58 oz |
