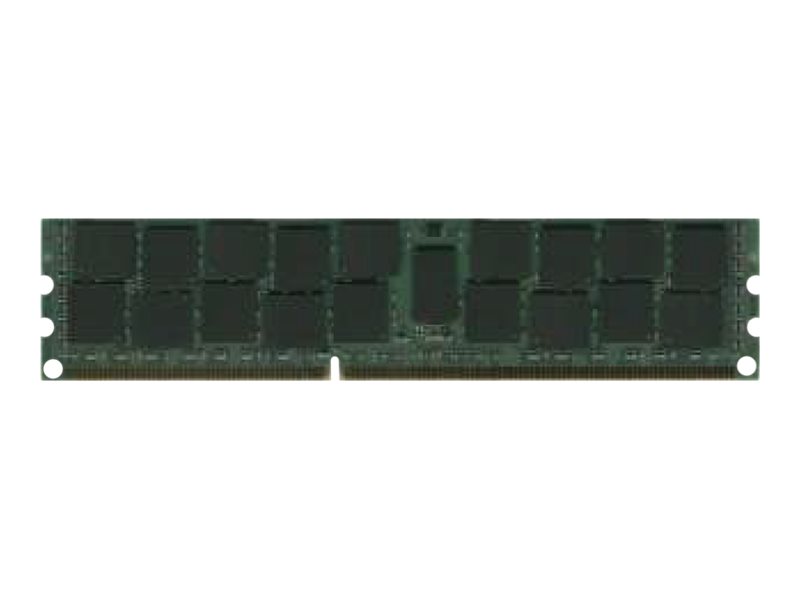

DDR3 - module - 16 GB - DIMM 240-pin - 1600 MHz / PC3-12800 - CL11 - 1.5 V - registered - ECC
| Main Specifications | |
|---|---|
| Product Description | Dataram - DDR3 - module - 16 GB - DIMM 240-pin - 1600 MHz / PC3-12800 - registered |
| Product Type | Memory module |
| Capacity | 16 GB |
| Memory Type | DDR3 SDRAM - DIMM 240-pin |
| Upgrade Type | Generic |
| Data Integrity Check | ECC |
| Speed | 1600 MHz (PC3-12800) |
| Latency Timings | CL11 (11-11-11) |
| Features | Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), registered |
| Voltage | 1.5 V |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Capacity | 16 GB |
| Upgrade Type | Generic |
| Width | 5.2 in |
| Depth | 0.2 in |
| Height | 1.2 in |
| Memory | |
| Type | DRAM memory module |
| Technology | DDR3 SDRAM |
| Form Factor | DIMM 240-pin |
| Module Height (inch) | 1.18 |
| Speed | 1600 MHz (PC3-12800) |
| Latency Timings | CL11 (11-11-11) |
| Data Integrity Check | ECC |
| Features | Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), registered |
| Module Configuration | 2048 x 72 |
| Chips Organization | 1024 x 4 |
| Voltage | 1.5 V |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS |
