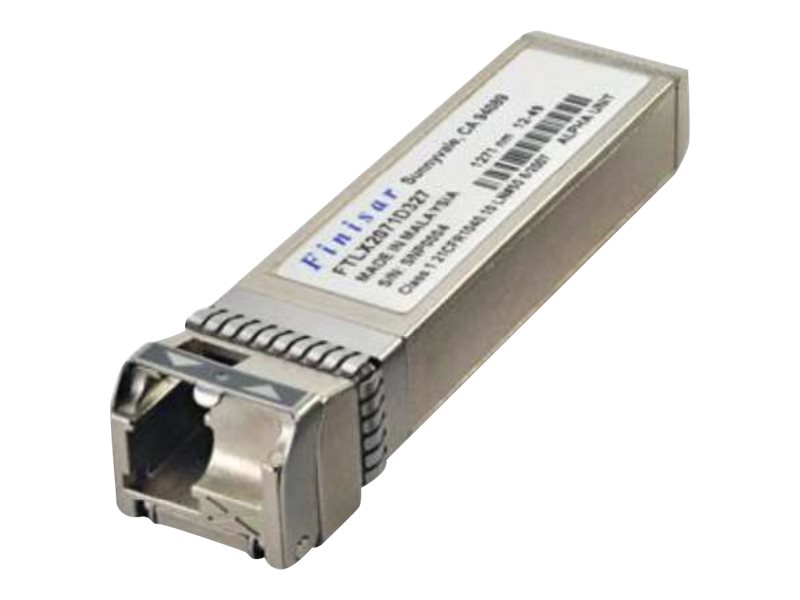

SFP+ transceiver module - 10GbE, 10Gb Fibre Channel - Fibre Channel, 10GBase-LR, 10GBase-LW, 1000Base-LX10 - LC single-mode - up to 6.2 miles - 1271 nm
| Main Specifications | |
|---|---|
| Product Description | Finisar FTLX2672D327 - SFP+ transceiver module - 1GbE, 10GbE, 10Gb Fibre Channel |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | Fibre Channel, 10GBase-LR, 10GBase-LW, 1000Base-LX10 |
| Data Transfer Rate | 11.3 Gbps |
| Optical Wave Length | 1271 nm |
| Data Link Protocol | 1GbE, 10GbE, 10Gb Fibre Channel |
| Max Transfer Distance | 6.2 miles |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Color | Gray |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR/10GBase-LW/1000Base-LX10/10Gb Fibre Channel - LC single-mode female |
| Miscellaneous | |
| Compliant Standards | Lead-Free, RoHS, MSA SFF-8472, MSA SFF-8431, RoHS 2011/65/EU |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel, 10GBase-LR, 10GBase-LW, 1000Base-LX10 |
| Data Link Protocol | 1GbE, 10GbE, 10Gb Fibre Channel |
| Data Transfer Rate | 11.3 Gbps |
| Optical Wave Length | 1271 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Bi-Directional (BiDi), hot swappable, Digital Diagnostic Function (DMI) |
| Compliant Standards | IEEE 802.3ae |
| Power | |
| Power Consumption Operational | 1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
