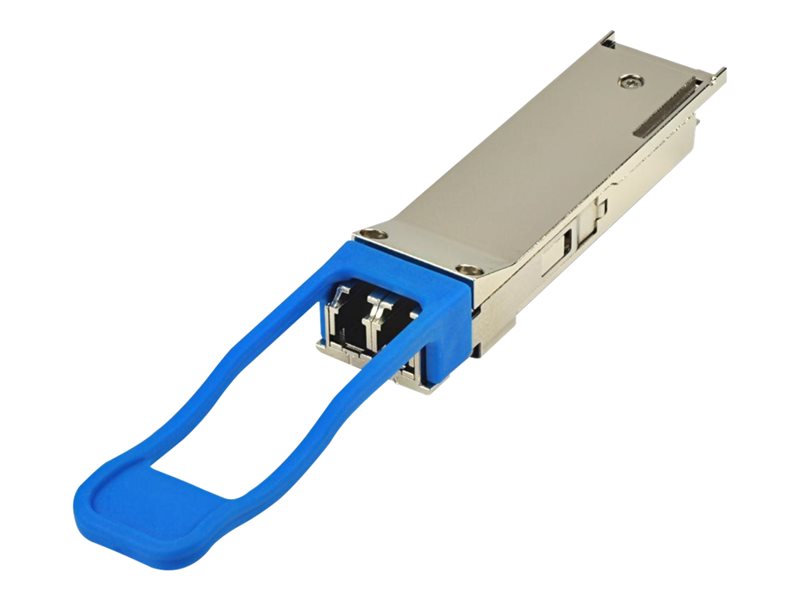

QSFP+ transceiver module - 10GbE, InfiniBand, 40GbE - 40GBase-LR4 - LC single-mode - up to 1.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Finisar FTL4C1QL2L - QSFP+ transceiver module - 10GbE, InfiniBand, 40GbE |
| Device Type | QSFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-LR4 |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10GbE, InfiniBand, 40GbE |
| Max Transfer Distance | 1.2 miles |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-LR4 - LC single-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | RoHS, RoHS 2011/65/EU |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-LR4 |
| Data Link Protocol | 10GbE, InfiniBand, 40GbE |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Digital Diagnostics |
| Compliant Standards | IEEE 802.3ba |
| Power | |
| Power Consumption Operational | 2.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 140 °F |
