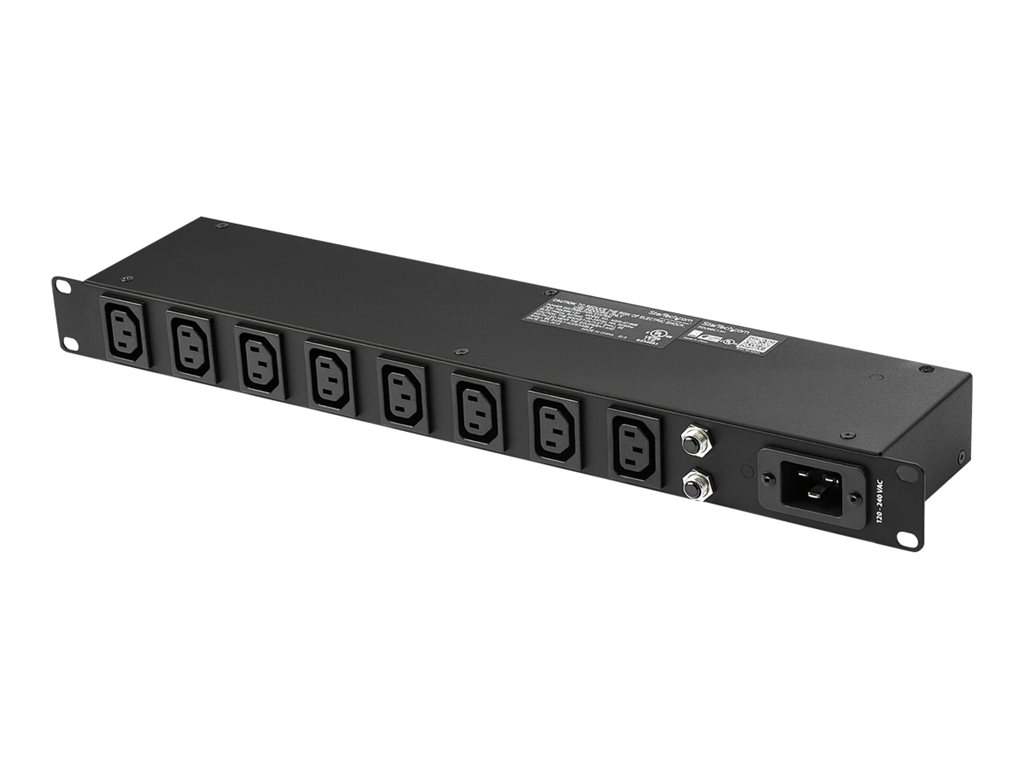

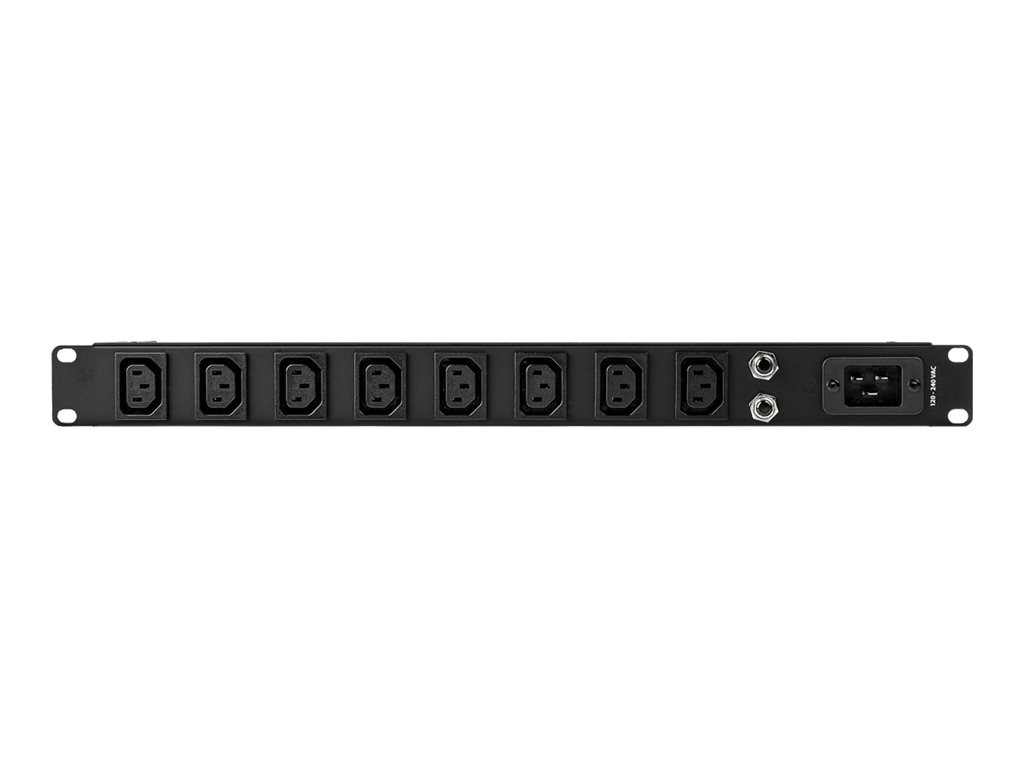

Horizontal PDU Strip (PDU08C13H) - Power distribution unit (rack-mountable) - AC 110-240 V - 1920 VA - 1-phase - input: IEC 60320 C20 16A - output connectors: 8 (power IEC 60320 C13) - 1U - 19" - for P/N: PAC10110, PAC1011410, PAC10115, PAC10120, PAC10125, PAC1013, PXT101_10, PXT10112
| Main Specifications | |
|---|---|
| Product Description | StarTech 8 C13 Outlet Horizontal 1U Rack Mount PDU Power Strip for Server Racks, Surge Protection, 16A, 10ft NEMA 5-20P Power Cord, IEC 320 C13 Power Outlet Strip Unit, 8 Outlet PDU - Horizontal PDU Strip (PDU08C13H) - power distribution unit - 1920 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" - 1U |
| Input Wiring | 1-phase |
| Input Voltage | AC 110-240 V |
| Output Voltage | 240 V |
| Power Capacity | 1920 VA |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Output connectors | 8 x power IEC 60320 C13 (surge) |

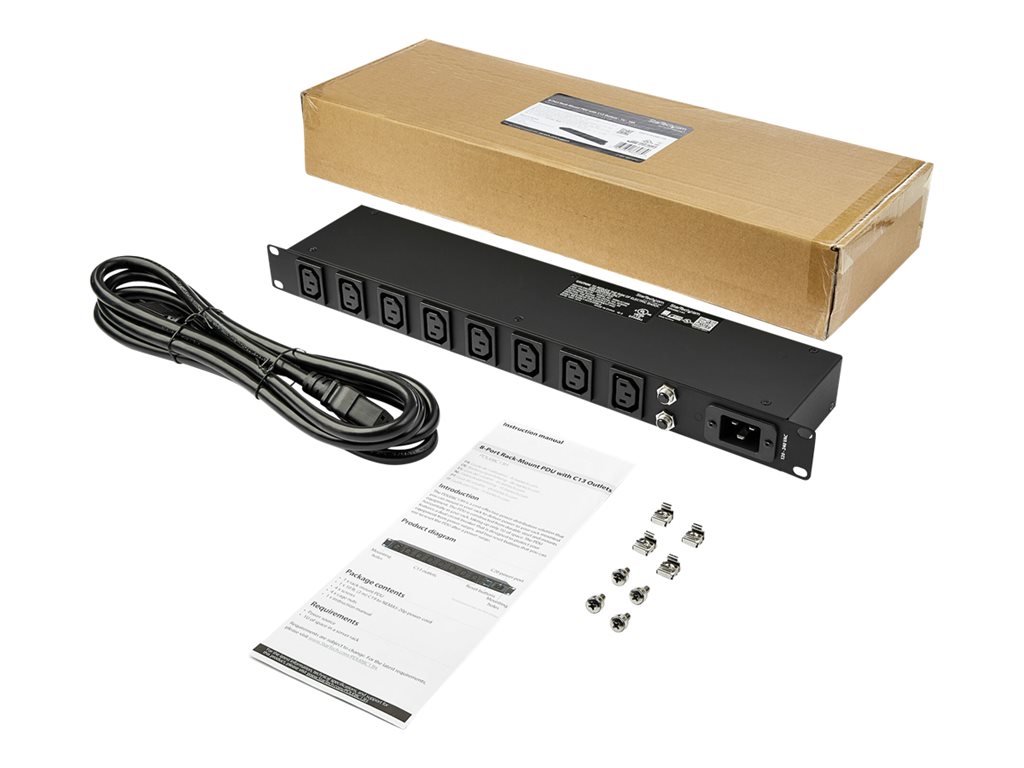

| Included Accessories | 4 M5 screws, 4 M5 cage nuts |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: PAC100, PAC10110, PAC1011410, PAC10115, PAC10120, PAC10125, PAC1013, PXT101, PXT101_10, PXT10112 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 4 M5 screws, 4 M5 cage nuts |
| Cables Included | Power cable - external - 10 ft |
| Features | Surge protection, horizontal orientation |
| Compliant Standards | EIA-310-D, RoHS, WEEE |
| Power Device | |
| Input Voltage | AC 110-240 V |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 8 x power IEC 60320 C13 (surge) |
| Output Voltage | 240 V |
| Max Electric Current | 20 A |
| Power Capacity | 1920 VA |
| Surge Energy Rating | 3600 joules |
| Circuit Protection | Circuit breaker |
| Compatibility Information | |
| Designed For | P/N: PAC100, PAC10110, PAC1011410, PAC10115, PAC10120, PAC10125, PAC1013, PXT101, PXT101_10, PXT10112 |
