Wireless access point - Wi-Fi - 2.4 GHz - TAA Compliant (pack of 2)
| Main Specifications | |
|---|---|

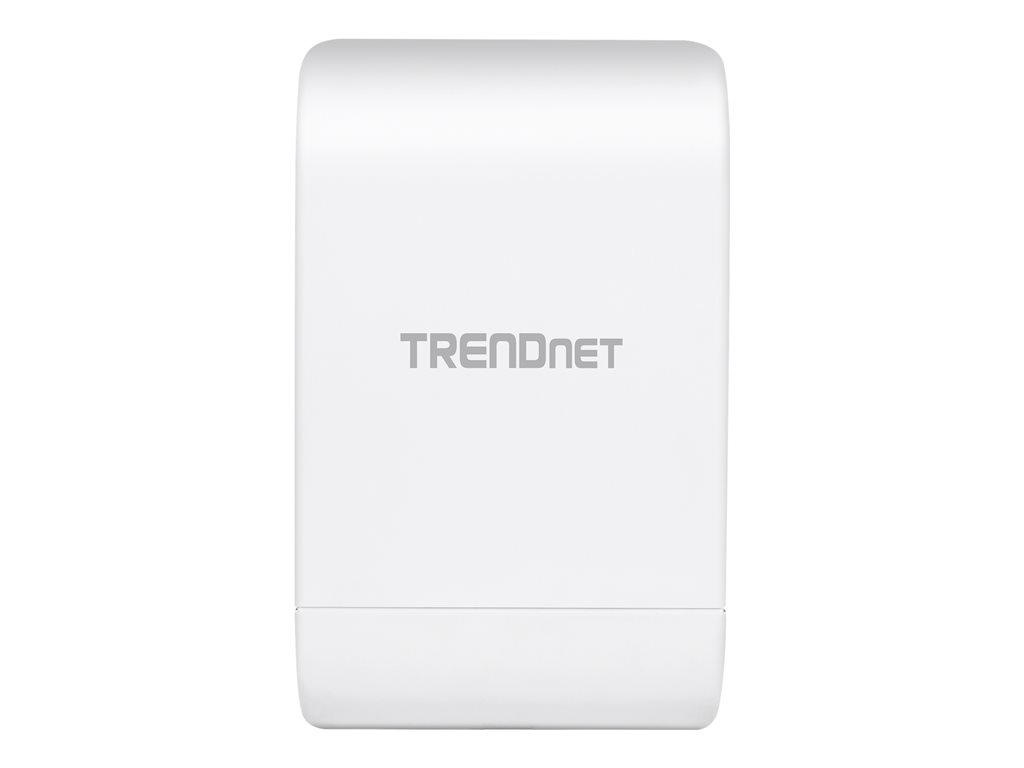

| Product Description | TRENDnet TEW 740APBO2K 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit - wireless access point - Wi-Fi - TAA Compliant |
| Device Type | Wireless access point |
| Packaged Quantity | 2 (specifications are for single item) |
| Form Factor | External - outdoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Capacity | Maximum number of configured SSIDs: 7 |

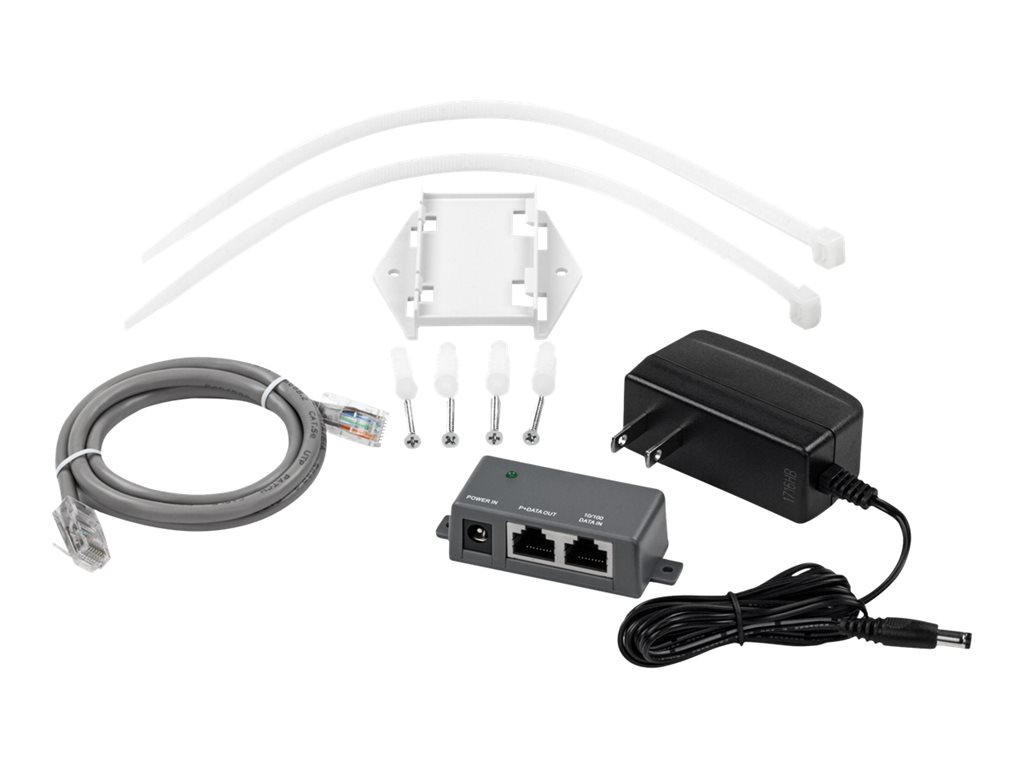

| Included Accessories | Grounding kit, mounting brackets, 2 PoE injectors |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 120/230 V (50 - 60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 4.6 in x 2.4 in x 7.7 in |
| Weight | 11.29 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 4.6 in |
| Depth | 2.4 in |
| Height | 7.7 in |
| Weight | 11.29 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Grounding kit, mounting brackets, 2 PoE injectors |
| Compliant Standards | FCC, IPX6 |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM, DBPK, DSSS |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, CSMA/CA |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Frequency Band | 2.4 GHz |
| Capacity | Maximum number of configured SSIDs: 7 |
| Features | Firewall protection, NAT support, Wireless Distribution System (WDS) support, firmware upgradable, WISP mode, IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, virtual server support, reset button, SNMP trap, 802.1x authentication, router mode, DMZ support, bridge mode |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11f, IEEE 802.11r |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 13.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 99% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Directivity | Directional |
| Gain Level | 10 dBi |
