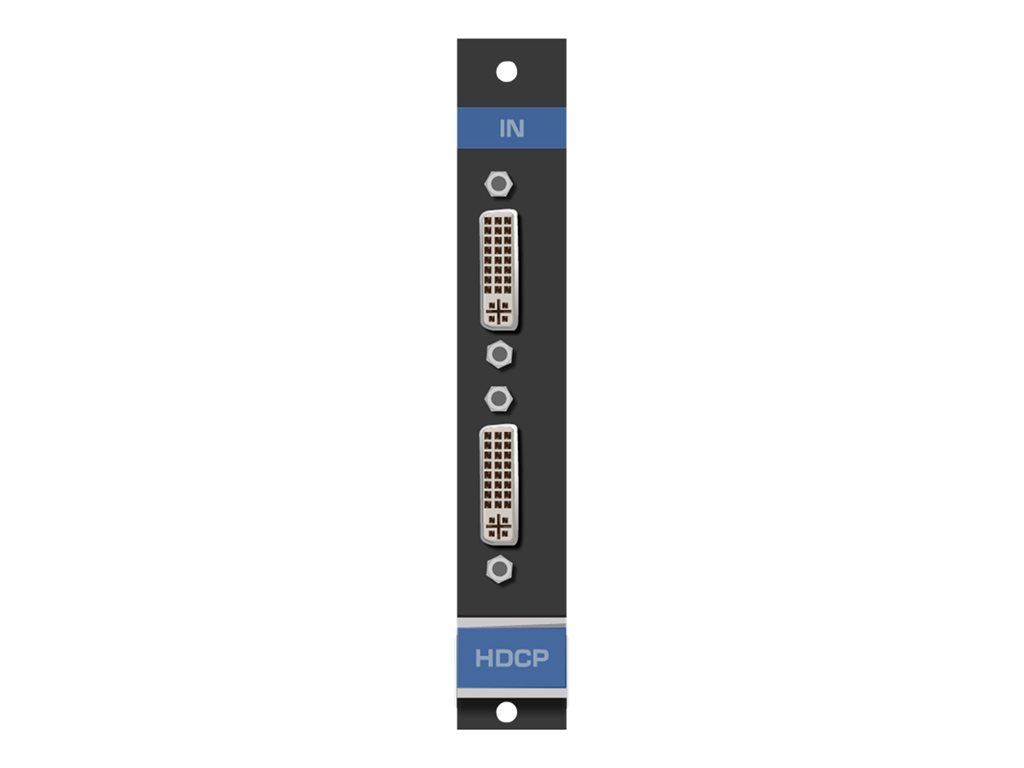

Expansion module - DVI-D input x 2
| Main Specifications | |
|---|---|
| Product Description | Kramer HDCP-IN2-F16/STANDALONE - expansion module - DVI-D input x 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | DVI-D input x 2 |
| Dimensions (WxDxH) | 7.5 in x 5.1 in x 0.8 in |
| Weight | 8.11 oz |
| Data Transfer Rate | 6.75 Gbps |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 2 x DVI-D input - 24+1 pin digital DVI |
| Miscellaneous | |
| Compliant Standards | FCC, WEEE |
| Networking | |
| Ports | DVI-D input x 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 6.75 Gbps |
| Features | HDCP compliant, 3D Pass-Through |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 5.1 in |
| Height | 0.8 in |
| Weight | 8.11 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2 in |
| Shipping Weight | 13.05 oz |
