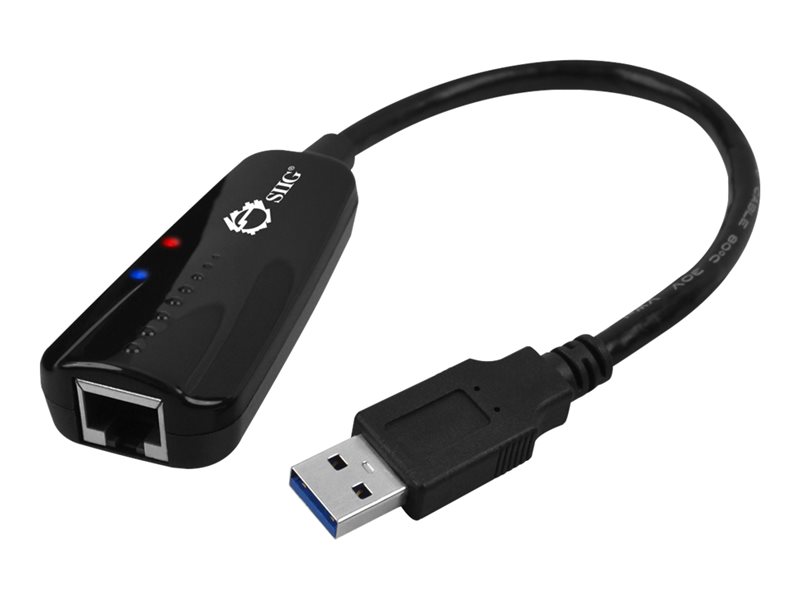

Network adapter - USB 3.0 - Gigabit Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | SIIG JU-NE0711-S1 - network adapter - USB 3.0 - Gigabit Ethernet |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Ports | Gigabit Ethernet |
| Dimensions (WxDxH) | 2.8 in x 1.2 in x 0.7 in |
| Weight | 1.44 oz |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Processor | 1 x Realtek Semiconductor RTL8153 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, USB 3.0, IEEE 802.3az |
| Color | Black |
| System Requirements | Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows XP / Vista / 7 / 8 / 10 (32/64 bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits), Apple MacOS X 10.6 - 10.12 |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable (integrated) - 6.3 in |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Power, diagnostic |
| Features | Flow control, WOL, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Jumbo Frames support, plastic housing, Back Pressure Support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, USB 3.0, IEEE 802.3az |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows XP / Vista / 7 / 8 / 10 (32/64 bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits), Apple MacOS X 10.6 - 10.12 |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 85% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Realtek Semiconductor RTL8153 |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 1.2 in |
| Height | 0.7 in |
| Weight | 1.44 oz |
