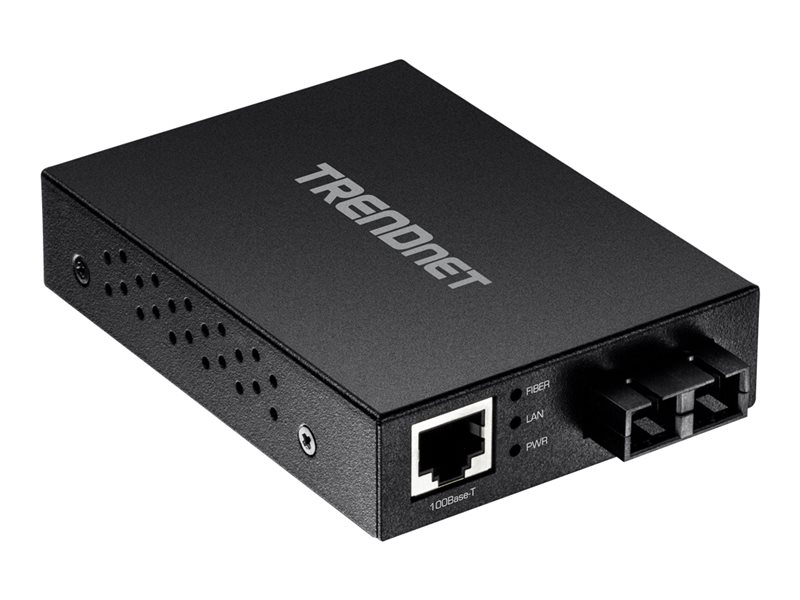

Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-FX - RJ-45 / SC multi-mode - up to 1.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TFC FMSC - fiber media converter - 100Mb LAN |
| Device Type | Fiber media converter - RJ-45 / SC multi-mode |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 4 in x 3 in x 0.9 in |
| Weight | 6.84 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - SC multi-mode female x 2 ¦ 1 x Ethernet 100Base-TX - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Link/activity, power |
| Features | Auto-uplink (auto MDI/MDI-X), metal housing, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |

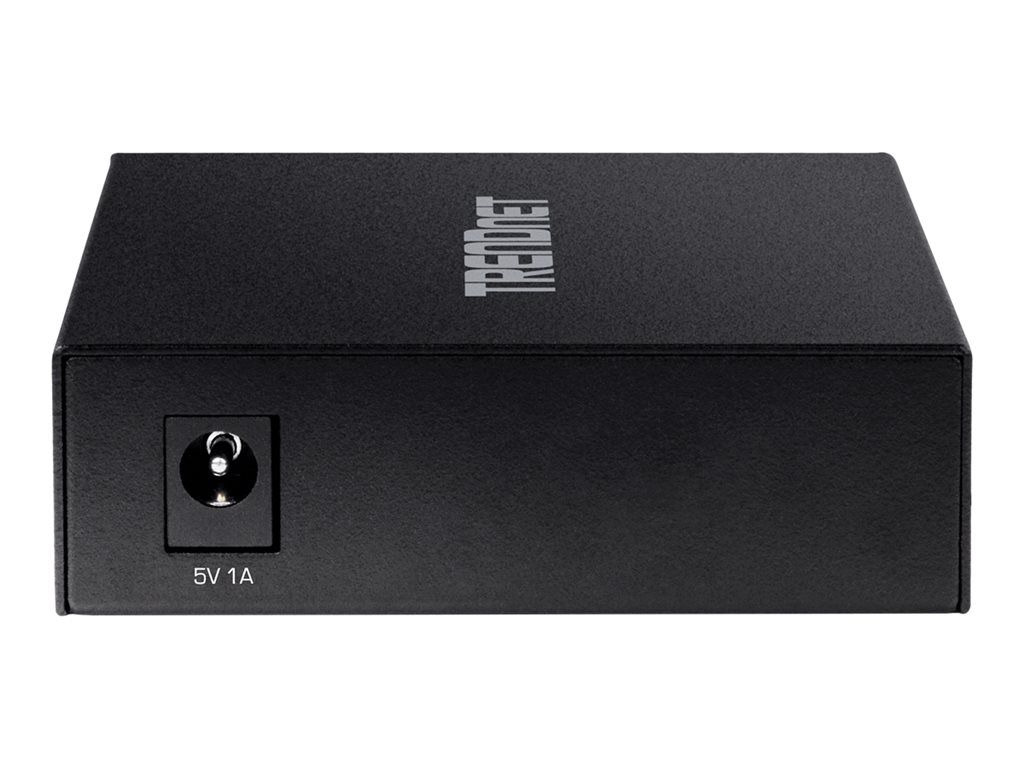

| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 2 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 3 in |
| Height | 0.9 in |
| Weight | 6.84 oz |
