Video/infrared/serial extender - up to 394 ft
| Main Specifications | |
|---|---|

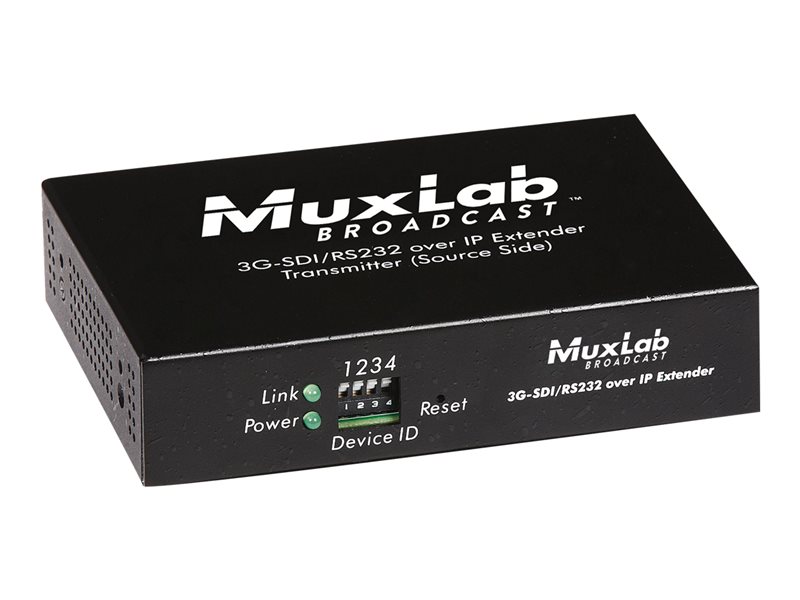

| Product Description | MuxLab 3G-SDI /RS232 over IP Extender TX - video/infrared/serial extender |
| Device Type | Video/infrared/serial extender |
| Form Factor | External |
| Max Transfer Distance | 394 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 4.4 in x 3 in x 1 in |
| Weight | 17.64 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/infrared/serial extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x 3G-SDI input - BNC ¦ 1 x serial - DB-9 ¦ 1 x network (PoE) - RJ-45 ¦ 1 x IrDA - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 1080p |
| Max Transfer Distance | 394 ft |
| Status Indicators | Link OK, power |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Consumption Operational | 2.9 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.4 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 17.64 oz |
