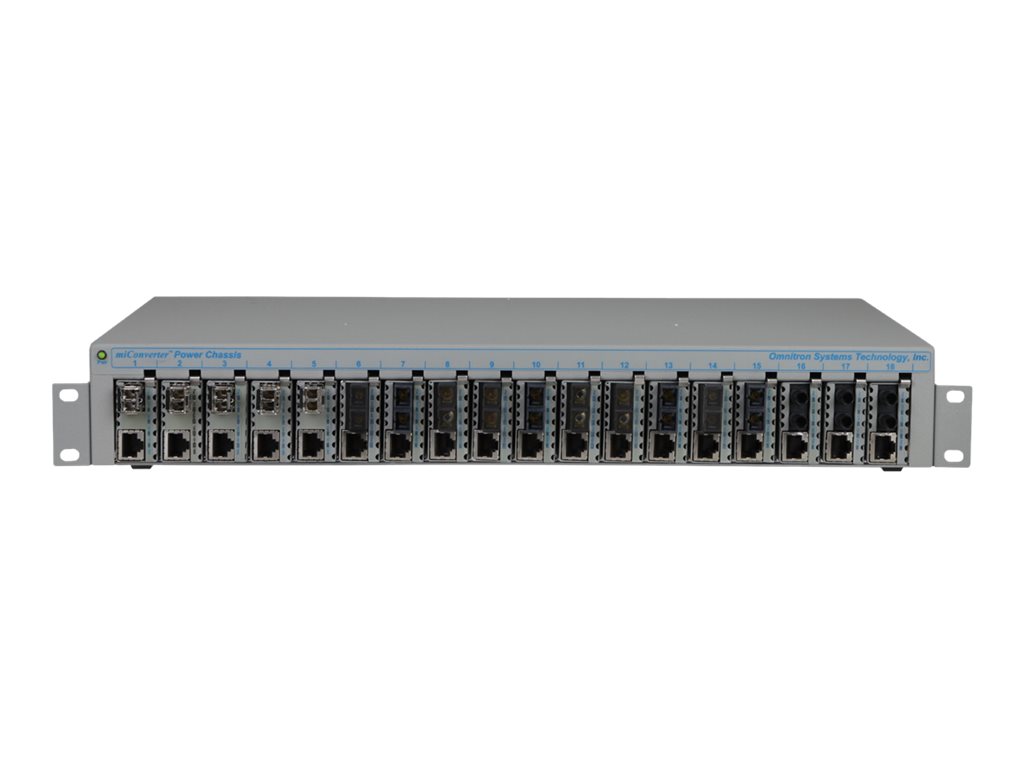

Modular expansion base - 1.5U
| Main Specifications | |
|---|---|
| Product Description | Omnitron miConverter 18-Module Chassis - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | External - 1.5U |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 8.4 in x 2.5 in |
| Weight | 7.21 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Height (Rack Units) | 1.5U |
| Width | 17.5 in |
| Depth | 8.4 in |
| Height | 2.5 in |
| Weight | 7.21 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 18 (total) / 18 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Technical support |
| Miscellaneous | |
| MTBF | 526,000 hours |
| Compliant Standards | FCC Class A certified, UL, cUL, RoHS, WEEE, REACH |
| Networking | |
| Form Factor | External |
| Features | Hot swap module replacement |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
