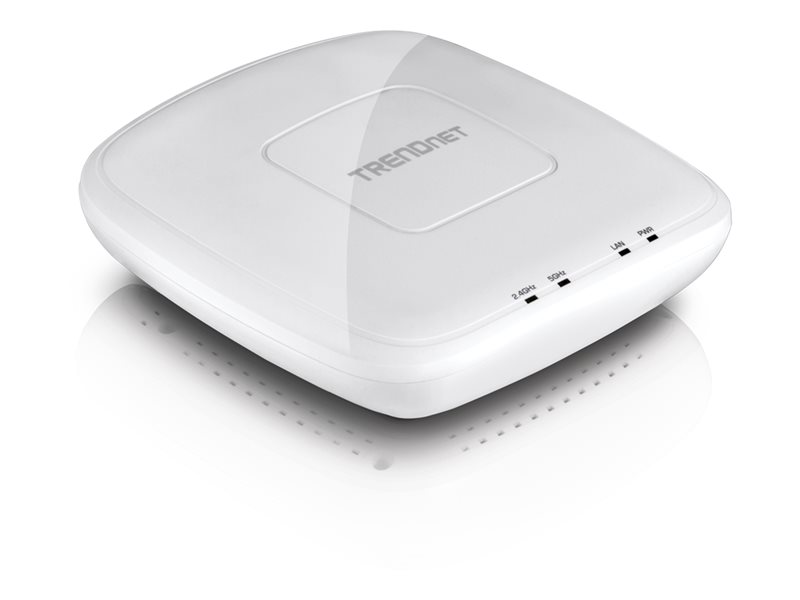

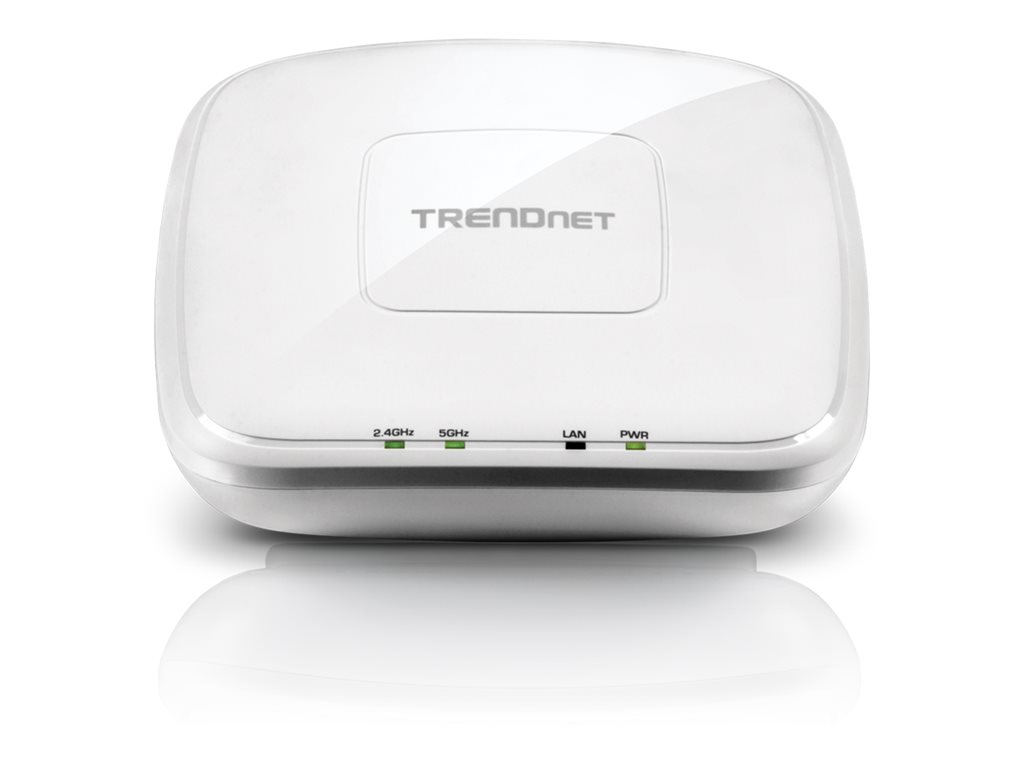

Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW 825DAP AC1750 Dual Band PoE Access Point - wireless access point - Wi-Fi 5 - TAA Compliant |
| Device Type | Wireless access point |
| Form Factor | External |
| Localization | English, German, French, Russian, Spanish |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |
| Included Accessories | Mounting brackets |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 120/230 V (50/60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 7.4 in x 7.4 in x 1.8 in |
| Weight | 14.67 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 7.4 in |
| Depth | 7.4 in |
| Height | 1.8 in |
| Weight | 14.67 oz |
| Enclosure Color | Off-white |
| Localization | English, German, French, Russian, Spanish |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

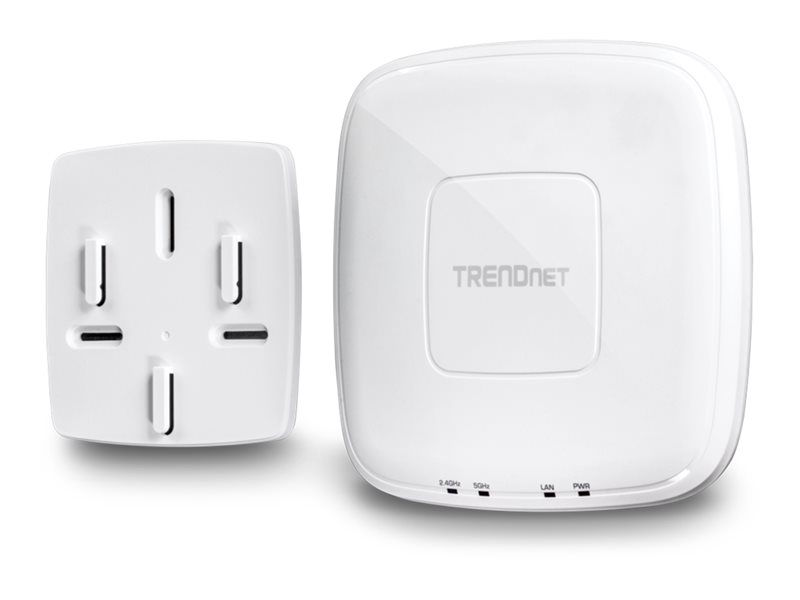

| Included Accessories | Mounting brackets |
| Cables Included | 1 x network cable - 5 ft |
| Compliant Standards | ETSI, FCC |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1750 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | DSSS |
| Remote Management Protocol | SNMP 1, SNMP 3, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |
| Features | DHCP support, VLAN support, repeating mode, traffic shaping, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, event log, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, band steering, WDS bridge, WDS access point |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK, WEP |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 12.5 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Antenna | |
| Gain Level | 4 dBi |
