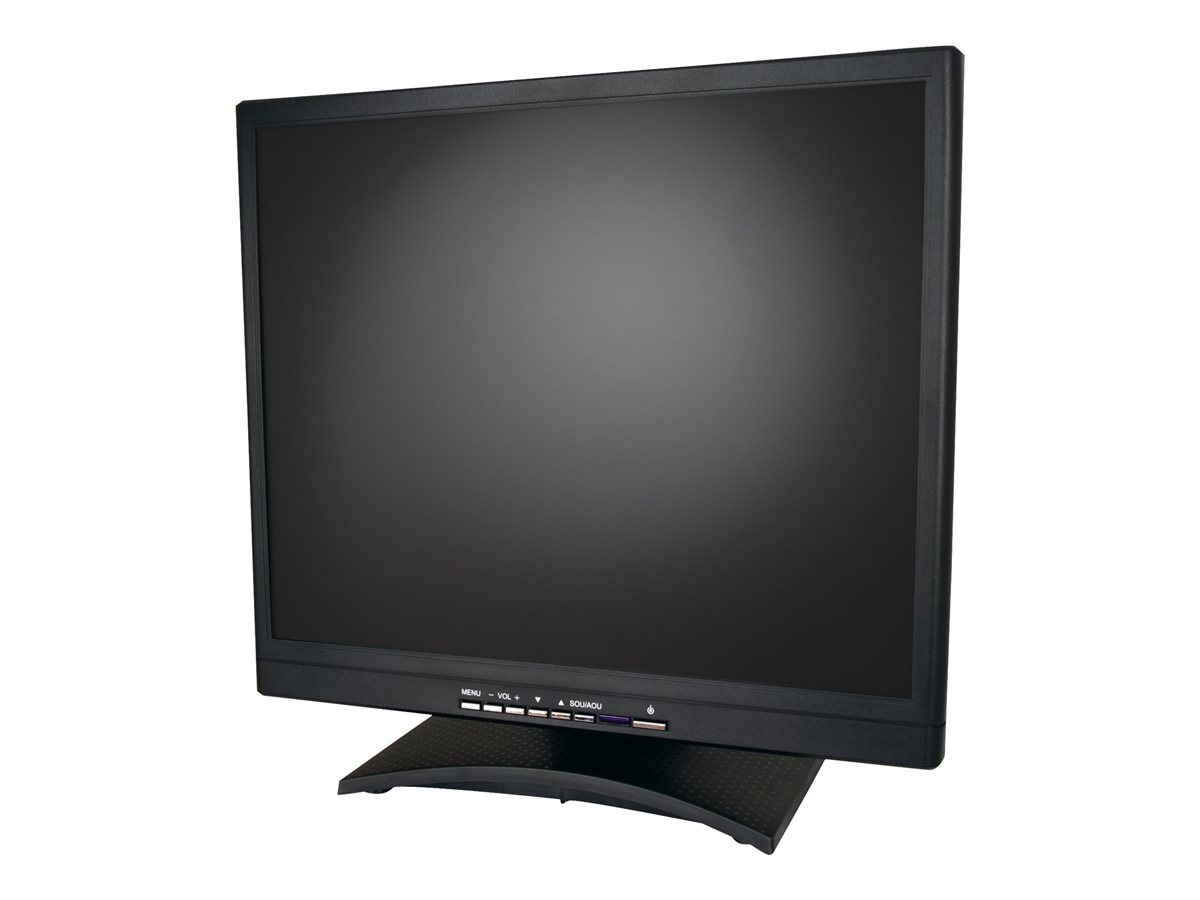

LCD display - color - 17"
| Main Specifications | |
|---|---|
| Product Description | Speco M17VLED LCD display |
| Type | LCD display |
| Recommended Use | Surveillance system |
| Supported Image Aspect Ratio | 4:3 |
| Color Support | Color |
| Display Size | 17" |
| Resolution | 1280 x 1024 |
| LCD Technology | TFT active matrix |
| Image Brightness | 290 cd/m² |
| Supported Video Signals | S-Video, composite video, VGA |
| Built-in Speakers | 2 speakers |
| Features | Picture-in-picture (PIP), LED backlight |
| Kit Content | 1 x power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption | 25 Watt |
| Manufacturer Warranty | 1 year |
| General | |
| Type | LCD display |
| Width | 14.6 in |
| Height | 13.9 in |
| Weight | 7.05 lbs |
| Manufacturer Warranty | |
| Warranty | 1 year |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 25 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 85% |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Studio & Field Monitors | |
| Recommended Use | Surveillance system |
| Supported Image Aspect Ratio | 4:3 |
| Color Support | Color |
| Display Size | 17" |
| Native Resolution | 1280 x 1024 |
| LCD Technology | TFT active matrix |
| Image Brightness | 290 cd/m² |
| Built-in Speakers | 2 speakers |
| Features | Picture-in-picture (PIP), LED backlight |
| Terminals | |
| Terminals | (1) x composite video input - BNC ¦ (1) x composite video output - BNC ¦ (1) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x S-video input - 4 pin mini-DIN ¦ (2) x audio line-in - RCA x 2 ¦ (1) x audio line-in - mini-phone stereo 3.5 mm |
| CCTV | |
| Equipment Category | CCTV monitors |
| Supported Video Signals | S-Video, composite video, VGA |
| Audio Support | Yes |
