Wireless router 4-port switch - 1GbE - Wi-Fi 5 - Dual Band - wall-mountable
| Main Specifications | |
|---|---|

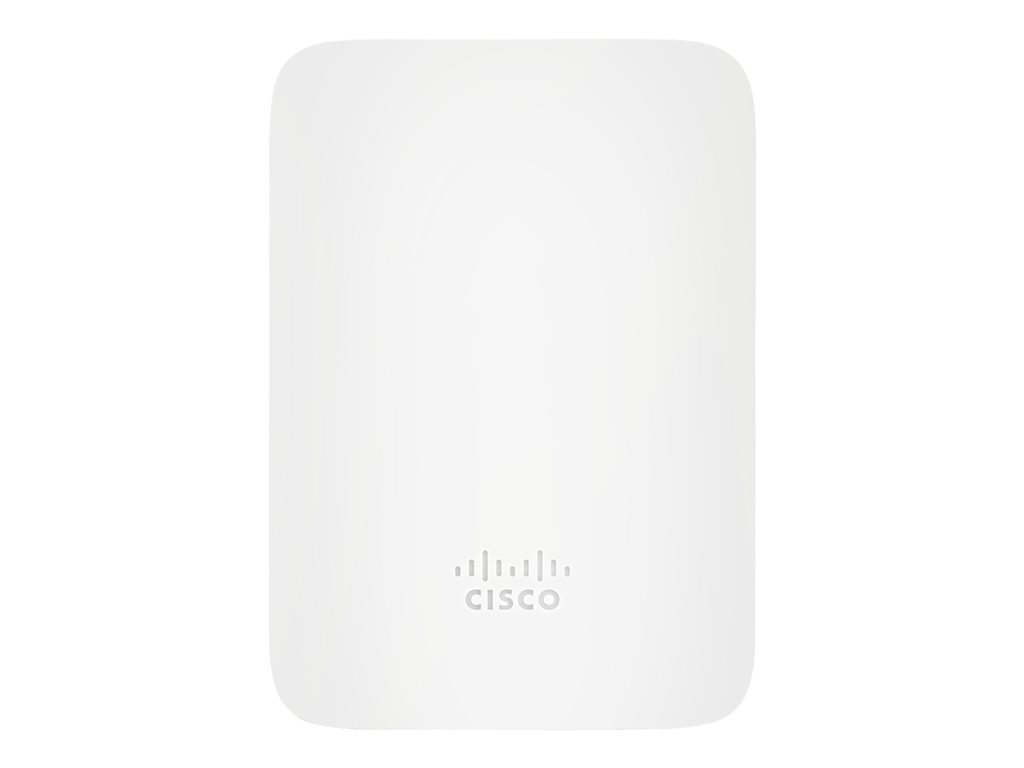

| Product Description | Cisco Meraki MR30H Cloud Managed - wireless router - Bluetooth, Wi-Fi 5 - wall-mountable |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Wall-mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | IPSec |
| Features | WIDS, QoS, 2T2R MIMO technology, MRC, WIPS, 802.1x authentication, MU-MIMO technology, beamforming technology, SU-MIMO technology |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Dimensions (WxDxH) | 6.1 in x 4.3 in x 0.9 in |
| Weight | 14.43 oz |
| Localization | Australia, Asia, United Kingdom, United States, Europe |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | IPSec |
| Encryption Algorithm | AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP) |
| Features | WIDS, QoS, 2T2R MIMO technology, MRC, WIPS, 802.1x authentication, MU-MIMO technology, beamforming technology, SU-MIMO technology |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Status Indicators | Power, status |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Security screw, concealed mount plate |
| Mounting Kit | Included |
| Localization | Australia, Asia, United Kingdom, United States, Europe |
| Power | |
| Power Consumption Operational | 25 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.1 in |
| Depth | 4.3 in |
| Height | 0.9 in |
| Weight | 14.43 oz |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Line Properties | |
| Line Coding Format | 256 QAM |
