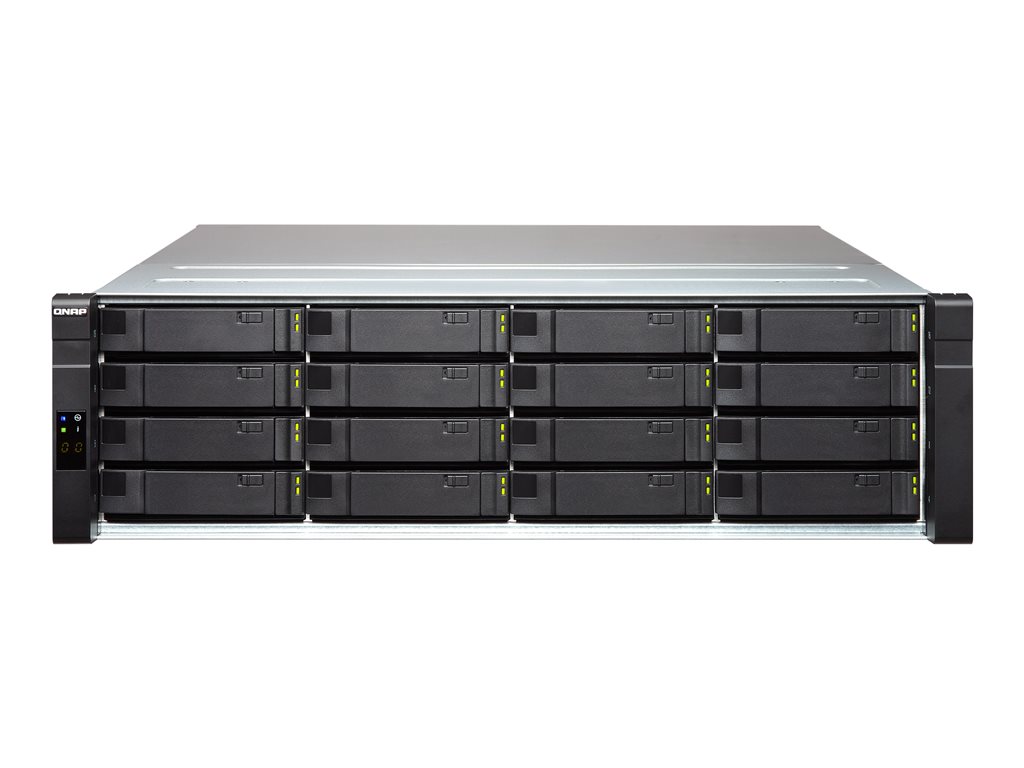

Storage enclosure - 16 bays (SAS-3) - rack-mountable - 3U
| Main Specifications | |
|---|---|
| Product Description | QNAP EJ1600 v2 - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 3U |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Supported Drives | SAS-3 |
| Localization | United States |
| Built-in Devices | LED panel |
| Hard Drive | No HDD |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 24.3 in x 5.2 in |
| Weight | 53.15 lbs |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 3U |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 2 x SAS 6Gb/s (input) - 36 pin 4x Mini SAS HD (SFF-8644) ¦ 2 x SAS 6Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644) ¦ 4 x serial (management) - 9 pin D-Sub (DB-9) ¦ 2 x SAS 6Gb/s (reserved) - 36 pin 4x Mini SAS HD (SFF-8644) |
| Miscellaneous | |
| Features | Hot-swappable fans, lockable tray |
| Cables Included | 1 x SAS cable - 1.6 ft |
| Compliant Standards | FCC Class A certified, VCCI, BSMI, EN 60950, EN55022, EN55024, CB, ISO 7779, LVD |
| Included Accessories | Rail kit, screws |
| Processor | |
| CPU | No CPU |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Consumption Operational | 344.19 watt |
| Power Provided | 450 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 53.5 dB |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 24.3 in |
| Height | 5.2 in |
| Weight | 53.15 lbs |
| Chassis | |
| Built-in Devices | LED panel |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SAS-3 |
