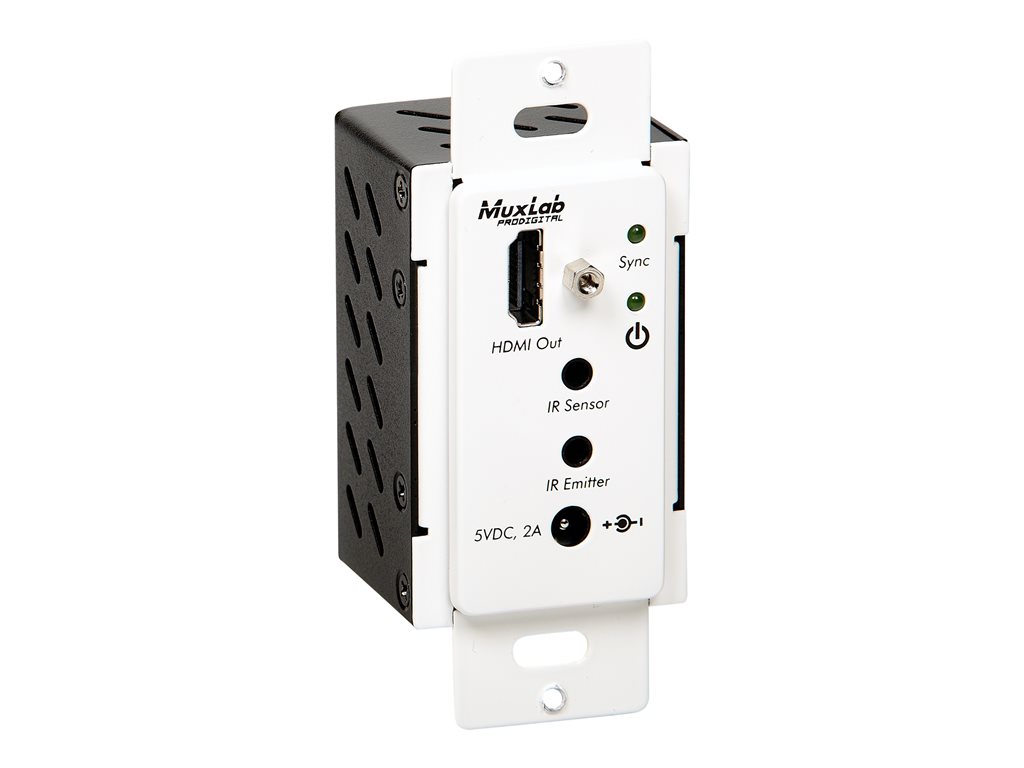

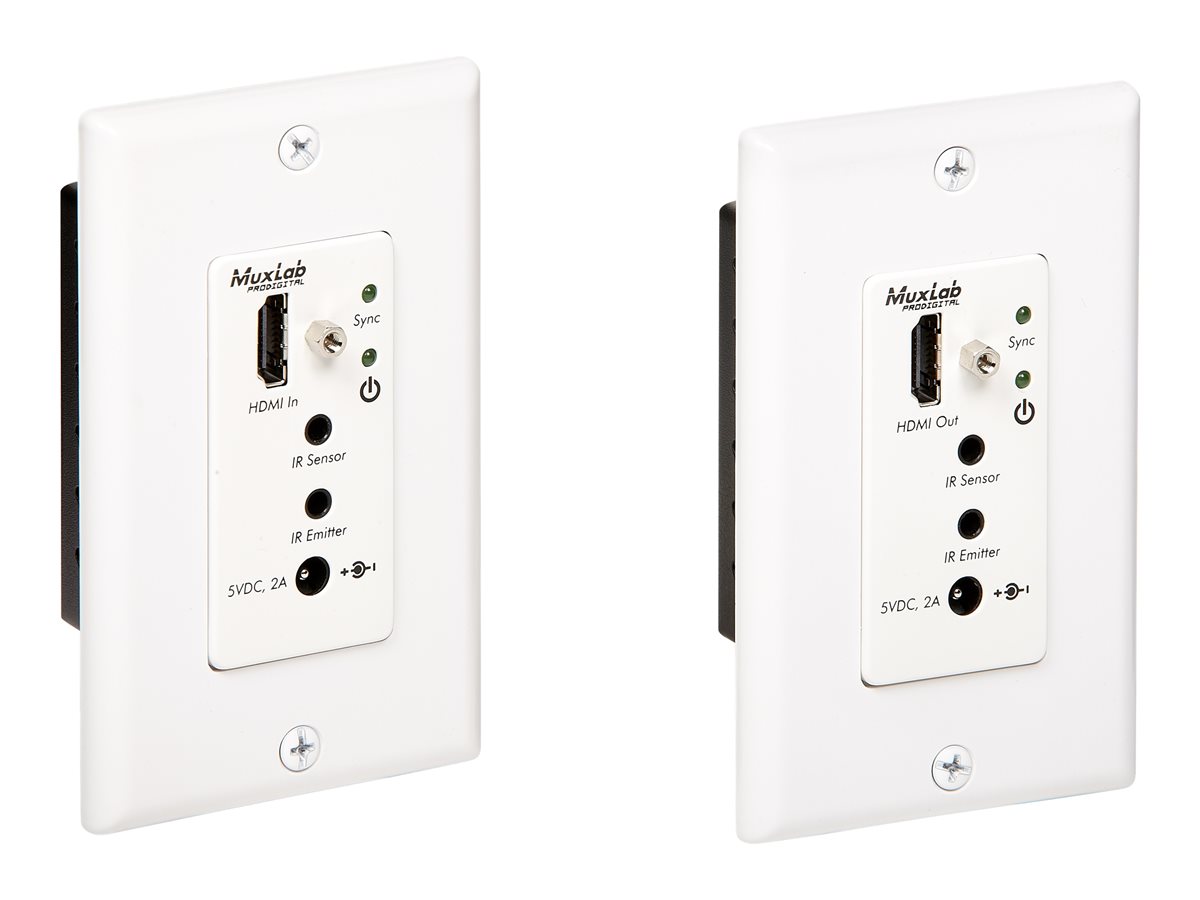

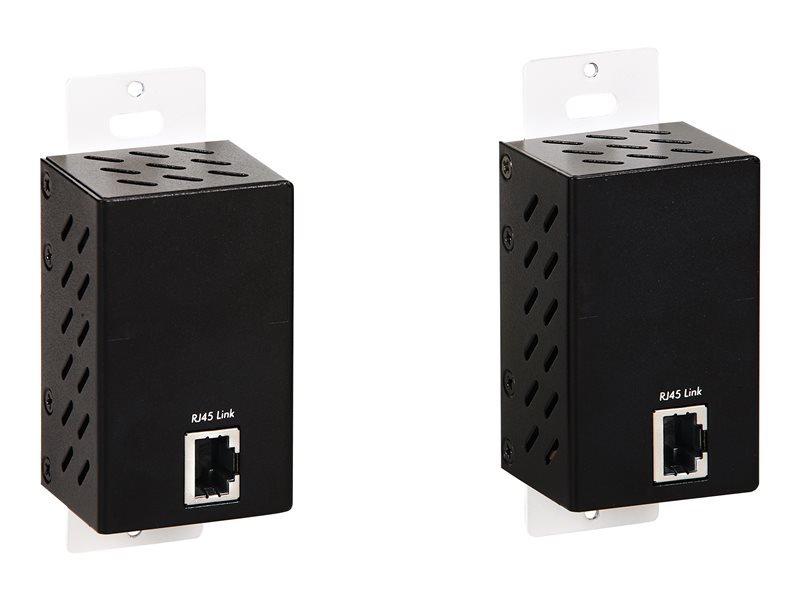

Video/audio/infrared extender - HDBaseT, HDMI, infrared - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | MuxLab Prodigital HDMI Wall-Plate Extender Kit (Transmitter & Receiver) - video/audio/infrared extender - HDBaseT, HDMI, infrared |
| Device Type | Video/audio/infrared extender |
| Form Factor | In-wall mountable |
| Data Link Protocol | HDBaseT, HDMI, infrared |
| Max Transfer Distance | 230 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 1.7 in x 1.5 in x 4.3 in |
| Weight | 24.69 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | In-wall mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - Type A ¦ 1 x IrDA (input) - mini jack ¦ 1 x IrDA (output) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT, HDMI, infrared |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 230 ft |
| Features | 4K resolution support, 1080p resolution support, 3D support |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 6 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 1.5 in |
| Height | 4.3 in |
| Weight | 24.69 oz |
