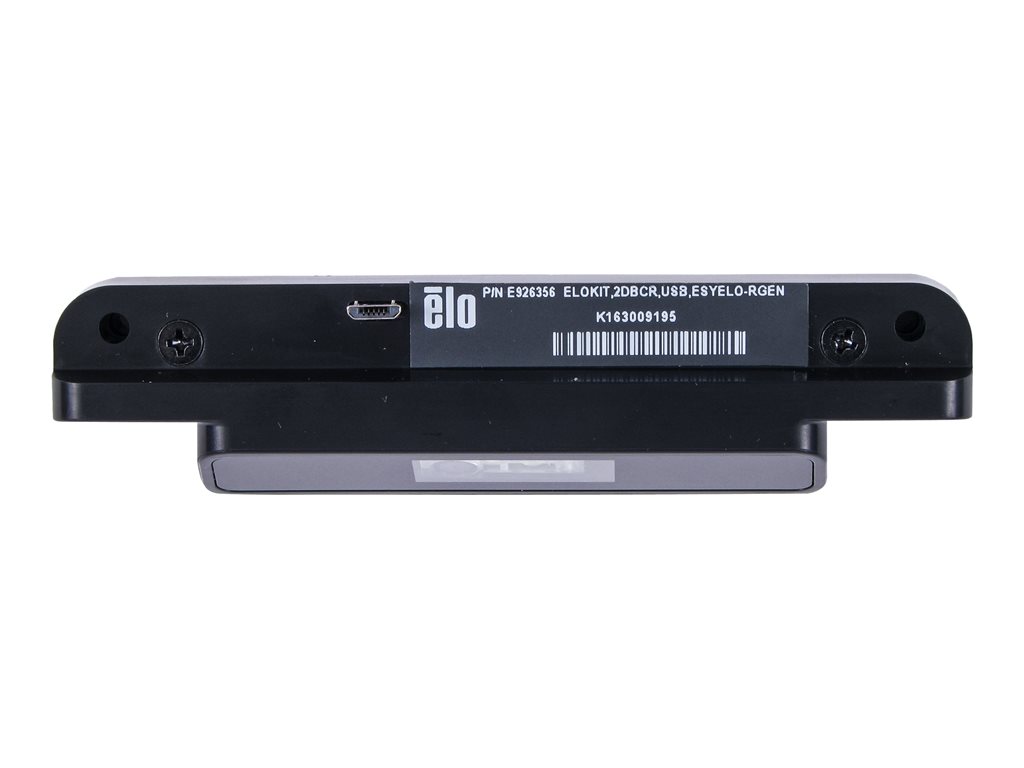

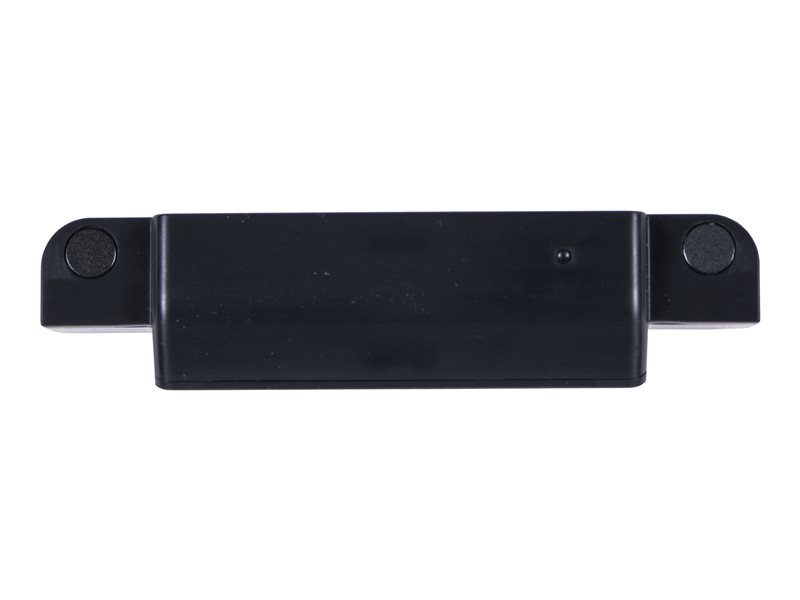

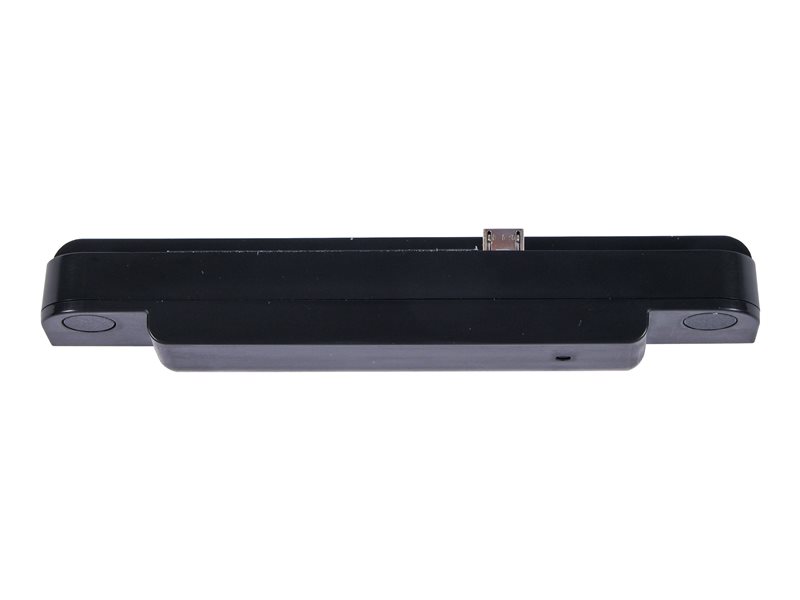

Barcode scanner - plug-in module - USB
| Main Specifications | |
|---|---|
| Product Description | Elo 2D Barcode Scanner - barcode scanner |
| Type | Barcode scanner - plug-in module - stationary - USB |
| Color | Black |
| Localization | Worldwide |
| Scan Element Type | CMOS |
| Sensor Resolution | 640 x 480 |
| Connectivity Technology | Wired |
| Power | DC 5 V |
| System Requirements | Android 4.0 or later, Microsoft Windows 7 / 8 / 10 |
| Dimensions (WxDxH) | 4.7 in x 1.1 in x 0.6 in |
| Weight | 1.06 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - plug-in module - stationary |
| Color | Black |
| Localization | Worldwide |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

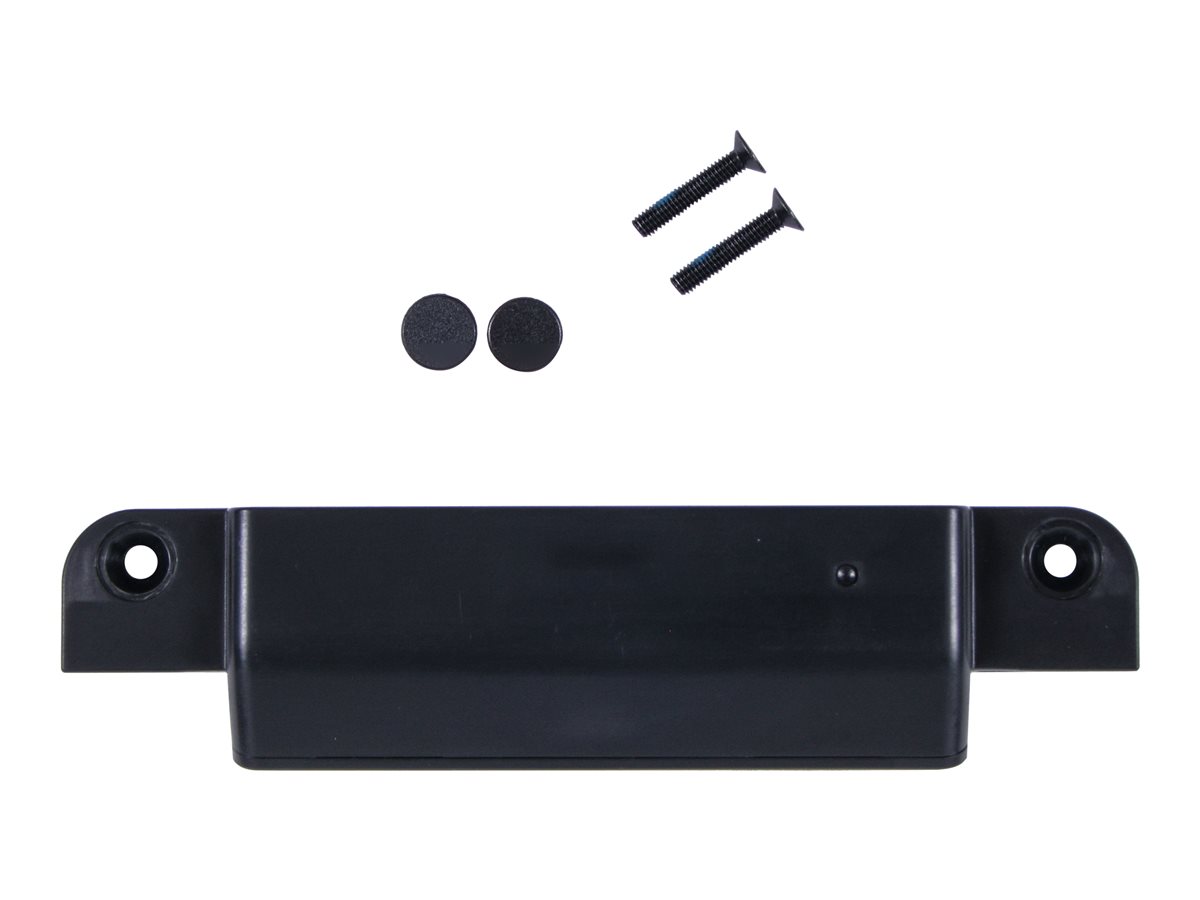

| Included Accessories | Mounting kit |
| Power | |
| Power Device | No power supply |
| Voltage | DC 5 V |
| Electric Current Required | 220 mA (operating), 65 mA (idle), 2.5 mA (standby) |
| System Requirements | |
| OS Required | Android 4.0 or later, Microsoft Windows 7 / 8 / 10 |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 1.1 in |
| Height | 0.6 in |
| Weight | 1.06 oz |
| Barcode | |
| Interface Type | USB |
| Scan Element Type | CMOS |
| Sensor Resolution | 640 x 480 |
| Scan Mode | Fixed projection |
| Max Working Distance | 6 in |
| Skew (Degrees) | 37.8 |
| Pitch (Degrees) | 28.8 |
| Decode Capability | Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, Code 93i, Australian Post, Aztec code, British Post, Canadian Post, China Han Xin Code, China Post, Codablock A, Codablock F, Data Matrix, EAN/JAN-13, EAN/JAN-8, EAN-UCC Composite, GS1 DataBar, IATA 2 of 5, Interleaved 2 of 5, Japanese Post, Korea Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417, PLANET, Postnet, QR code, UPC-A, UPC-A/EAN-13 with Extended Coupon Code, UPC-E |
| Connectivity Technology | Wired |
| OK Notification | Beeper |
