VoIP gateway - 1GbE - 1U - with 2 DSP modules
| Main Specifications | |
|---|---|

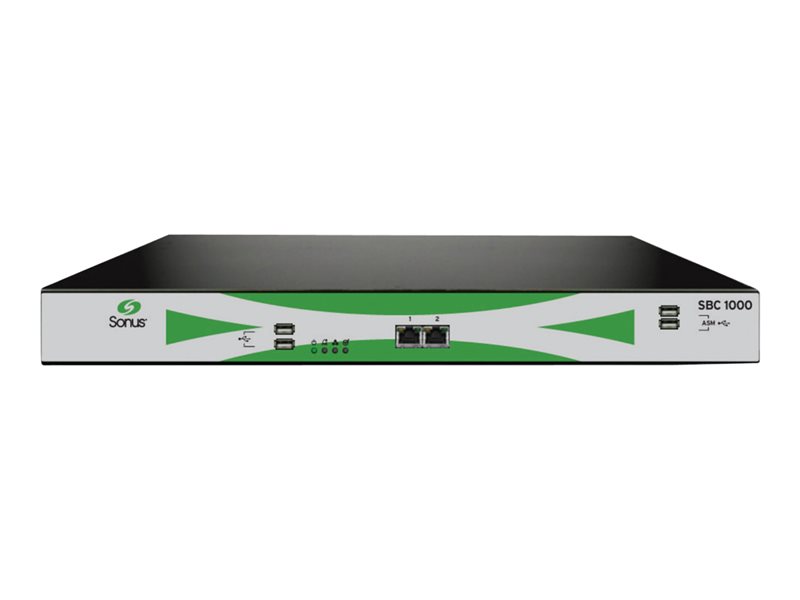

| Product Description | Sonus SBC 1000 - VoIP gateway - with 2 DSP modules |
| Device Type | VoIP gateway |
| Form Factor | External - 1U |
| Processor | 1 x Intel Celeron 1.8 GHz |
| RAM | 4 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number of concurrent calls: 160 ¦ Maximum number TDM to SIP calls: 84 ¦ Maximum number SIP to SIP calls: 160 ¦ Maximum number of transcoded sessions: 120 ¦ Maximum number of registered users: 600 ¦ Maximum number of TLS sessions: 160 ¦ Maximum number of SRTP sessions: 160 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 1000 |
| VoIP Protocols | SIP, RTCP, RTP, SRTP |
| Telephony Interfaces | 4 phone (FXS), 1 phone (ISDN PRI) |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 12 in x 1.7 in |
| Bundled with | 2 DSP modules |
| General | |
| Device Type | VoIP gateway |
| Height (Rack Units) | 1U |
| Width | 17.5 in |
| Depth | 12 in |
| Height | 1.7 in |
| Bundled with | 2 DSP modules |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 2.0 - Type A ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x ISDN PRI ¦ 4 x FXS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Line Rate | T-1/E-1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, IPSec, DNS, RTP, RTCP |
| Routing Protocol | OSPF, RIP |
| Remote Management Protocol | SNMP 2, SNMP 2c, HTTP, HTTPS |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number of concurrent calls: 160 ¦ Maximum number TDM to SIP calls: 84 ¦ Maximum number SIP to SIP calls: 160 ¦ Maximum number of transcoded sessions: 120 ¦ Maximum number of registered users: 600 ¦ Maximum number of TLS sessions: 160 ¦ Maximum number of SRTP sessions: 160 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 1000 |
| Status Indicators | Power, alarm, peer node, ready |
| Features | Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), Syslog support, DoS attack prevention, DiffServ support, manageable, DDos attack prevention, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, bandwidth control, DHCP client, optimized for Microsoft Lync, NTP time synchronization, Call Admission Control (CAC), DiffServ Code Point (DSCP) support |
| Encryption Algorithm | TLS |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 144 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Celeron 1.8 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB DDR3 SDRAM |
| IP Telephony | |
| VoIP Protocols | SIP, RTCP, RTP, SRTP |
| Voice Codecs | G.711, G.723.1, G.729ab, G.726, T.38 |
| Telephony Interfaces | 4 phone (FXS), 1 phone (ISDN PRI) |
| IP Telephony Features | Comfort noise generation (CNG), voice activity detection (VAD), echo cancellation (G.168), call forwarding, caller ID, call hold, call transfer, DTMF generation/detection, Calling Line Identification Presentation (CLIP), Dialed Number Identification Service (DNIS) |
