VoIP gateway - 1GbE - 1U
| Main Specifications | |
|---|---|

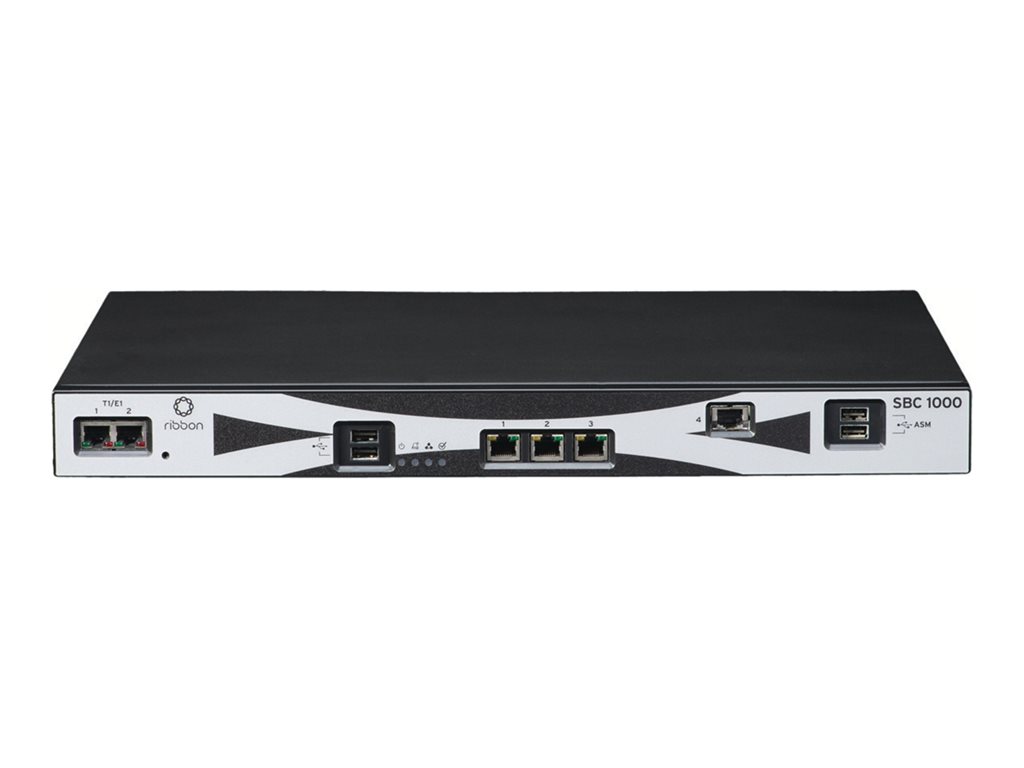

| Product Description | Sonus SBC 1000 - VoIP gateway |
| Device Type | VoIP gateway |
| Form Factor | External - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number TDM to SIP calls: 128 ¦ Maximum number of concurrent calls: 192 ¦ Maximum number of TLS sessions: 192 ¦ Maximum number of SRTP sessions: 128 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 1000 ¦ Maximum PRI ports (upgradable): 2 |
| VoIP Protocols | SIP, RTP, RTCP, SRTP |
| Telephony Interfaces | 4 phone (ISDN PRI) |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 12 in x 1.7 in |
| General | |
| Device Type | VoIP gateway |
| Height (Rack Units) | 1U |
| Width | 17.5 in |
| Depth | 12 in |
| Height | 1.7 in |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 2.0 - Type A ¦ 3 x 1000Base-T - RJ-45 (WAN / LAN) ¦ 4 x ISDN PRI |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Line Rate | T-1/E-1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | NTP, RTCP, RTP, TCP/IP, UDP/IP, DNS, IPSec |
| Routing Protocol | RIP-2, OSPF |
| Remote Management Protocol | SNMP 2c, HTTPS, SNMP 3 |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number TDM to SIP calls: 128 ¦ Maximum number of concurrent calls: 192 ¦ Maximum number of TLS sessions: 192 ¦ Maximum number of SRTP sessions: 128 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 1000 ¦ Maximum PRI ports (upgradable): 2 |
| Status Indicators | Power, alarm, peer node, ready |
| Features | IPv4 support, IPv6 support, DHCP server, DHCP client, firewall protection, DoS attack prevention, DDos attack prevention, Access Control List (ACL) support, NAT support, NAPT support, Quality of Service (QoS), bandwidth control, Call Admission Control (CAC), DiffServ support, DiffServ Code Point (DSCP) support, NTP time synchronization, manageable, Syslog support, optimized for Microsoft Lync, auto-uplink (auto MDI/MDI-X), Session Border Control (SBC), LED status indicators |
| Encryption Algorithm | TLS |
| Authentication Method | RADIUS |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| IP Telephony | |
| VoIP Protocols | SIP, RTP, RTCP, SRTP |
| Voice Codecs | G.711, G.722, G.722.2, G.723.1, G.726, G.729ab, T.38 |
| Telephony Interfaces | 4 phone (ISDN PRI) |
| IP Telephony Features | DTMF generation/detection, voice activity detection (VAD), echo cancellation (G.168), comfort noise generation (CNG), call hold, caller ID, call forwarding, call transfer, Dialed Number Identification Service (DNIS) |
