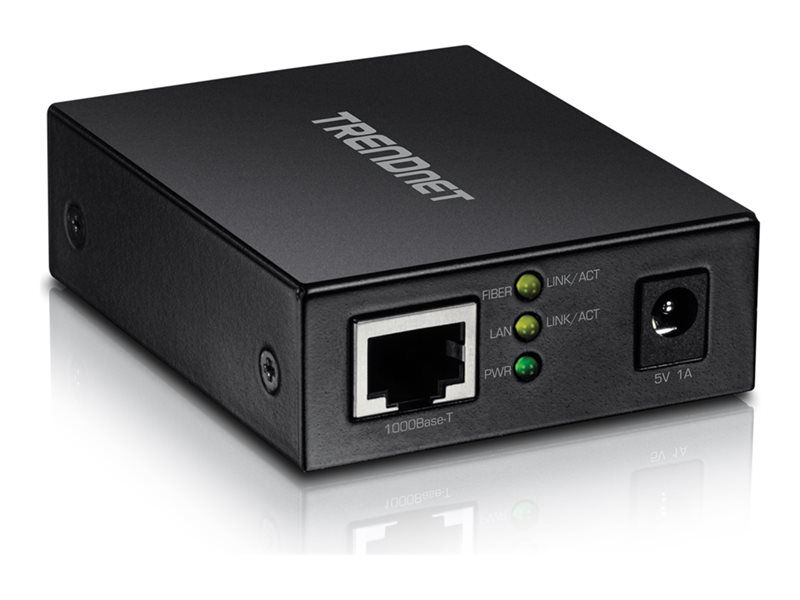

Fiber media converter - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-LX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TFC GSFP - fiber media converter - 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-LX, 1000Base-T |
| Data Link Protocol | 1GbE |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 2.4 in x 3 in x 0.5 in |
| Weight | 5.5 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX/1000Base-SX - SFP ¦ 1 x Ethernet 1000Base-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-LX, 1000Base-T |
| Data Link Protocol | 1GbE |

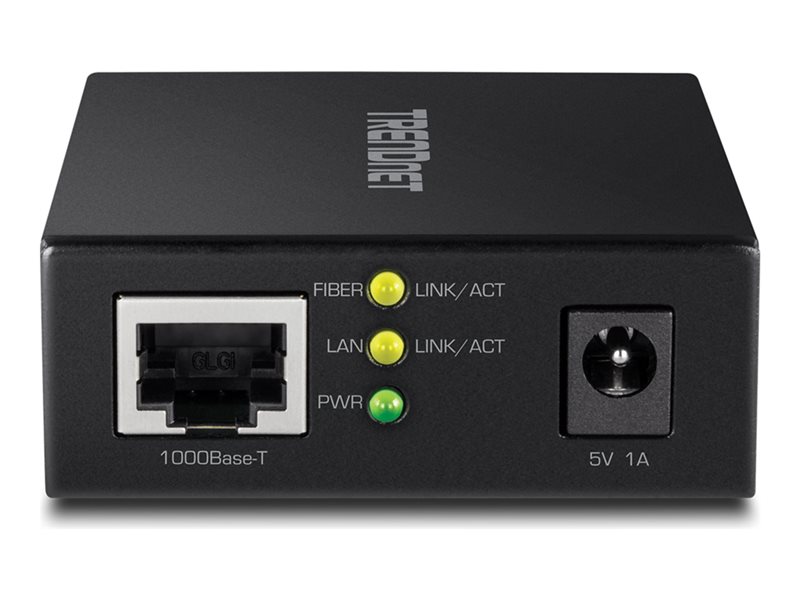

| Status Indicators | Link/activity, power |
| Features | Auto-uplink (auto MDI/MDI-X), full duplex mode, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 3 in |
| Height | 0.5 in |
| Weight | 5.5 oz |
