Tap splitter - 25GbE, 40GbE, 100GbE
| Main Specifications | |
|---|---|

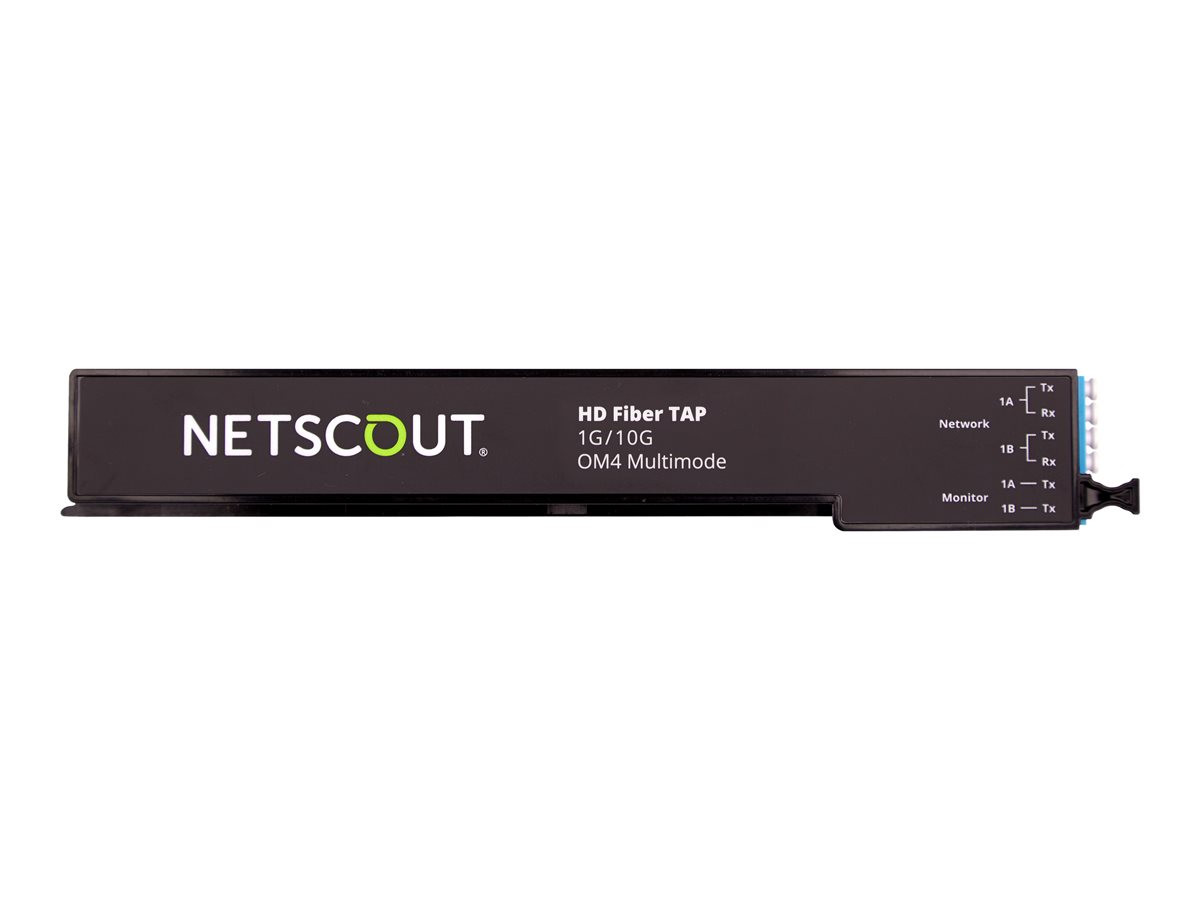

| Product Description | NetScout HD Fiber TAP - tap splitter - 1GbE, 10GbE, 25GbE, 40GbE, 100GbE |
| Device Type | Tap splitter |
| Form Factor | Plug-in module |
| Data Link Protocol | 1GbE, 10GbE, 25GbE, 40GbE, 100GbE |
| Dimensions (WxDxH) | 0.7 in x 10 in x 1.6 in |
| Weight | 2.82 oz |
| General | |
| Device Type | Tap splitter |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Gb Ethernet - LC multi-mode female x 2 ¦ 1 x 100Gb Ethernet (monitoring) - LC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | OM4 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE, 10GbE, 25GbE, 40GbE, 100GbE |
| Features | 50:50 split ratio |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 10 in |
| Height | 1.6 in |
| Weight | 2.82 oz |
