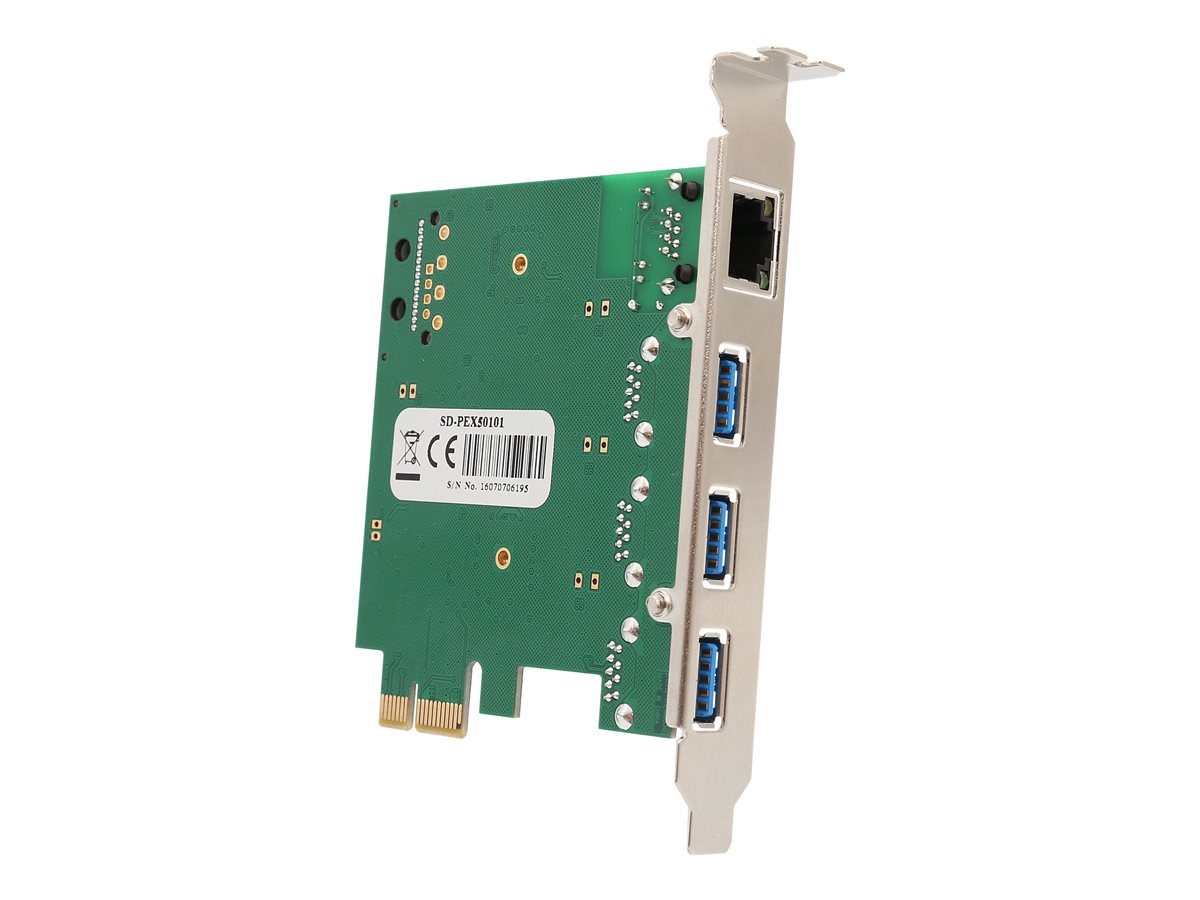

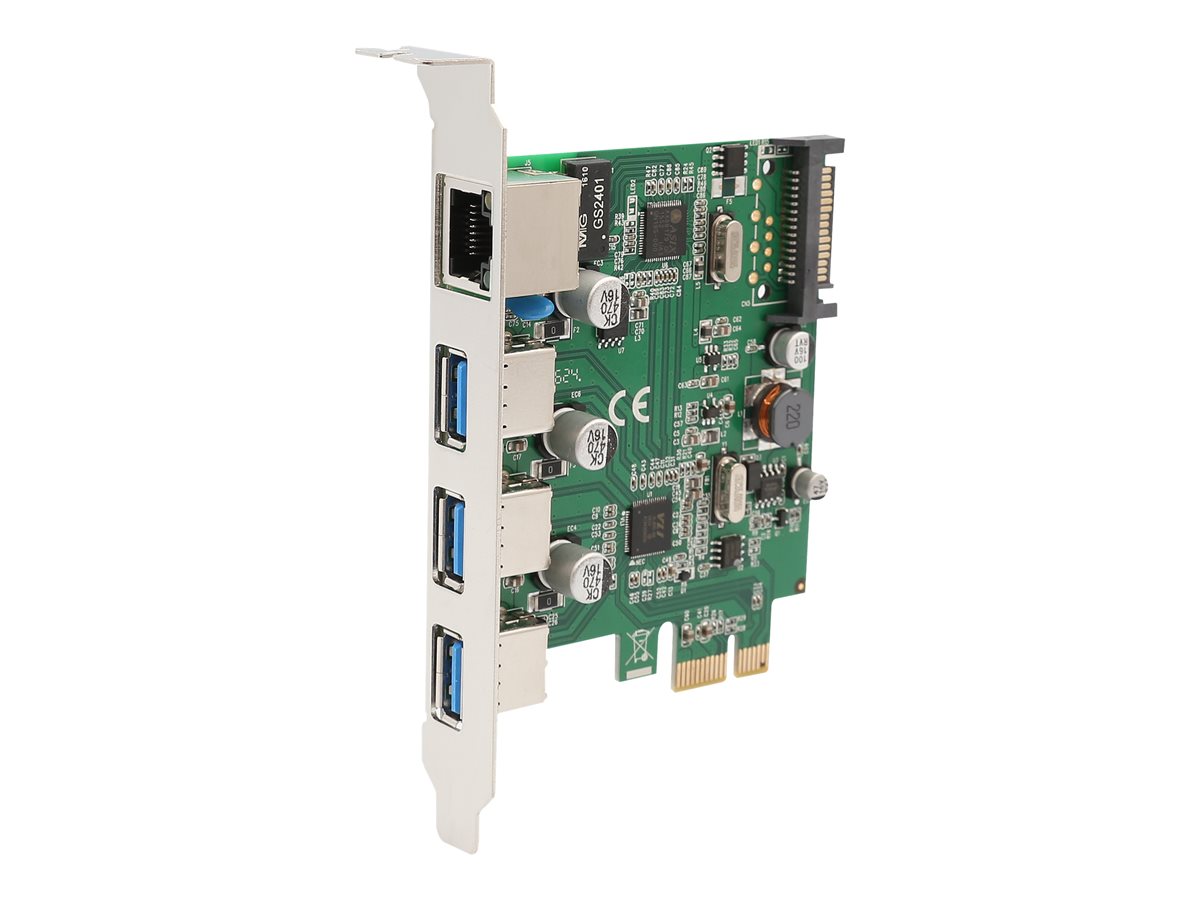

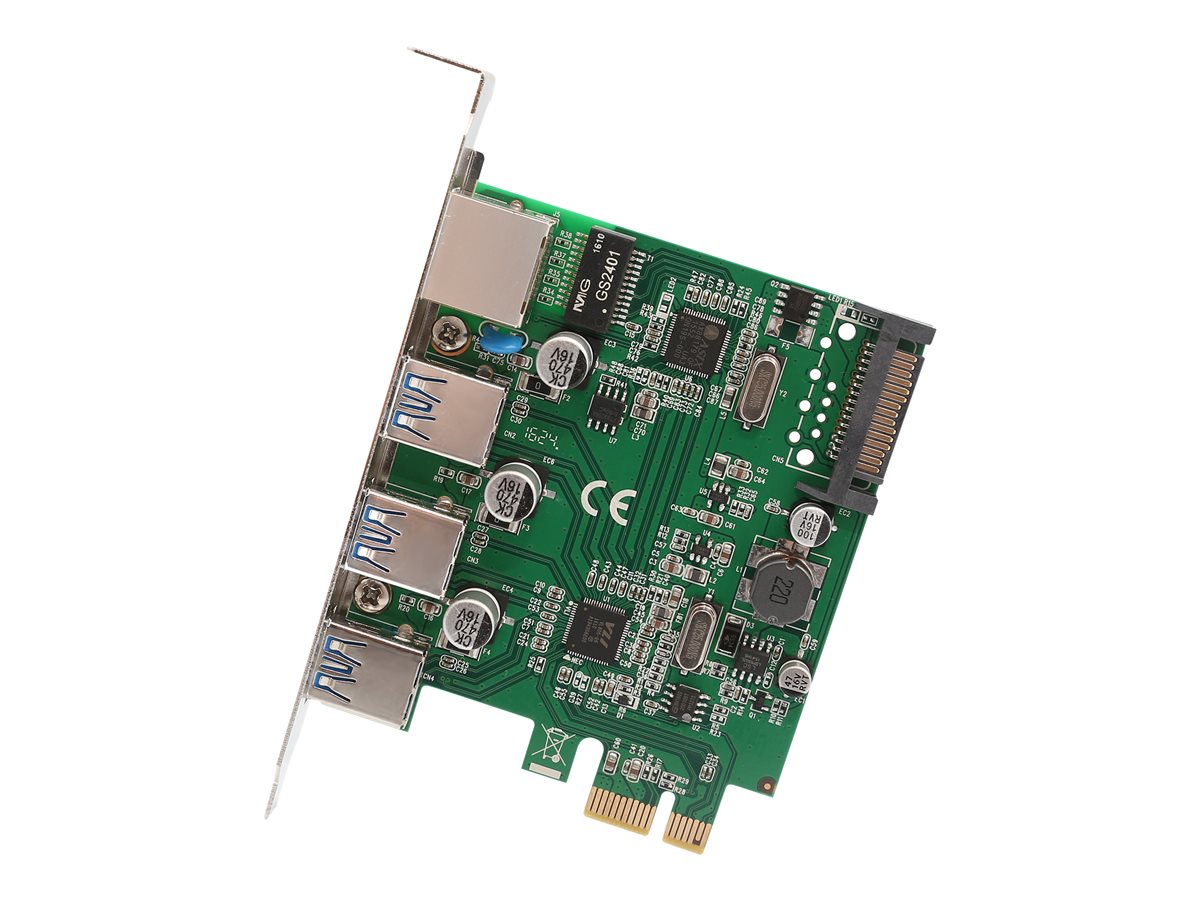

Network / USB adapter - PCIe 2.0 - Gigabit Ethernet x 1 + USB 3.1 Gen 1 x 3
| Main Specifications | |
|---|---|
| Product Description | Syba SD-PEX50100 - network / USB adapter - PCIe 2.0 - Gigabit Ethernet x 1 + USB 3.1 Gen 1 x 3 |
| Device Type | Network / USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | Gigabit Ethernet x 1 + USB 3.1 Gen 1 x 3 |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, USB 3.1 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Processor | VL805-Q6 / AX88179 |
| Compliant Standards | xHCI, IEEE 802.3x, USB 3.1 Gen 1, USB 2.0 |
| General | |
| Device Type | Network / USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |

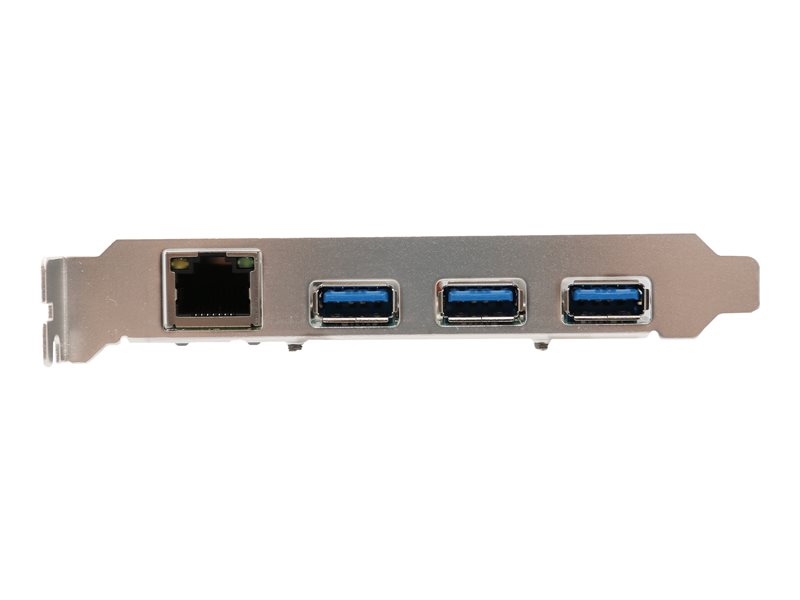

| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 3 x USB 3.1 Gen 1 - 9 pin USB Type A |
| Miscellaneous | |
| Compliant Standards | UASP (USB Attached SCSI Protocol) |
| Networking | |
| Ports | Gigabit Ethernet x 1 + USB 3.1 Gen 1 x 3 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, USB 3.1 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Status Indicators | Link/activity |
| Features | BOT mode, full duplex mode, half duplex mode, 4 KB Jumbo Frame, EEE |
| Compliant Standards | xHCI, IEEE 802.3x, USB 3.1 Gen 1, USB 2.0 |
| Processor / Memory | |
| Processor | VL805-Q6 / AX88179 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.5 in |
| Shipping Depth | 6.9 in |
| Shipping Height | 1.5 in |
| Shipping Weight | 4.8 oz |
