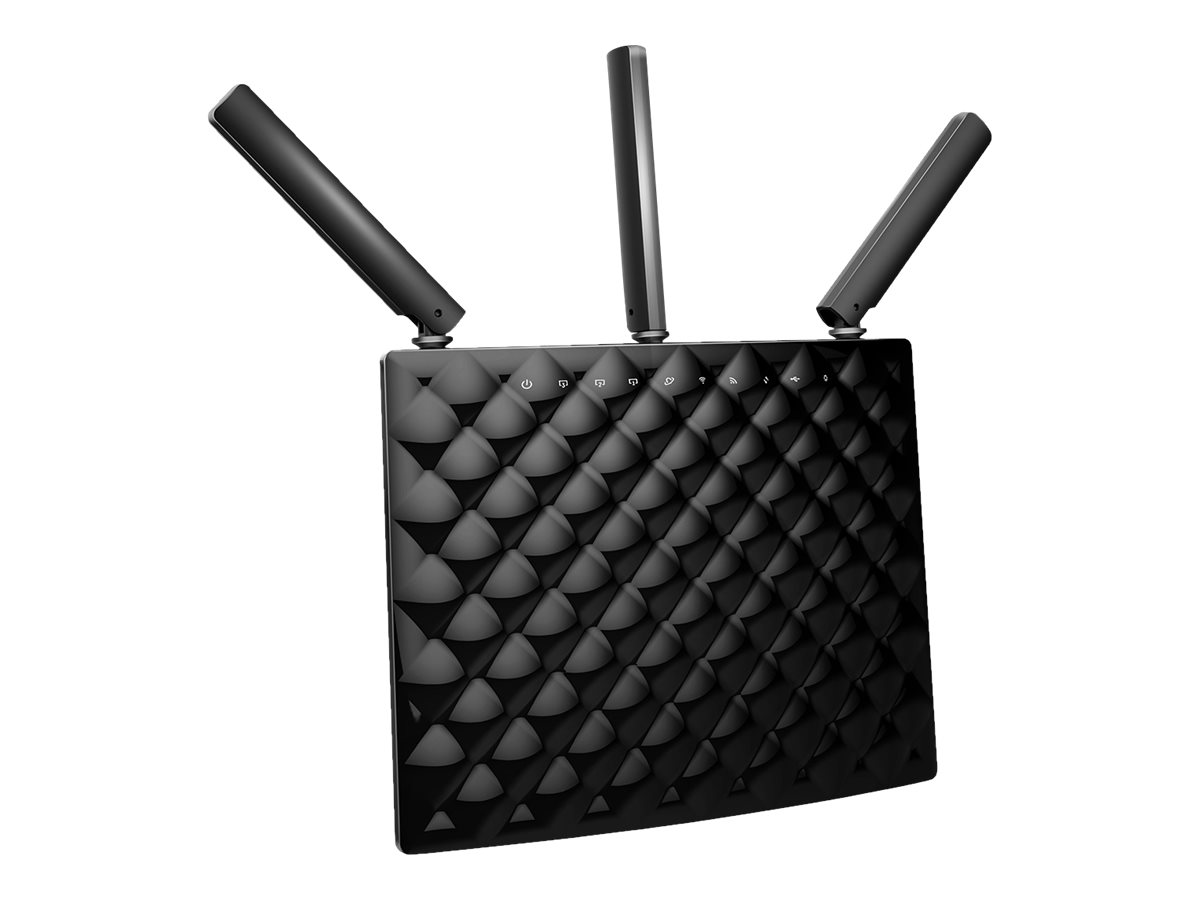

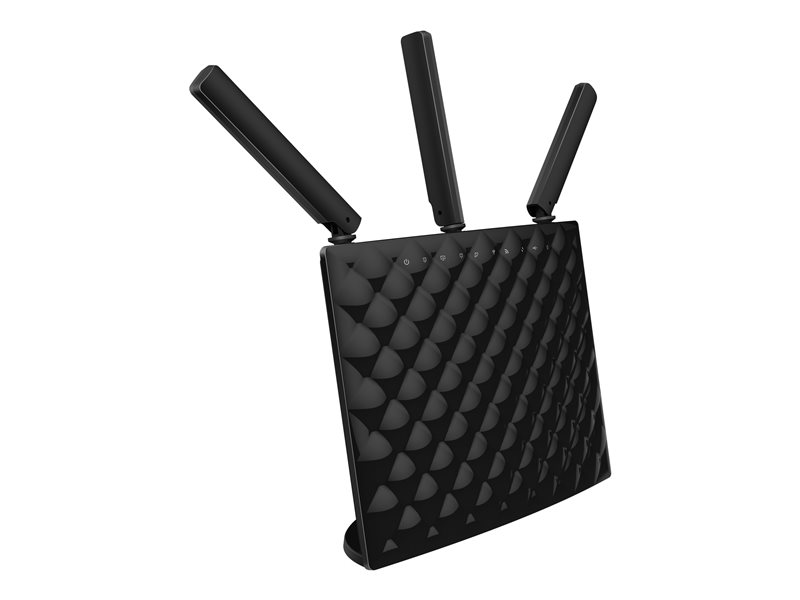

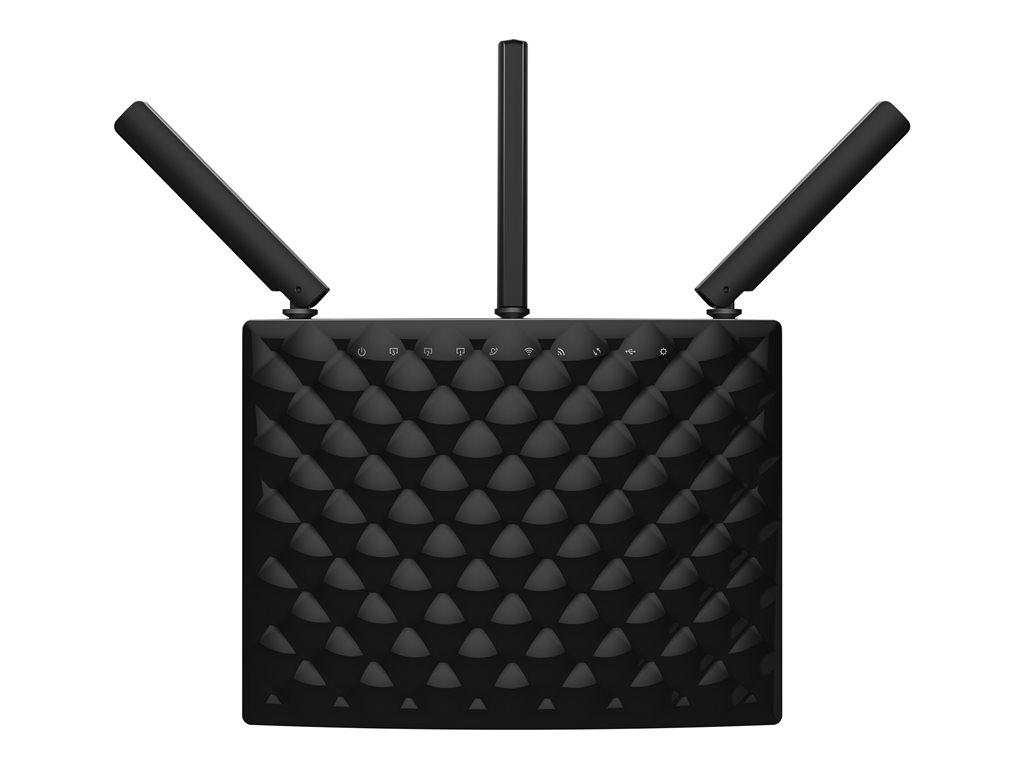

Wireless router 3-port switch - 1GbE - Wi-Fi 5 - Dual Band
| Main Specifications | |
|---|---|
| Product Description | Tenda AC15 - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1900 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE |
| Routing Protocol | Static IP routing |
| Features | Print server, VPN passthrough, WPS, IPSec passthrough, FTP server, cloud backup, PPTP passthrough, Beamforming+, L2TP passthrough |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.9 in x 7.1 in x 3 in |
| General | |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1900 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | Print server, VPN passthrough, WPS, IPSec passthrough, FTP server, cloud backup, PPTP passthrough, Beamforming+, L2TP passthrough |
| Compliant Standards | C-Tick, BSMI, IC, FCC, RoHS, EAC, NCC |
| RAM | DDR3 SDRAM |
| Status Indicators | Power, system, LAN, wireless, USB, WPS, Internet |
| Expansion / Connectivity | |

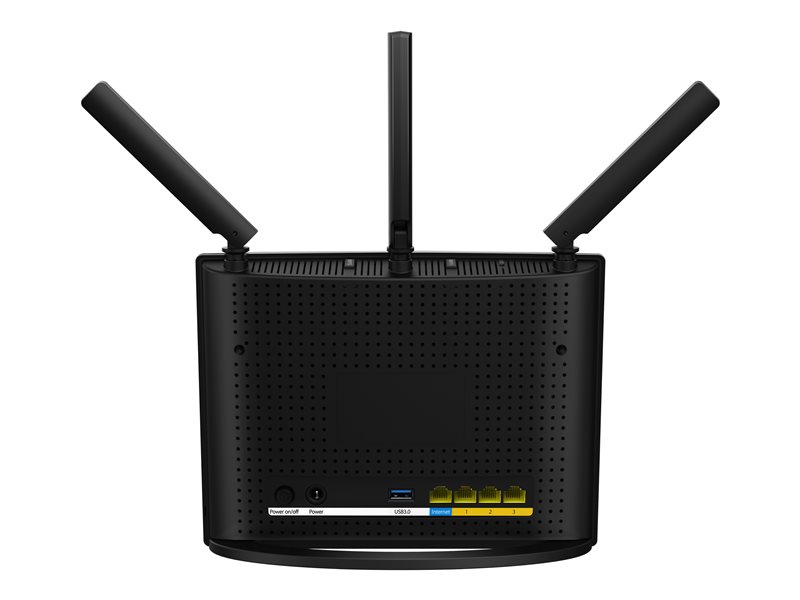

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.9 in |
| Depth | 7.1 in |
| Height | 3 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Gain Level | 3 dBi |
