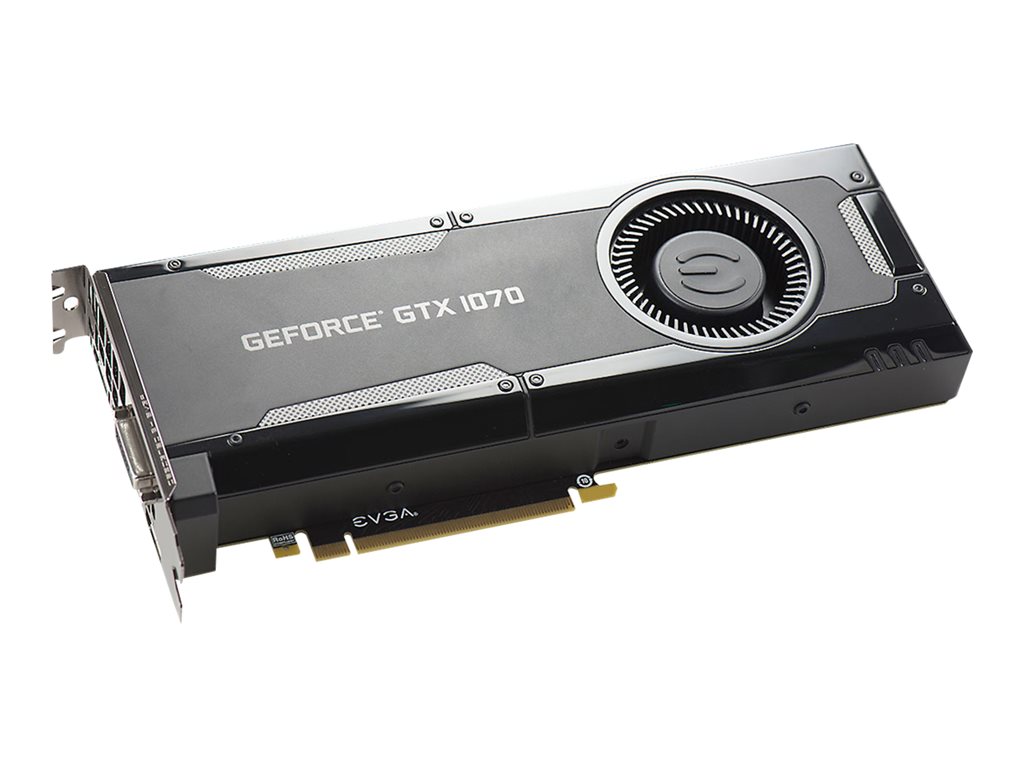

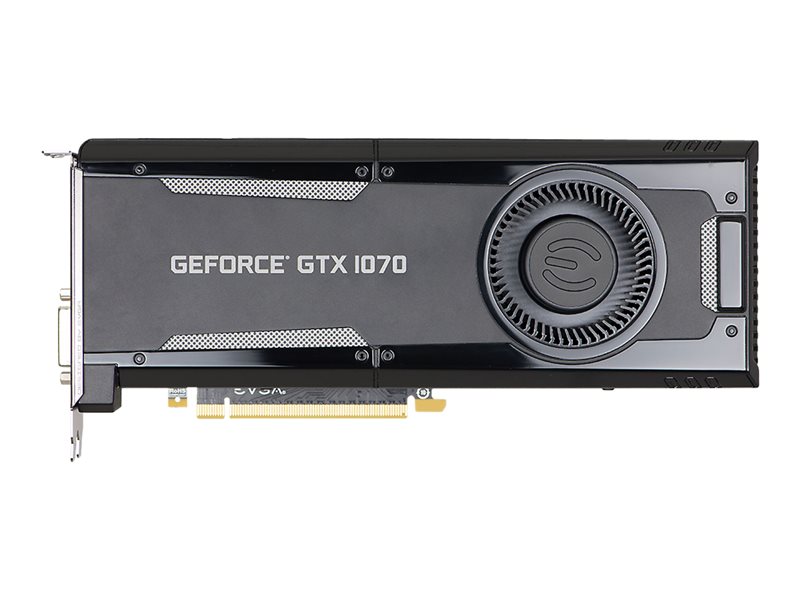

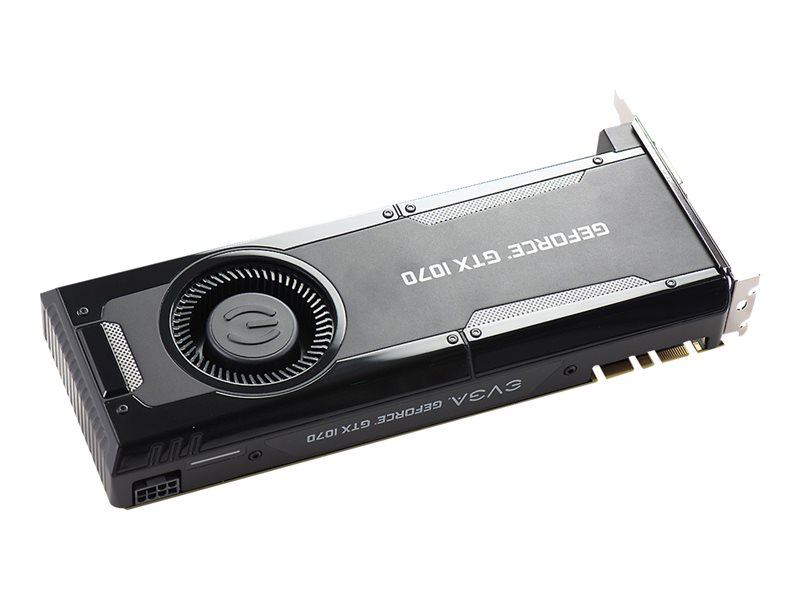

Graphics card - GF GTX 1070 - 8 GB GDDR5 - PCIe 3.0 x16 - DVI, HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | EVGA GeForce GTX 1070 GAMING - graphics card - GF GTX 1070 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GTX 1070 |
| Memory | 8 GB GDDR5 |
| Core Clock | 1506 MHz |
| Boost Clock | 1683 MHz |
| CUDA Cores | 1920 |
| Effective Memory Clock | 8000 MHz |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |

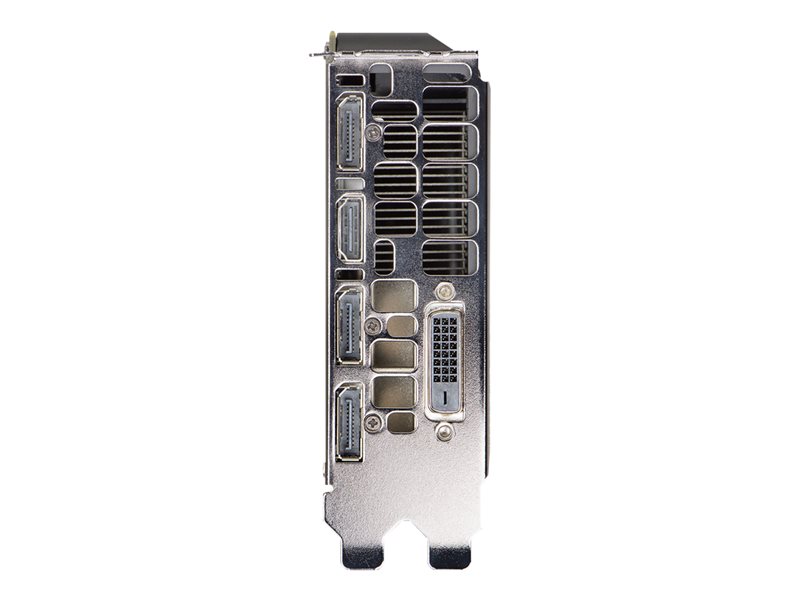

| Interfaces Details | DVI-D (dual link) ¦ 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan |
| Dimensions (WxDxH) | 10.5 in x 4.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GTX 1070 |
| Core Clock | 1506 MHz |
| Boost Clock | 1683 MHz |
| CUDA Cores | 1920 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 240 Hz |
| Interfaces Details | DVI-D (dual link) ¦ 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan |
| Features | NVIDIA G-Sync ready, NVIDIA GameStream, NVIDIA Dynamic Super Resolution technology, NVIDIA GameWorks, Nvidia GeForce GTX VR Ready, NVIDIA GPU Boost 3.0, 4+1 Phase Power Design, simultaneous multi-projection, NVIDIA Ansel, Nvidia SLI with HB Bridge Support, NVIDIA Pascal GPU technology |
| Memory | |
| Size | 8 GB |
| Technology | GDDR5 SDRAM |
| Effective Clock Speed | 8000 MHz |
| Bus Width | 256-bit |
| Bandwidth | 256.3 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 150 watt |
| Software Included | EVGA Precision X OC |
| Depth | 10.5 in |
| Height | 4.4 in |
| System Requirements | |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Required Power Supply | 500 W |
| Additional Requirements | Dual-width x16 graphics slot, 8 pin PCI Express power connector |
