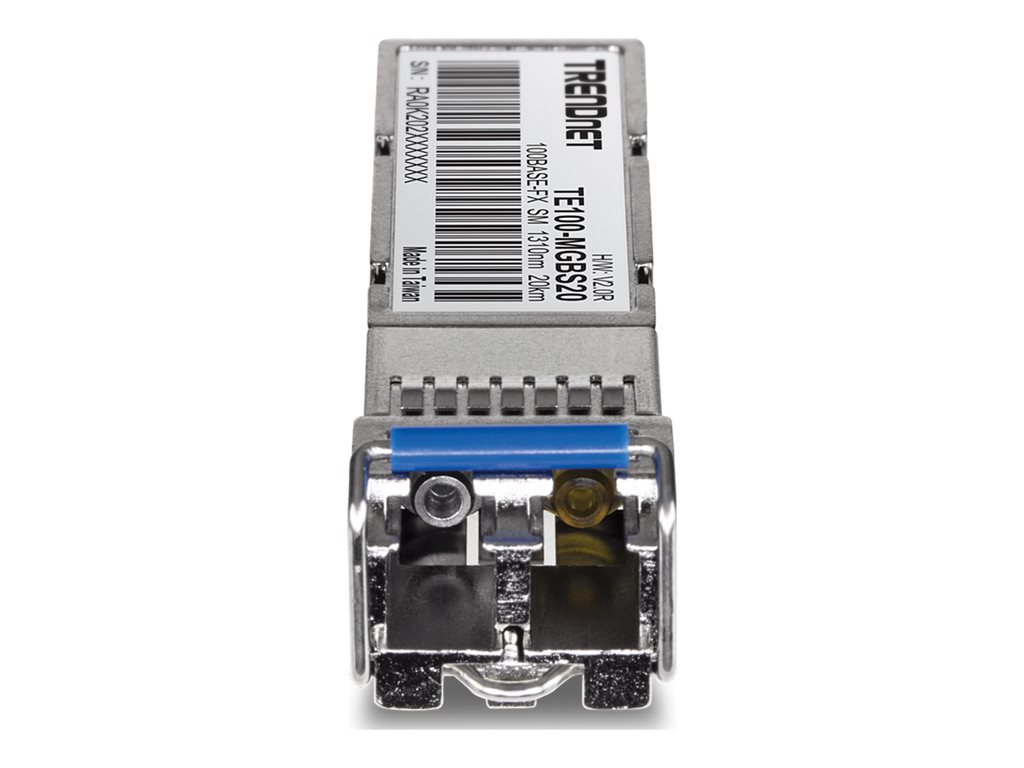

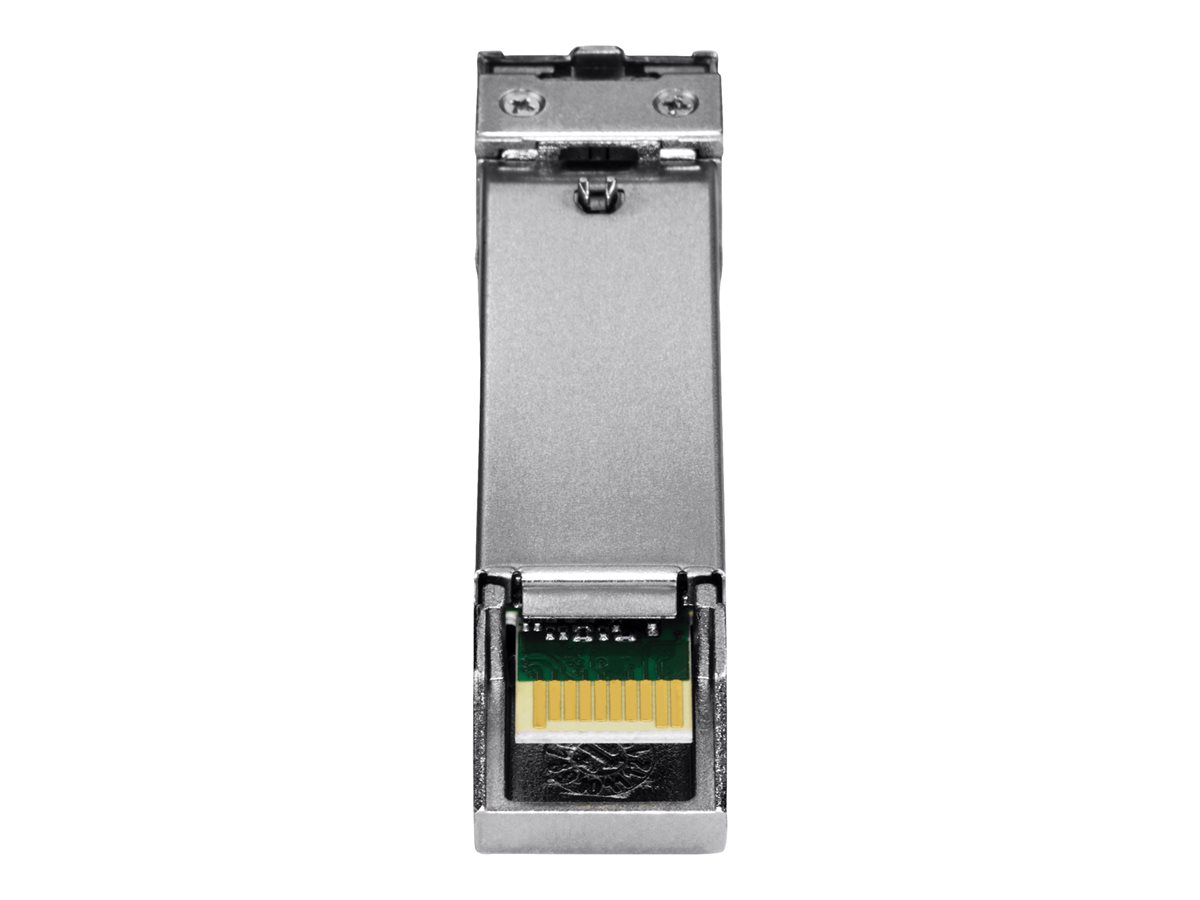

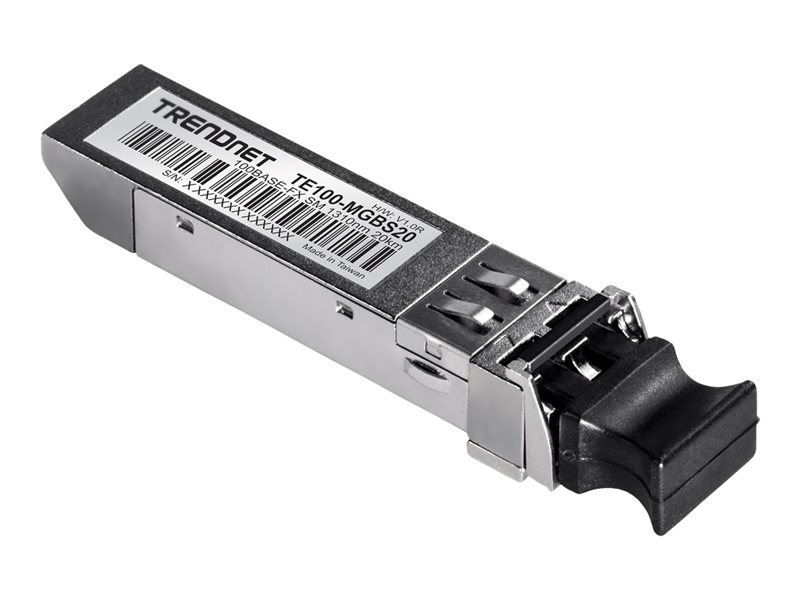

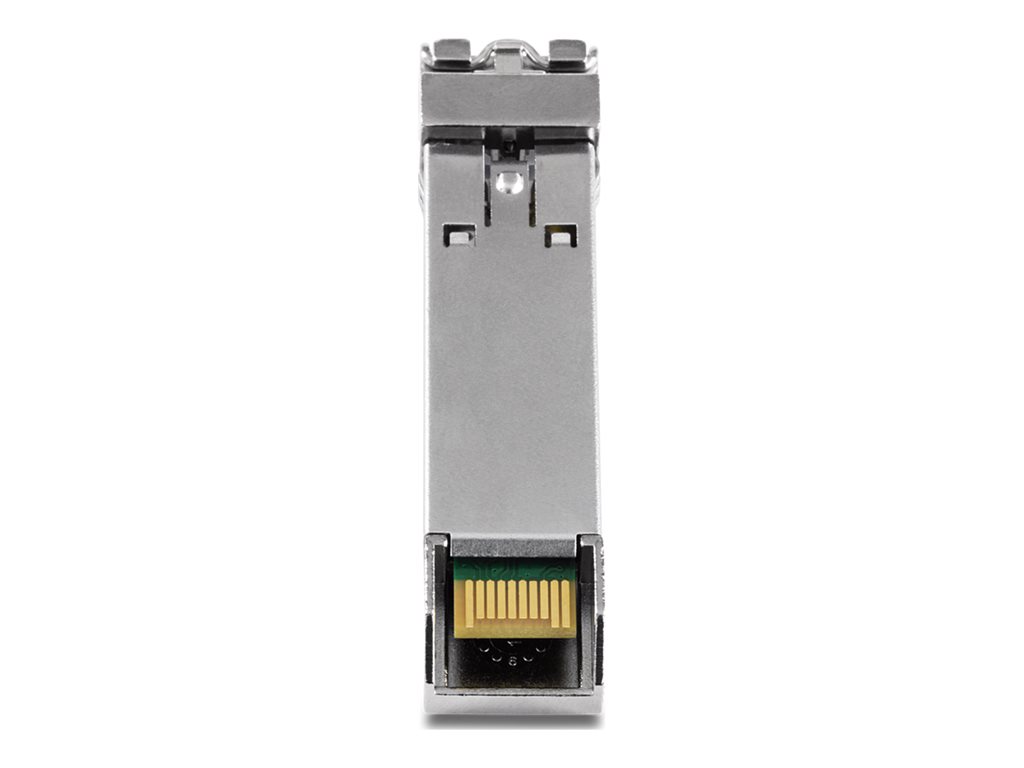

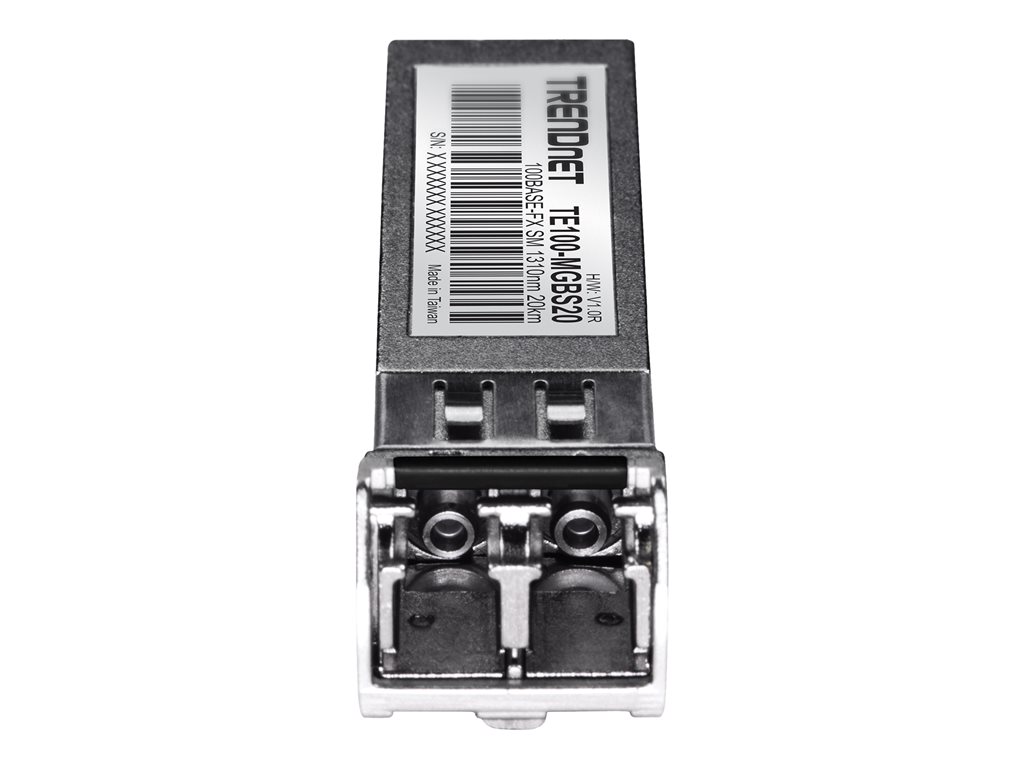

SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-LX, Fibre Channel - LC single-mode - up to 12.4 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TE100-MGBS20 - SFP (mini-GBIC) transceiver module - 1GbE - TAA Compliant |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-LX, Fibre Channel |
| Data Transfer Rate | 155 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 12.4 miles |
| Dimensions (WxDxH) | 0.5 in x 2.1 in x 0.4 in |
| Weight | 0.63 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, Fibre Channel |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 155 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 12.4 miles |
| Features | Hot swap module replacement, metal housing |
| Compliant Standards | IEEE 802.3u |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.1 in |
| Height | 0.4 in |
| Weight | 0.63 oz |
