Wireless access point - Wi-Fi - 2.4 GHz
| Main Specifications | |
|---|---|

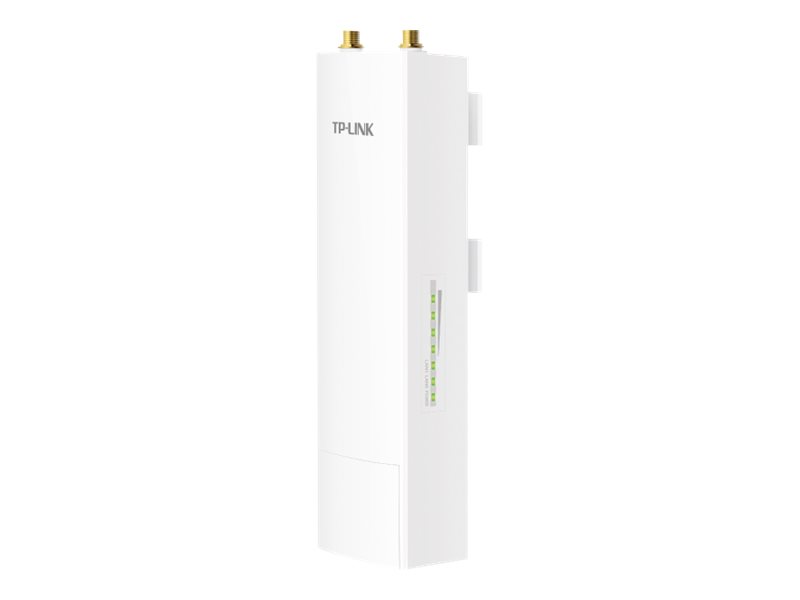

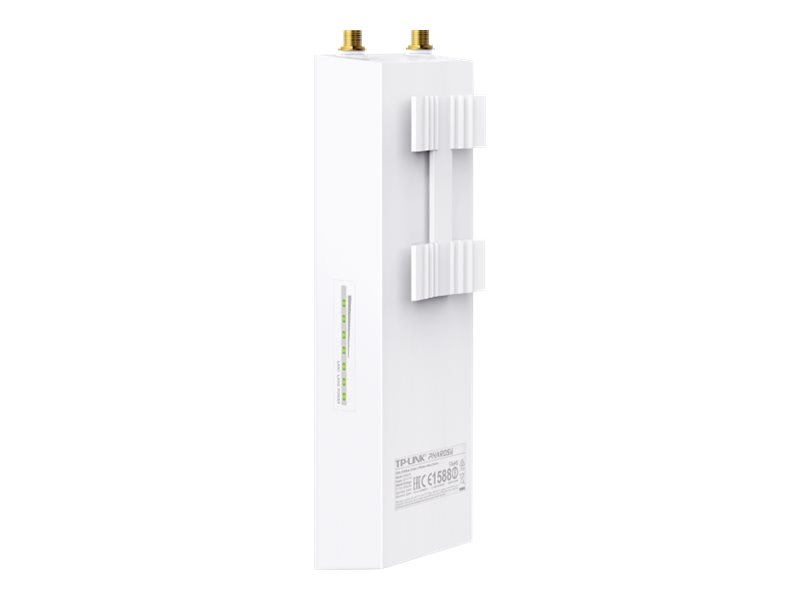

| Product Description | TP-Link WBS210 - wireless access point - Wi-Fi |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Processor | 1 x Qualcomm MIPS 74KC 560 MHz |
| RAM | 64 MB |
| Flash Memory | 8 MB |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 3 in x 1.3 in x 7.4 in |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 3 in |
| Depth | 1.3 in |
| Height | 7.4 in |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 100Base-TX - RJ-45 ¦ 2 x antenna - RP-SMA |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, IP65 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2c, HTTP, HTTPS, SSH |
| Frequency Band | 2.4 GHz |
| Features | Repeating mode, ALG support, manageable, DFS support, Wireless Distribution System (WDS) support, Multiple SSID support, wireless bridge mode, bandwidth control, Wireless Client Mode, pole mountable, Stateful Packet Inspection Firewall (SPIF), IP-MAC binding, static routing, 15KV ESD Protector |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Qualcomm MIPS 74KC 560 MHz |
| Max Supported Qty | 1 |
| RAM | 64 MB DDR2 SDRAM |
| Flash Memory | 8 MB |
