NVR - 8 channels 6 TB - networked
| Main Specifications | |
|---|---|

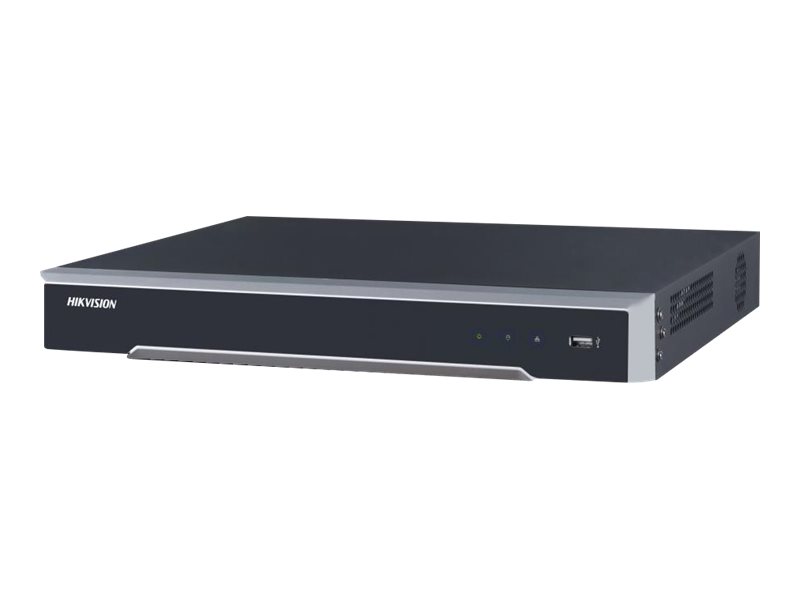

| Product Description | Hikvision DS-7600 Series DS-7608NI-I2/8P - standalone NVR - 8 channels |
| Device Type | NVR - 8 channels - networked |
| IP Cameras Supported | 8 |
| Image Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768, 1600x1200, 3840x2160 |
| Hard Drive | 6 TB |
| Hard Drive(s) Supported | Quantity: 2 |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 15 in x 11.4 in x 1.8 in |
| Weight | 6.61 lbs |
| General | |
| Device Type | NVR |
| Video Channels | 8 |
| IP Cameras Supported | 8 |
| Audio Channels | 1 |
| Image Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768, 1600x1200, 3840x2160 |
| Package Content | DVR |
| Networking | |
| DDNS Support | Yes |
| Web Server | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Features | Power over Ethernet (PoE) |
| Power | |
| Voltage | 120 / 230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 15 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
| Hard Drive | |
| Quantity Supported | 2 |
| Capacity | 6 TB |
| Interface | Serial ATA |
| Connections | |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 1 |
| Network Port | 10/100Base-TX x 8 (PoE/PoE+) / 1000Base-T x 1 |
| Other Ports | USB 3.0 x 1, USB 2.0 |
| Dimensions & Weight | |
| Width | 15 in |
| Depth | 11.4 in |
| Height | 1.8 in |
| Weight | 6.61 lbs |
| Security DVR | |
| Record Events | Alarm, motion detection, scheduled, event, manual |
| Networked | Yes |
| Features | Power over Ethernet (PoE) |
