Surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 2 MP - 1080p - ?14 mount - motorized - AHD - DC 12 V / AC 24 V
| Main Specifications | |
|---|---|

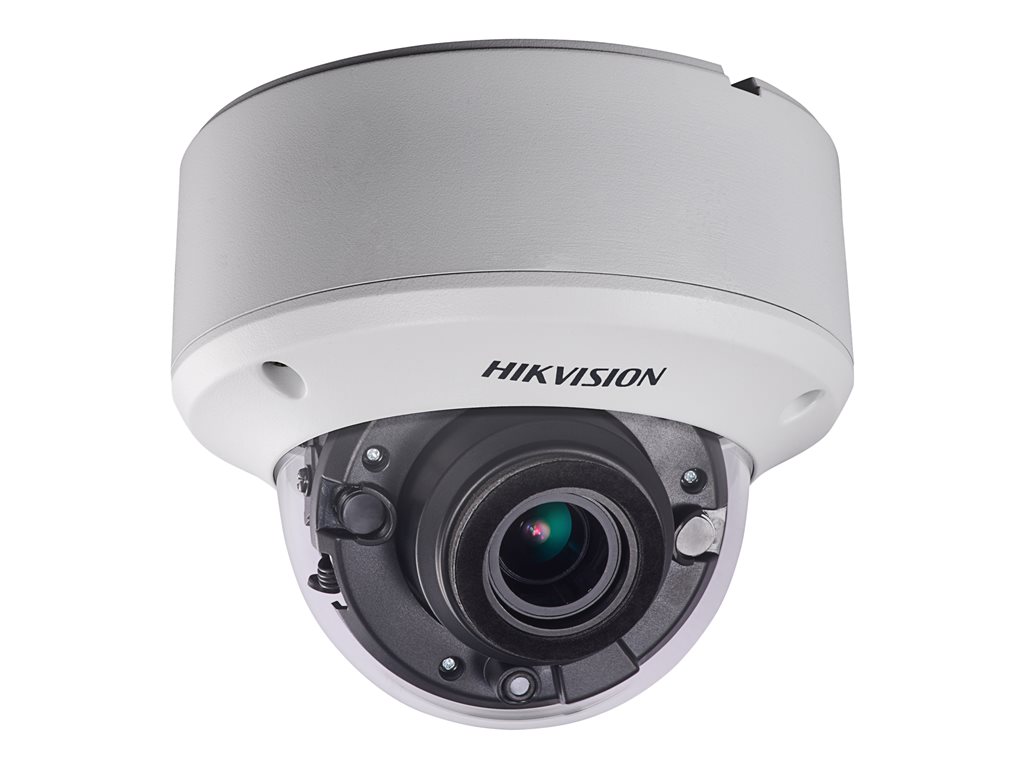

| Product Description | Hikvision HD 1080p Motorized VF EXIR Dome Camera DS-2CE56D7T-AVPIT3Z - surveillance camera - dome |
| Device Type | Surveillance camera - fixed - dome - outdoor - vandal / weatherproof |
| Dimensions (WxDxH) | 5.7 in x 5.7 in x 4.9 in |
| Weight | 3.53 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC, PAL |
| Optical Zoom | 4.3 x |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 1080p |
| Optical Sensor Type | CMOS 2 MP |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 2.8 mm - 12 mm |
| Lens Mounting | ?14 mount |
| Panning Range (degree) | 0 to 340 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | AHD |
| Voltage | DC 12 V / AC 24 V |
| Features | Backlight Compensation (BLC), digital noise reduction, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Smart IR, auto gain control |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.7 in |
| Depth | 5.7 in |
| Height | 4.9 in |
| Weight | 3.53 lbs |
| Miscellaneous | |
| Compliant Standards | IK10, IP66 |
| Power | |
| Power Requirements | DC 12 V / AC 24 V |
| Power Device | 6.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Format | NTSC, PAL |
| Video Modes | 1080p |
| Exposure Range | 1/25 sec - 1/50000 sec |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Video Capture | 1920 x 1080 @ 30 fps |
| Features | Backlight Compensation (BLC), digital noise reduction, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Smart IR, auto gain control |
| Lens Construction | |
| Type | ?14 mount - motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 35.1 - 114.5 |
| Image Sensor | |
| Type | 2 MP CMOS |
| Effective Pixels | 1928 x 1088 |
| Interfaces | |
| Video | AHD |
| Panning | |
| Range (degree) | 0 to 340 |
| Tilting | |
| Range (degree) | 0 to 75 |
