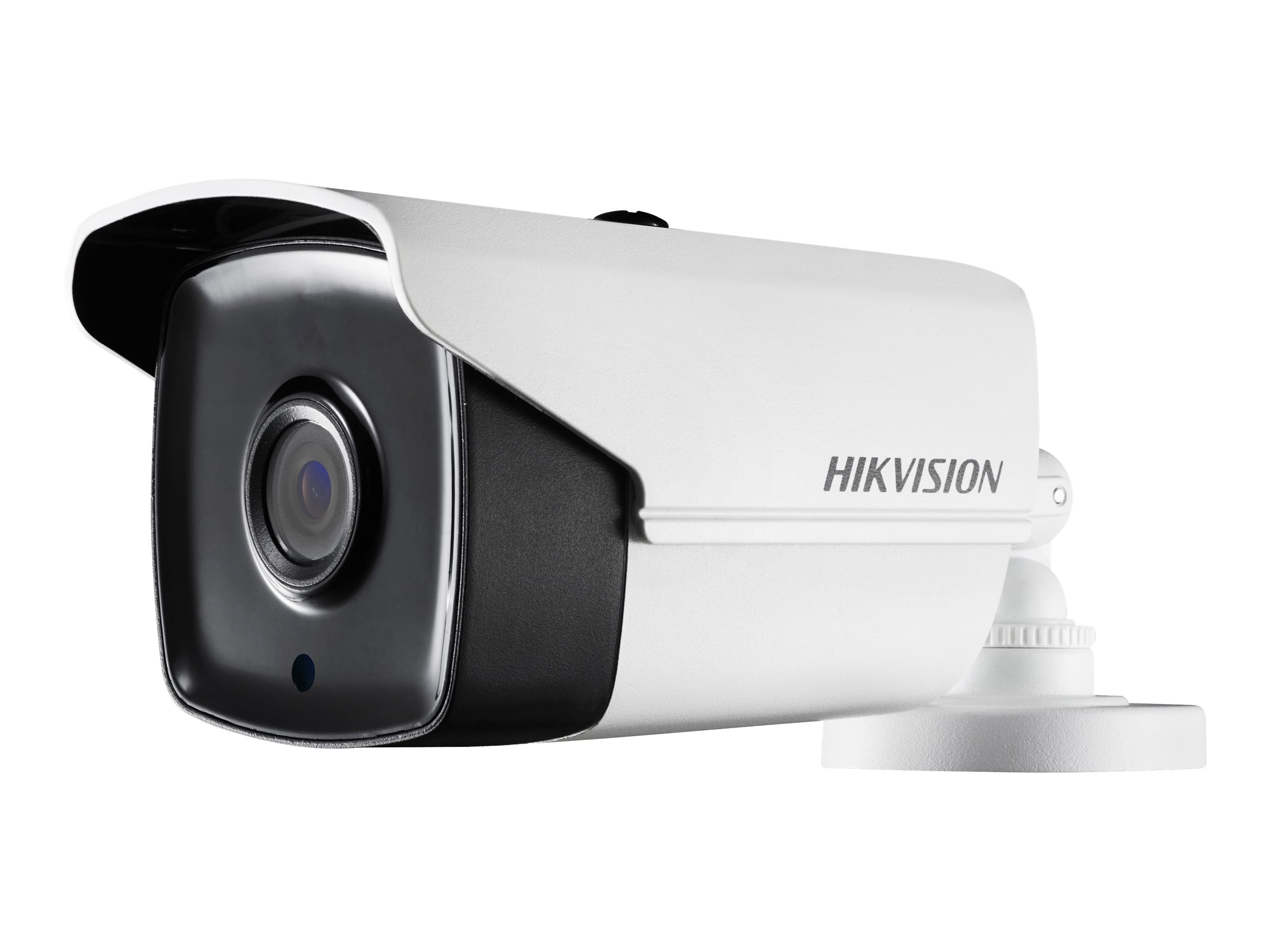

Surveillance camera - outdoor - weatherproof - color (Day&Night) - 3 MP - M12 mount - fixed focal - AHD - DC 12 V
| Main Specifications | |
|---|---|
| Product Description | Hikvision Turbo HD EXIR Bullet Camera DS-2CE16F7T-IT5 - surveillance camera |
| Device Type | Surveillance camera - fixed - outdoor - weatherproof |
| Dimensions (WxDxH) | 3.4 in x 8.9 in x 3.2 in |
| Weight | 23.98 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Frame Rate (max) | 18 frames per second |
| Optical Sensor Type | CMOS 3 MP |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0 lux - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 3.6 mm |
| Lens Mounting | M12 mount |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | AHD |
| Voltage | DC 12 V |
| Features | Digital noise reduction, image mirror, Wide Dynamic Range (WDR), Smart IR, auto white balance, EXIR LEDs |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Width | 3.4 in |
| Depth | 8.9 in |
| Height | 3.2 in |
| Weight | 23.98 oz |
| Expansion / Connectivity | |
| Ports | AHD |
| Miscellaneous | |
| Compliant Standards | IP66 |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | 5 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weatherproof |
| Exposure Range | 1/25 sec - 1/50000 sec |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0 lux - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 262 ft |
| Frame Rate (max) | 18 frames per second |
| Features | Digital noise reduction, image mirror, Wide Dynamic Range (WDR), Smart IR, auto white balance, EXIR LEDs |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 3.6 mm |
| Horizontal Field of View (degree) | 67.8 |
| Image Sensor | |
| Type | 3 MP CMOS |
| Effective Pixels | 2052 x 1536 |
| Interfaces | |
| Video | AHD |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
