Server - rack-mountable 1U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2400 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

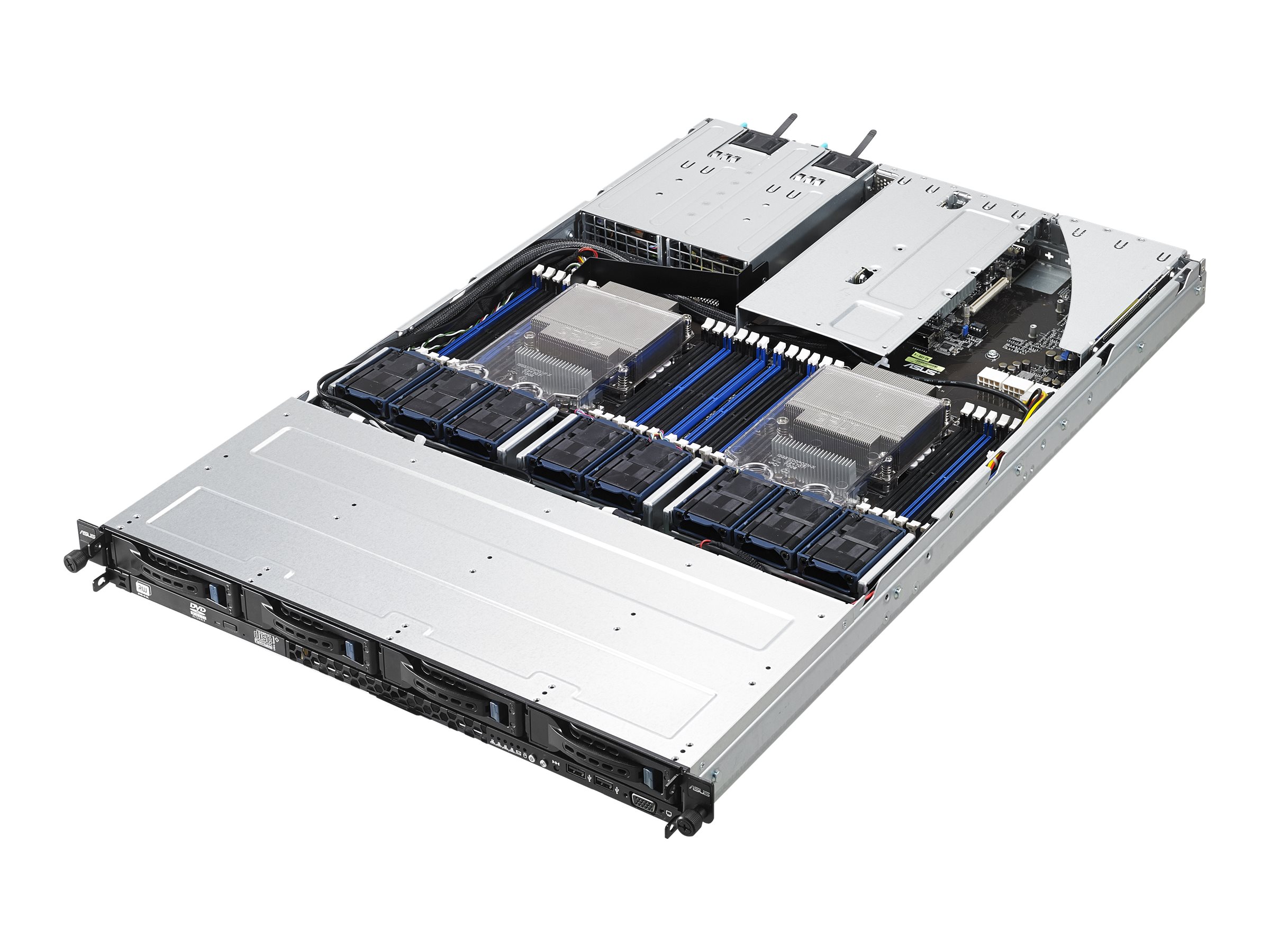

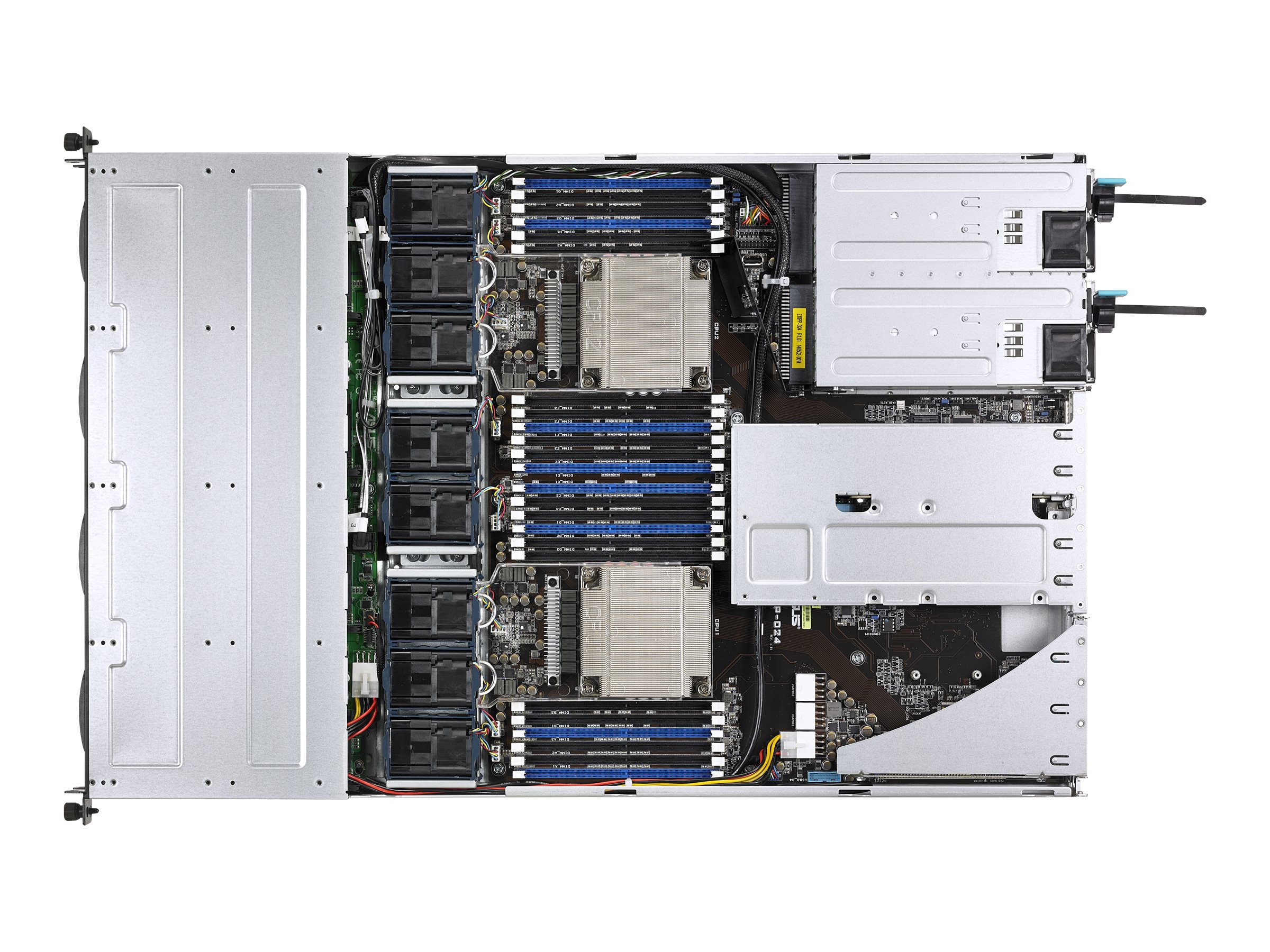

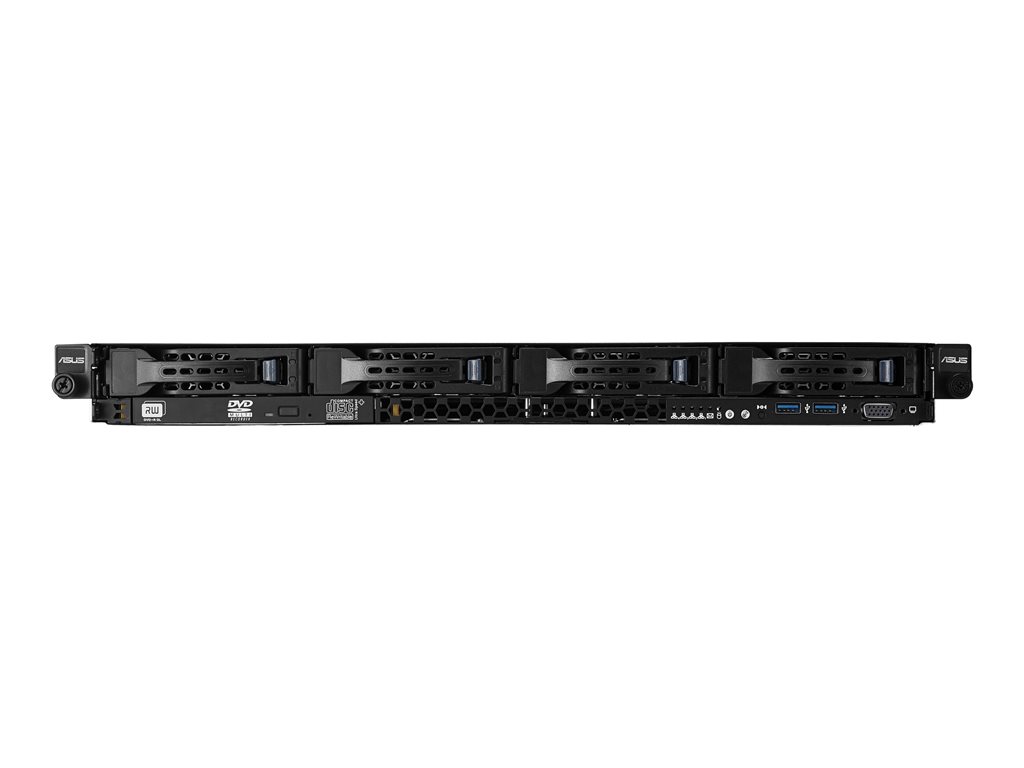

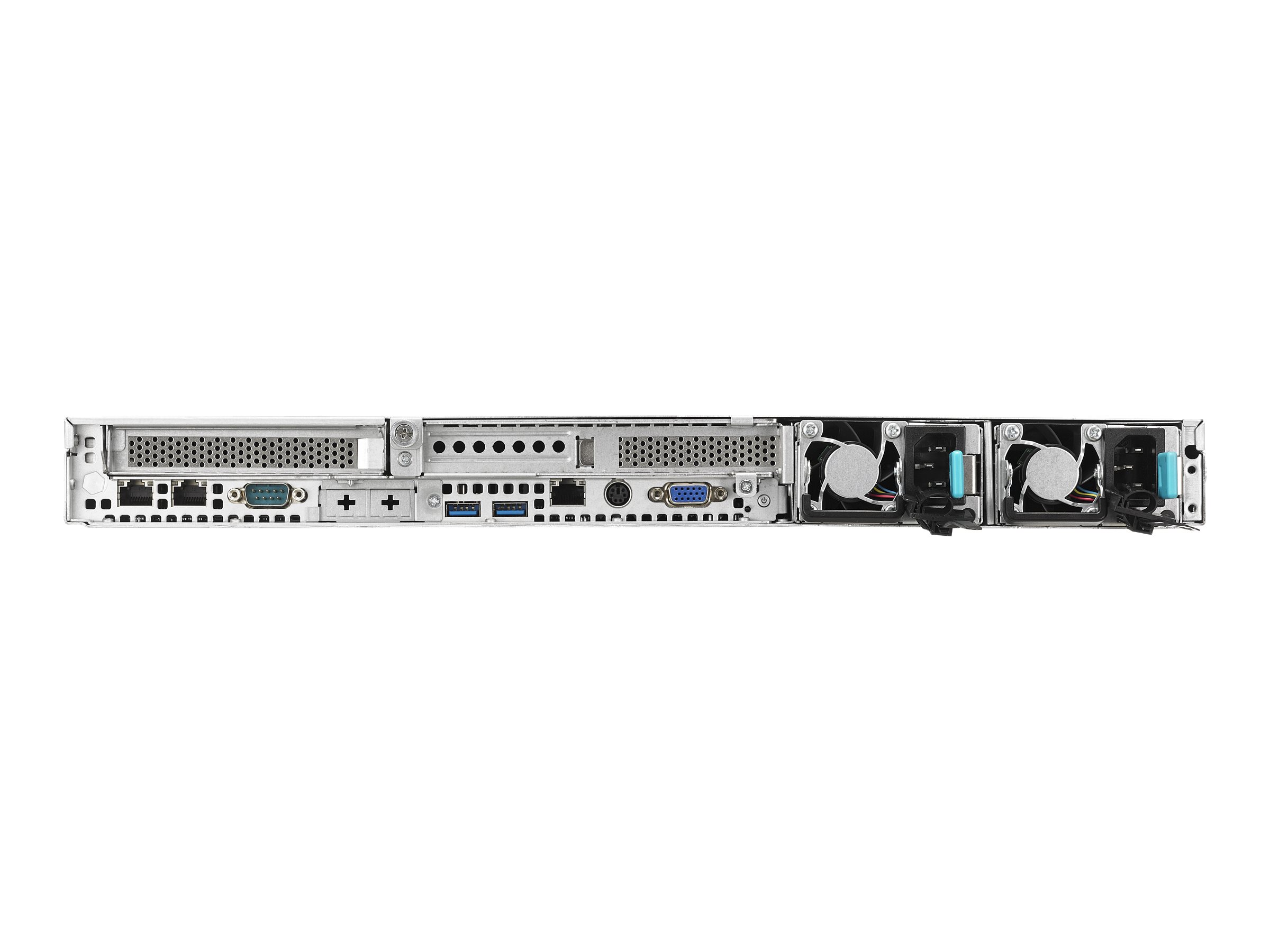

| Product Description | ASUS RS700-E8-RS4 V2 - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011-v3 Socket |
| RAM | 0 GB (installed) / 1536 GB (max) - DDR4 SDRAM |
| Storage Controller | RAID (SATA 6Gb/s) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Video Memory | 32 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (47 - 63 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | ASUS System Web-based Management (ASWM) Enterprise |
| Dimensions (WxDxH) | 17.5 in x 27 in x 1.7 in |
| Weight | 26.46 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile (x8 mode) ¦ 1 (total) / 1 (free) x Mezzanine card ¦ 1 (total) / 1 (free) x ASUS PIKE |
| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 (2 in front) ¦ 1 x serial |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, 2 x riser cards, 2 x air shrouds |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI |
| RAM | |
| Installed Size | 0 GB (installed) / 1536 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Features | Registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (47 - 63 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2400 |
| Video Memory | 32 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | ASUS System Web-based Management (ASWM) Enterprise |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 27 in |
| Height | 1.7 in |
| Weight | 26.46 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
