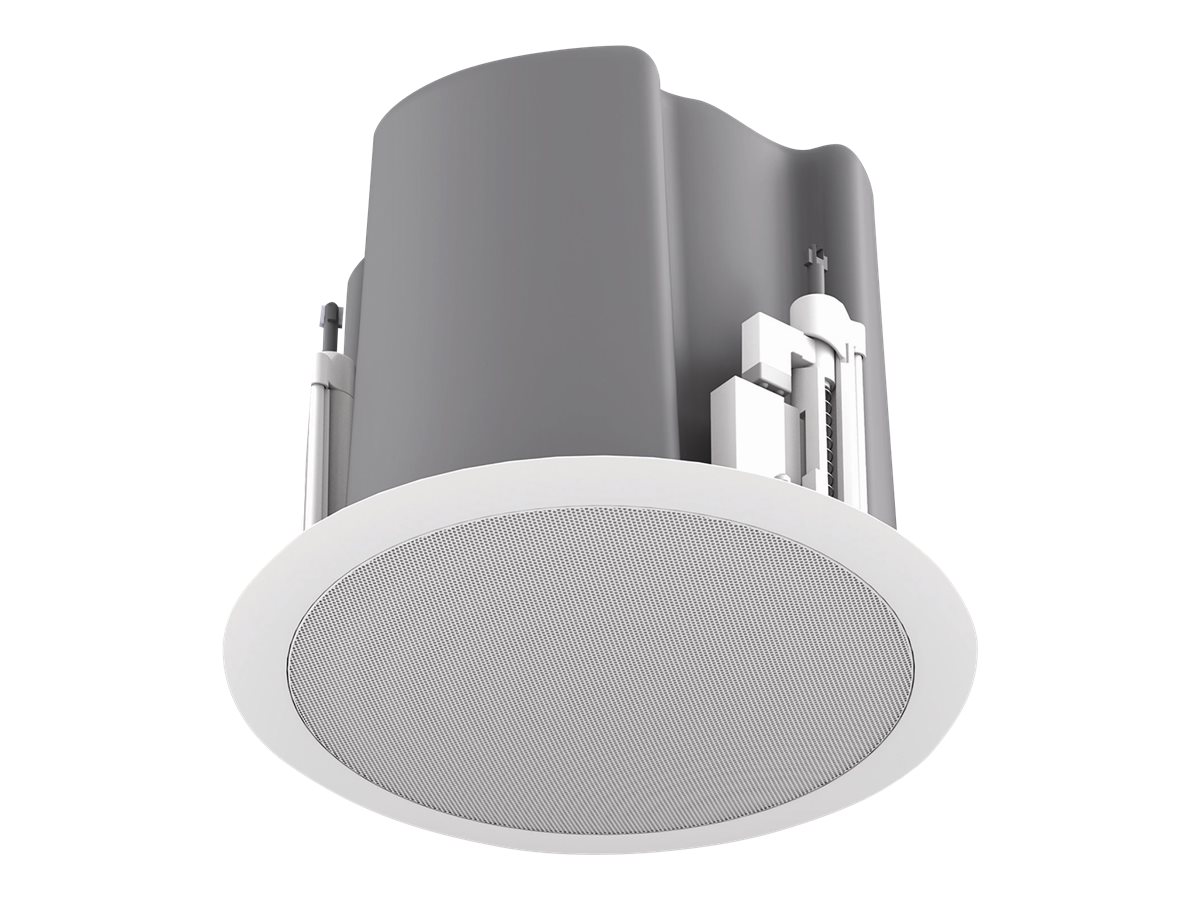

Speaker - for PA system - 75 Watt - 2-way - coaxial - white, RAL 9016 (grille color - white, RAL 9016)
| Main Specifications | |
|---|---|
| Product Description | Atlas Sound Strategy III FAP63T-W - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 75 watt |
| Peak Power | 150 watt |
| Frequency Response | 50 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70.7V/100V or 8 Ohm operation |
| Color | White, RAL 9016 |
| Dimensions (WxDxH) | 10.5 in x 8.9 in x 10.5 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speaker - for PA system |
| Enclosure Color | White, RAL 9016 |
| Enclosure Material | Cold-rolled steel, zinc-plated steel |
| Grille Color | White, RAL 9016 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | NFPA 70, UL 2043, MIL-STD 810G, IP21, NFPA 90, UL 1480 |
| Connections | |
| Connector Type | Speakers input (4 pin Phoenix) |
| Dimensions & Weight | |
| Width | 10.5 in |
| Depth | 8.9 in |
| Height | 10.5 in |
| Speaker System | |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 75 watt |
| Peak Power | 150 watt |
| Frequency Response | 50 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 108.5 dB |
| Sensitivity | 90 dB |
| Crossover Frequency | 2500Hz |
| Integrated Transformer | 70.7V/100V or 8 Ohm operation |
| Coverage | 130° conical |
| Recommended Placing | In-ceiling mounted |
| Speaker System Details | |
| Driver Details | Speaker driver: woofer driver - 6.5" ¦ Speaker driver: tweeter driver - 0.79" - treated cloth |
| Cutout & Mounting Dimensions | |
| Diameter | 9.2 in |
