Network surveillance camera - color (Day&Night) - 1 MP - 1280 x 720 - audio - wireless - Wi-Fi - MJPEG, H.264 - DC 5 V
| Main Specifications | |
|---|---|

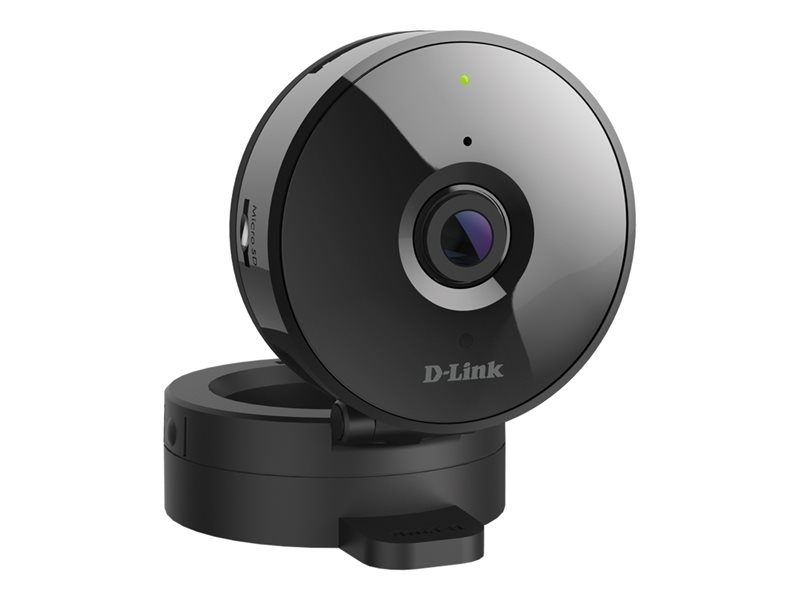

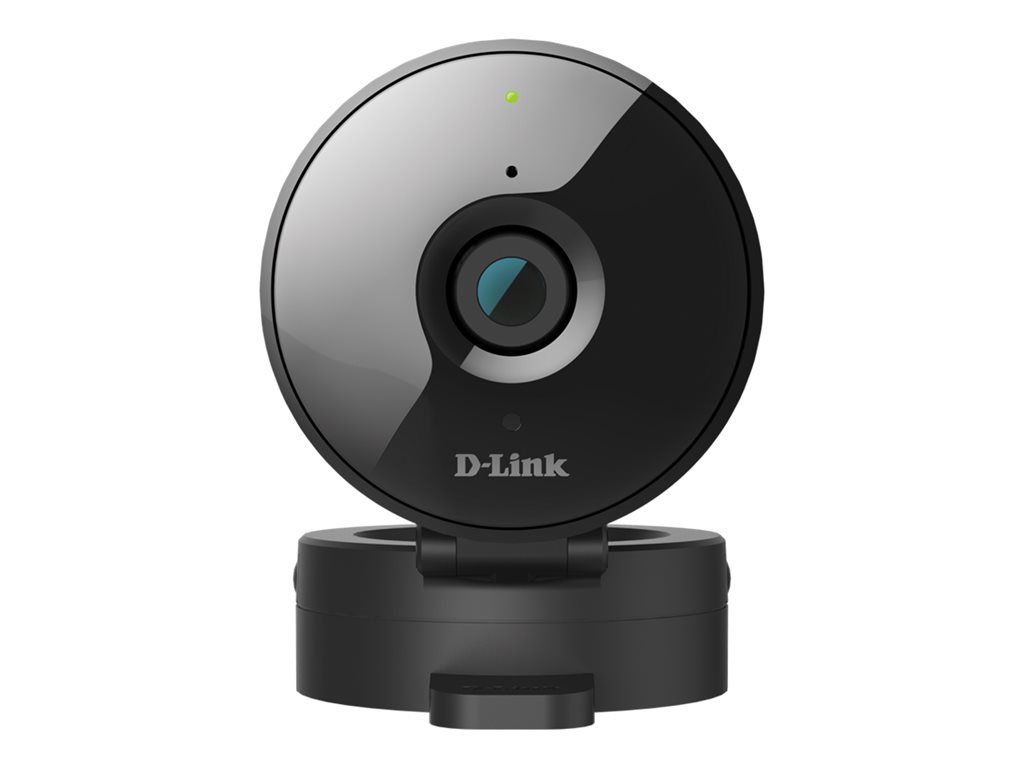

| Product Description | D-Link DCS 936L HD Wi-Fi Camera - network surveillance camera |
| Device Type | Network surveillance camera - fixed |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 2.6 in x 1.9 in x 3.2 in |
| Weight | 4.97 oz |
| Connectivity Technology | Wireless |
| Camera | Color - Day&Night |
| Max Resolution | 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | CMOS - 1/4" - 1 MP |
| Minimum Illumination | 0 lux - IR |
| Focal Length | 2.45 mm |
| Lens Iris | F/2.4 |
| Voltage | DC 5 V |
| Features | Motion sensor, sharpness control, saturation control, brightness control, contrast control, infrared cut filter, hue control, Wi-Fi Protected Setup (WPS), text stamp, password protection, sound sensor |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 85% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wireless |
| Width | 2.6 in |
| Depth | 1.9 in |
| Height | 3.2 in |
| Weight | 4.97 oz |
| Expansion / Connectivity | |
| Supported Memory Cards | microSD Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, C-Tick, ICES, LVD |
| Power | |
| Power Requirements | DC 5 V - 1.2 A |
| Power Device | Power adapter - external (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, mydlink Lite |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 85% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1280 x 720 |
| Digital Zoom | 4 |
| Minimum Illumination | 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 16 ft |
| Video Capture | 1280 x 720 @ 30 fps ¦ 640 x 352 @ 30 fps ¦ 320 x 176 @ 30 fps |
| Supported Image Formats | JPEG |
| Features | Motion sensor, sharpness control, saturation control, brightness control, contrast control, infrared cut filter, hue control, Wi-Fi Protected Setup (WPS), text stamp, password protection, sound sensor |
| Lens Construction | |
| Focal Length | 2.45 mm |
| Lens Iris | F/2.4 |
| Horizontal Field of View (degree) | 100 |
| Vertical Field of View (degree) | 54 |
| Image Sensor | |
| Type | 1 MP CMOS 1/4" |
| Interfaces | |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, UPnP, IPv4, RTCP, PPPoE |
