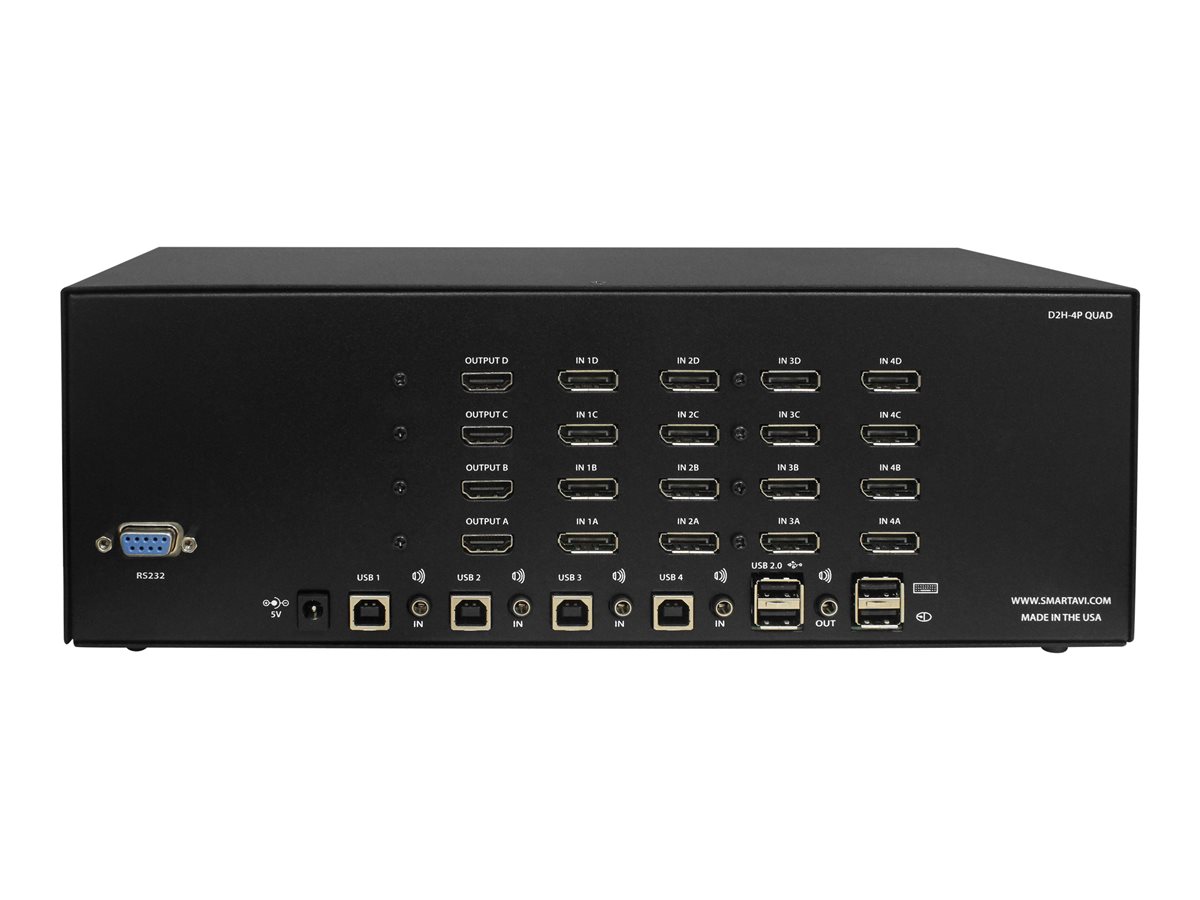

KVM / audio / USB switch - managed - 16 x KVM / audio / USB - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | SmartAVI D2H-4P-Quad - KVM / audio / USB switch - 16 ports - managed - rack-mountable |
| Device Type | KVM / audio / USB switch - 16 ports - managed |
| Enclosure Type | Rack-mountable |
| Subtype | KVM |
| Ports | 16 x KVM / audio / USB |
| Performance | Link rate: 5.4 Gbps ¦ Bandwidth: 10.2 Gbps |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 12.8 in x 5.7 in x 4.5 in |
| Weight | 5.73 lbs |
| General | |
| Device Type | KVM / audio / USB switch - 16 ports - managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | KVM |
| Ports | 16 x KVM / audio / USB |
| Keyboard / Mouse Interface | USB |
| Performance | Link rate: 5.4 Gbps ¦ Bandwidth: 10.2 Gbps |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Expansion / Connectivity | |
| Interfaces | 16 x DisplayPort input ¦ 4 x keyboard (USB) / mouse (USB) Type A ¦ 4 x USB 2.0 input Type B ¦ 4 x HDMI ¦ 1 x serial (RS-232) DB-9 |
| Miscellaneous | |
| Compliant Standards | UL, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 12.8 in |
| Depth | 5.7 in |
| Height | 4.5 in |
| Weight | 5.73 lbs |
