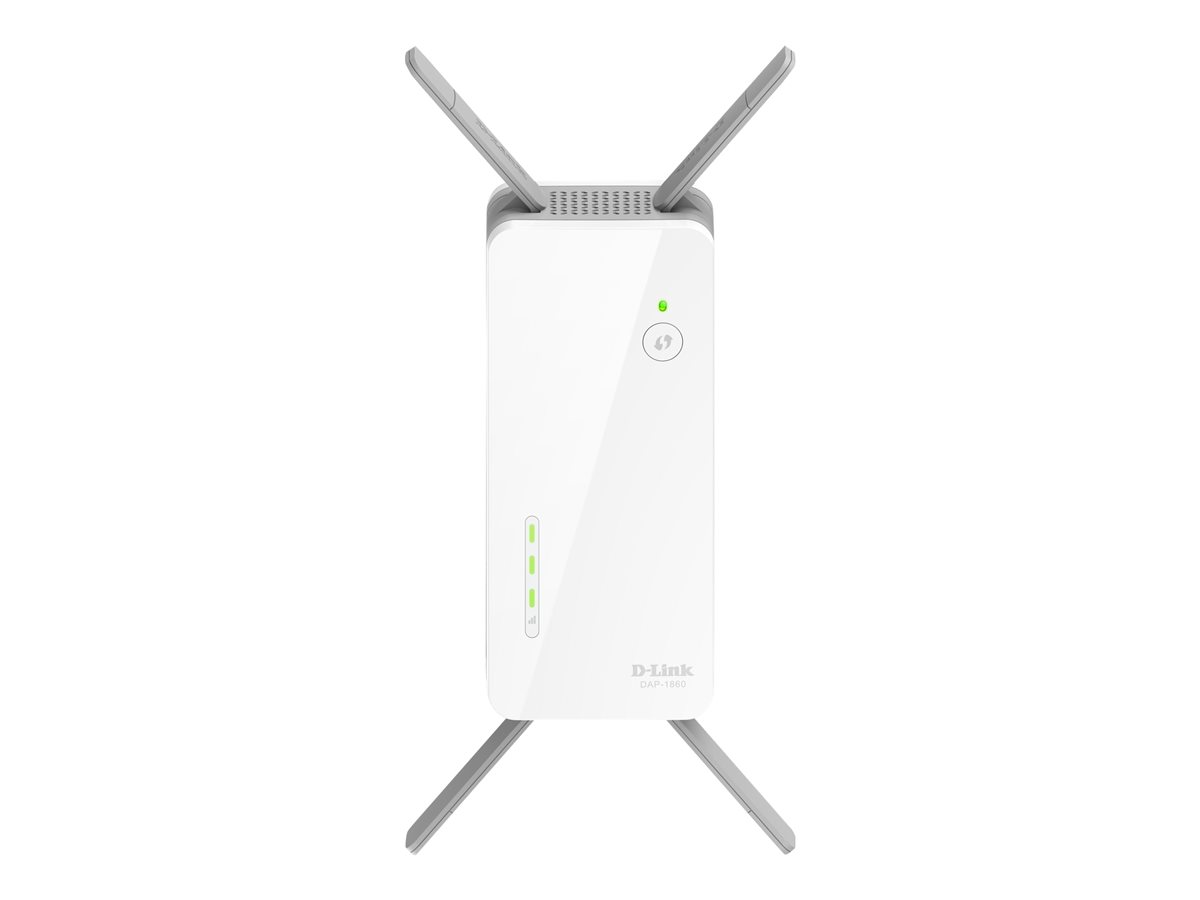

Wi-Fi range extender - 1GbE - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|
| Product Description | D-Link DAP-1860 - Wi-Fi range extender - Wi-Fi 5 |
| Device Type | Wi-Fi range extender |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| OS Required | Apple MacOS X 10.6 or later, Microsoft Windows Vista / 7 / 8 / 10 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 2.7 in x 2 in x 6.2 in |
| Weight | 14.21 oz |
| General | |
| Device Type | Wi-Fi range extender |
| Width | 2.7 in |
| Depth | 2 in |
| Height | 6.2 in |
| Weight | 14.21 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | C-Tick, CB, FCC, RoHS, LVD |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2600 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Remote Management Protocol | HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status, signal strength, WPS |
| Features | Wi-Fi Protected Setup (WPS), reset button, 4T4R MIMO technology |
| Encryption Algorithm | WPA, WPA2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.6 or later, Microsoft Windows Vista / 7 / 8 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Antenna | |
| Antenna Qty | 4 |
