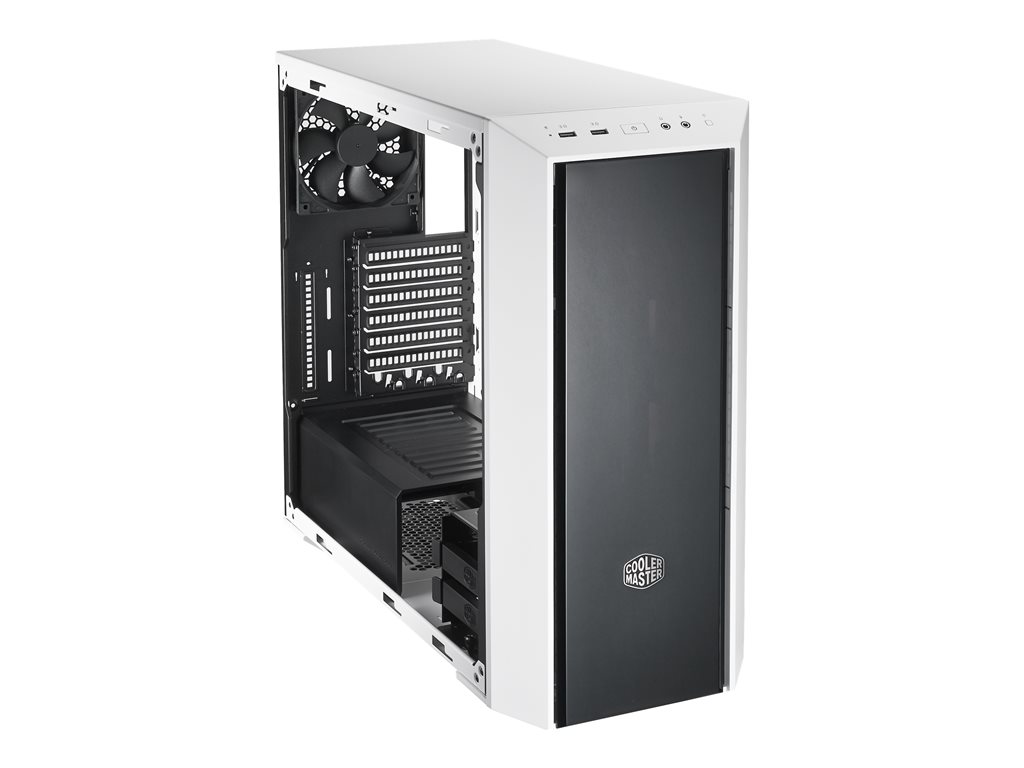

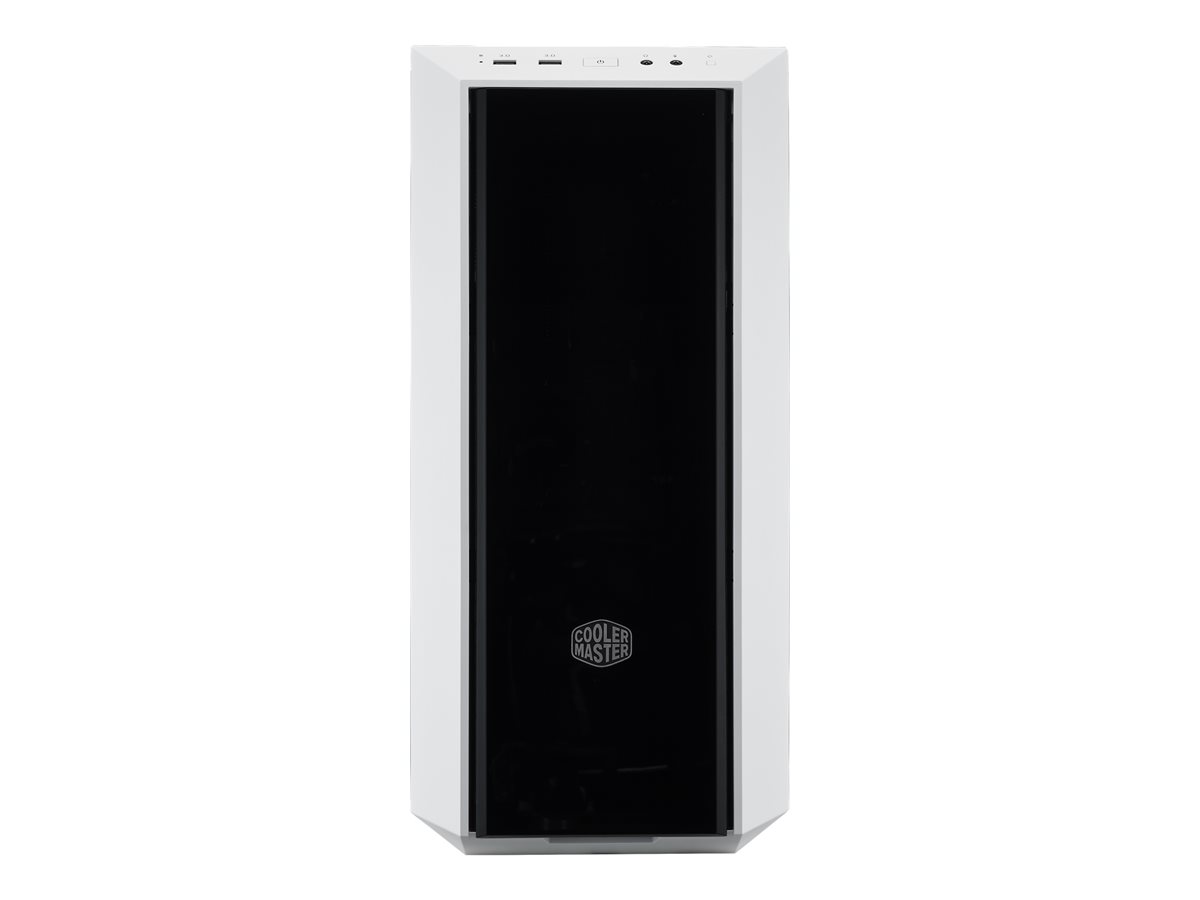

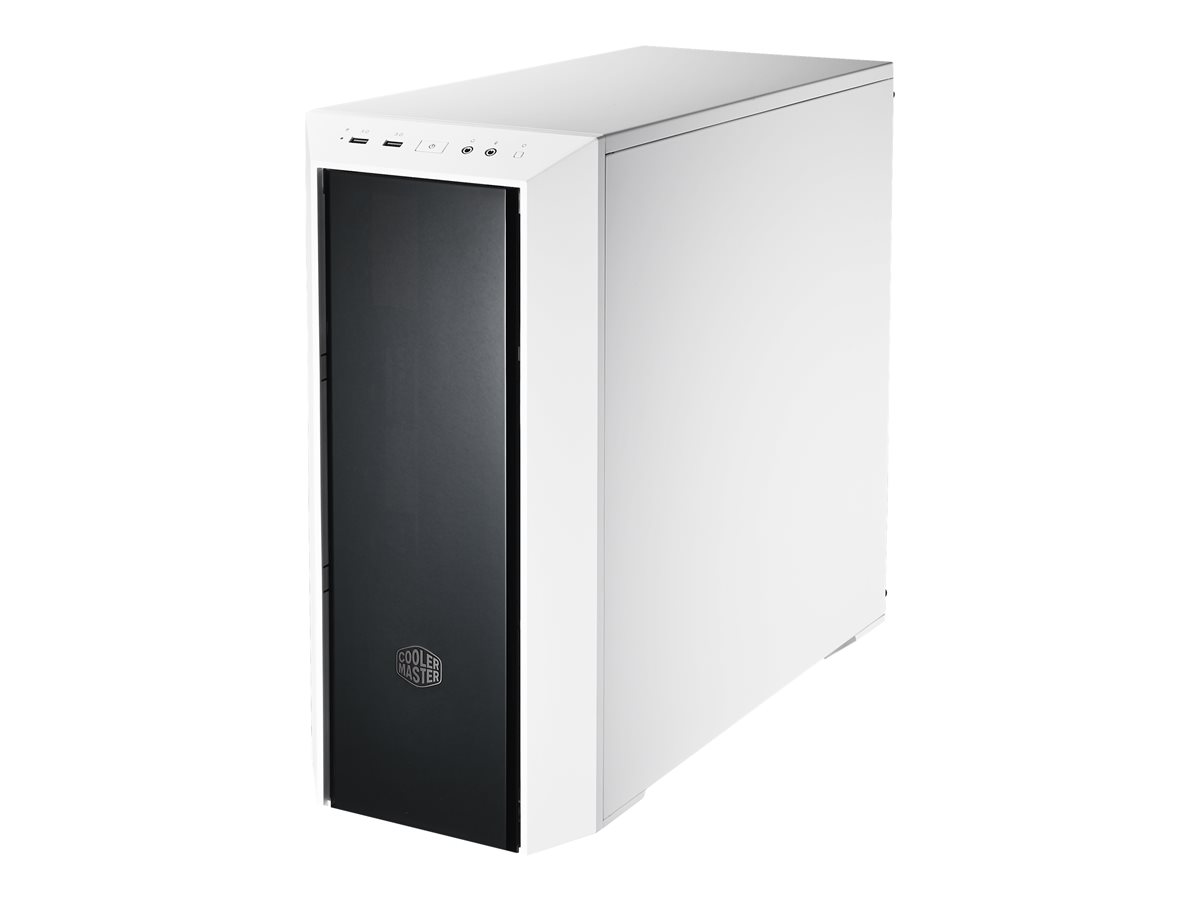

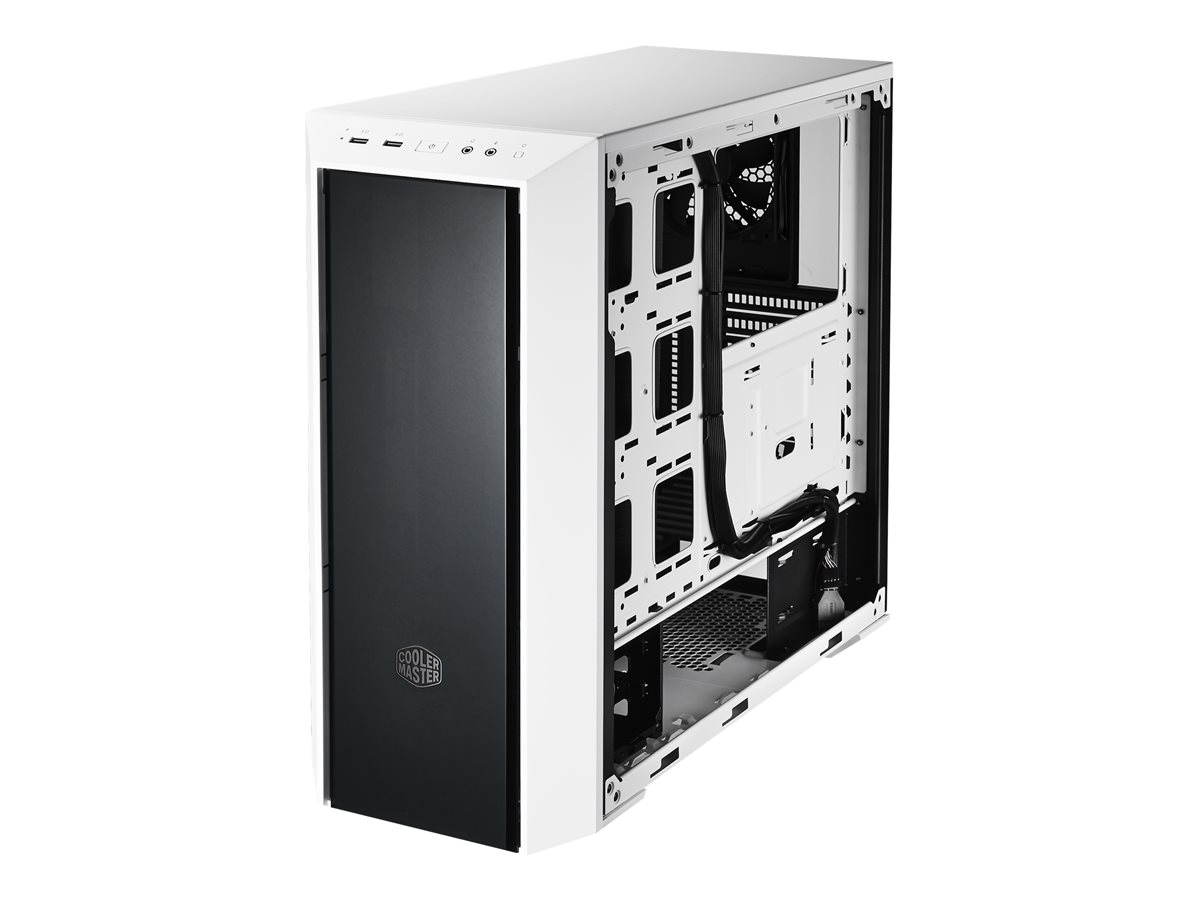

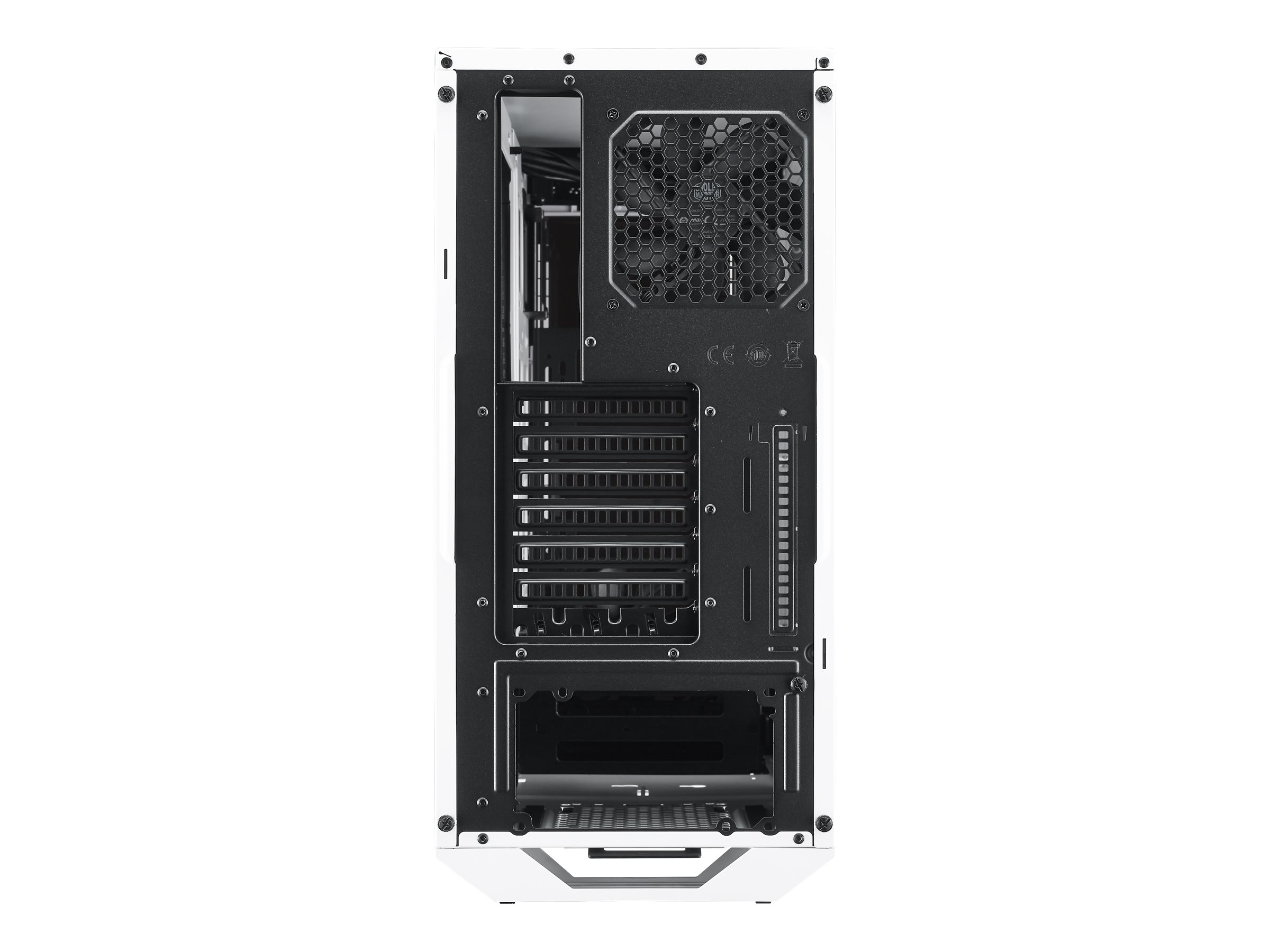

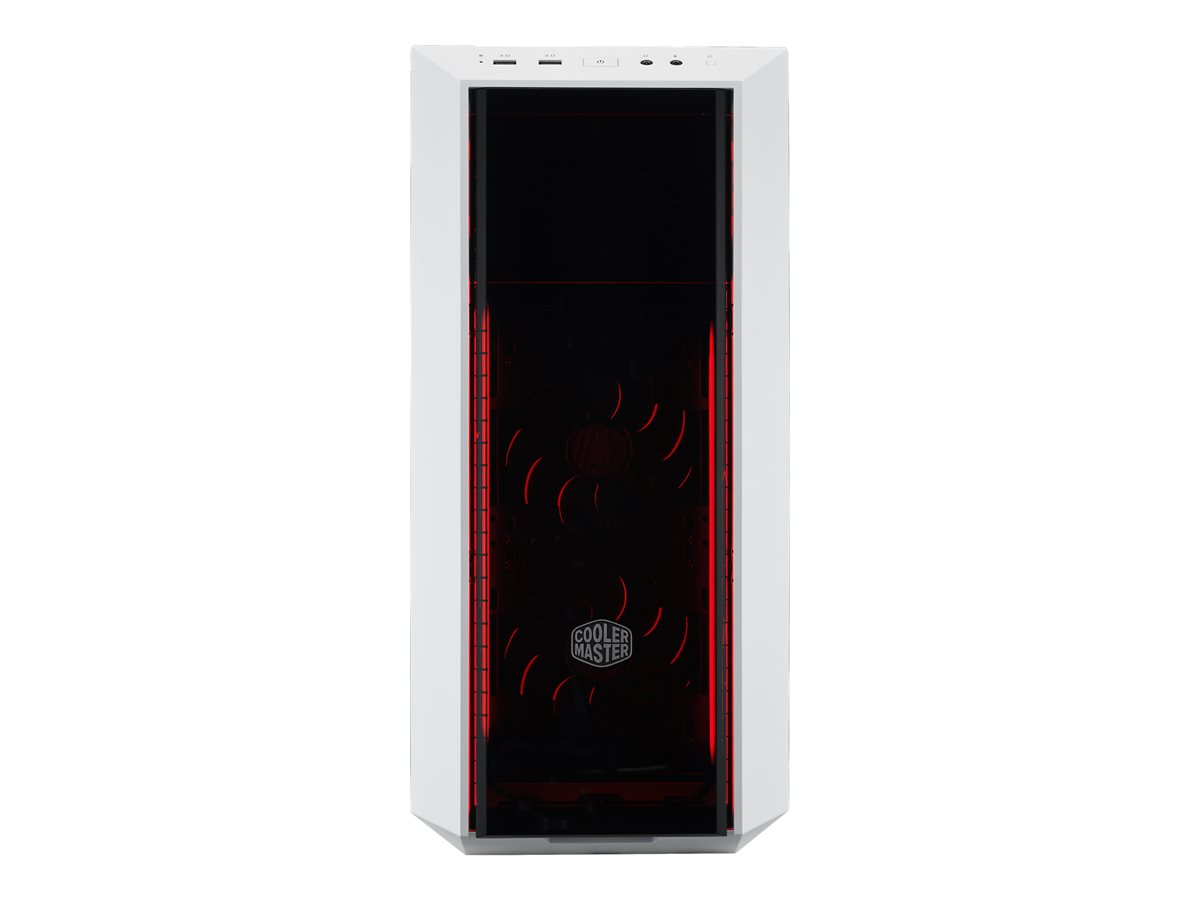

Tower - ATX - windowed side panel - no power supply (ATX) - white - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Cooler Master MasterBox 5 - tower - ATX |
| Product Type | System cabinet |
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Color | White |
| I/O Connectors | 2 x USB 3.0 ¦ 1 x audio line-in ¦ 1 x audio line-out |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| System Cabinet Features | Meshed front panel, front dust filter, bottom mounted PSU holder, cable management system, supports 120 mm radiator in rear, bottom dust filter, supports 240/280 mm radiator in front panel |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 8.7 in x 19.7 in x 18.7 in |
| Weight | 16.31 lbs |
| General | |
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 7 |
| Product Material | Plastic, steel |
| Color | White |
| Cooling System | Front: 120 mm fan x 1 ¦ Rear: 120 mm fan x 1 ¦ Front: 120/140 mm fan mount x 1 |
| CPU Cooler Max Height | 167 mm |
| Video Card Max Length | 410 mm |
| System Cabinet Features | Meshed front panel, front dust filter, bottom mounted PSU holder, cable management system, supports 120 mm radiator in rear, bottom dust filter, supports 240/280 mm radiator in front panel |
| Expansion / Connectivity | |
| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" ¦ 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 19.7 in |
| Height | 18.7 in |
| Weight | 16.31 lbs |
