Barebone - mini PC - 1 x Core i3 6100U / 2.3 GHz - RAM 0 GB - HD Graphics 520 - WLAN: Bluetooth 4.0, 802.11a/b/g/n/ac
| Main Specifications | |
|---|---|

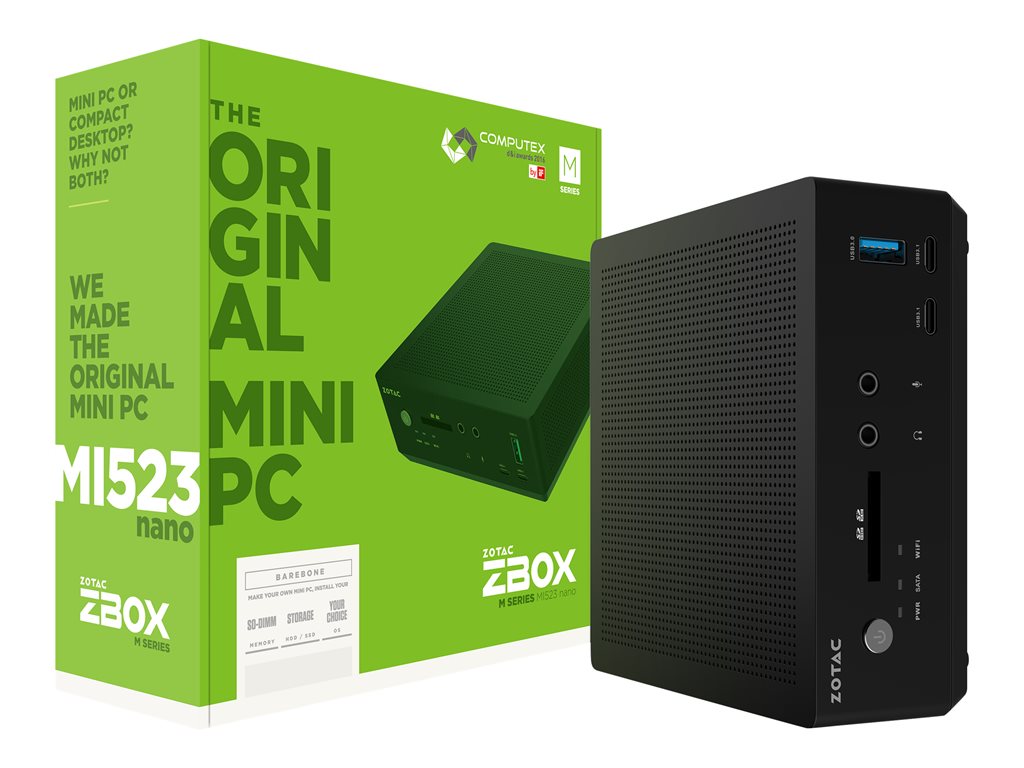

| Product Description | ZOTAC ZBOX M Series MI523 Nano - mini PC - Core i3 6100U 2.3 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Localization | Region: United States |
| Processor | 1 x Intel Core i3 (6th Gen) 6100U / 2.3 GHz (Dual-Core) |
| Cache Memory | 3 MB |
| Cache Per Processor | 3 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR3L SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | 3 in 1 |
| Graphics Controller | Intel HD Graphics 520 |
| Audio Output | 7.1 channel surround |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Bluetooth 4.0, Wi-Fi 5 |
| OS Provided | No operating system |
| Software Included | Drivers & Utilities |
| Dimensions (WxDxH) | 5 in x 5 in x 2 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 2 (total) / 2 (free) x SO-DIMM 204-pin |

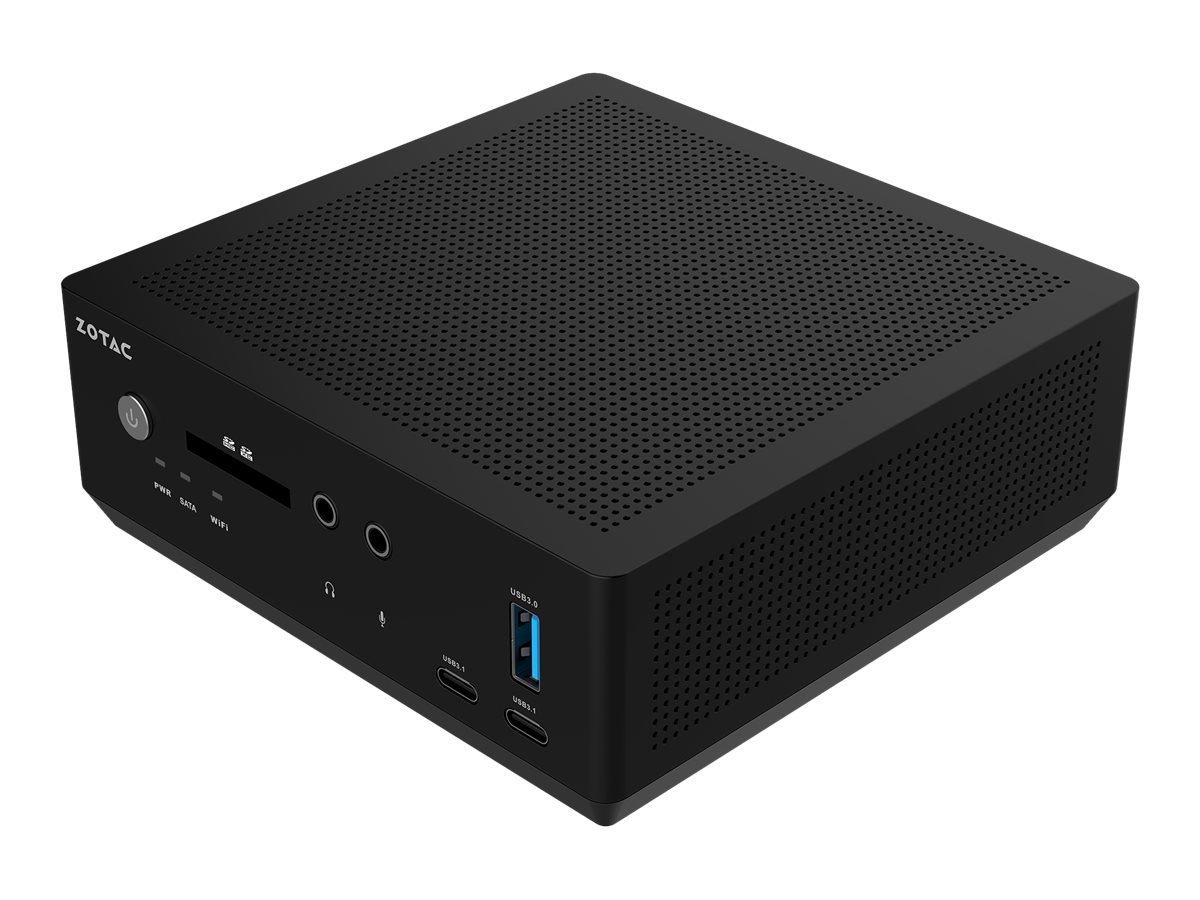

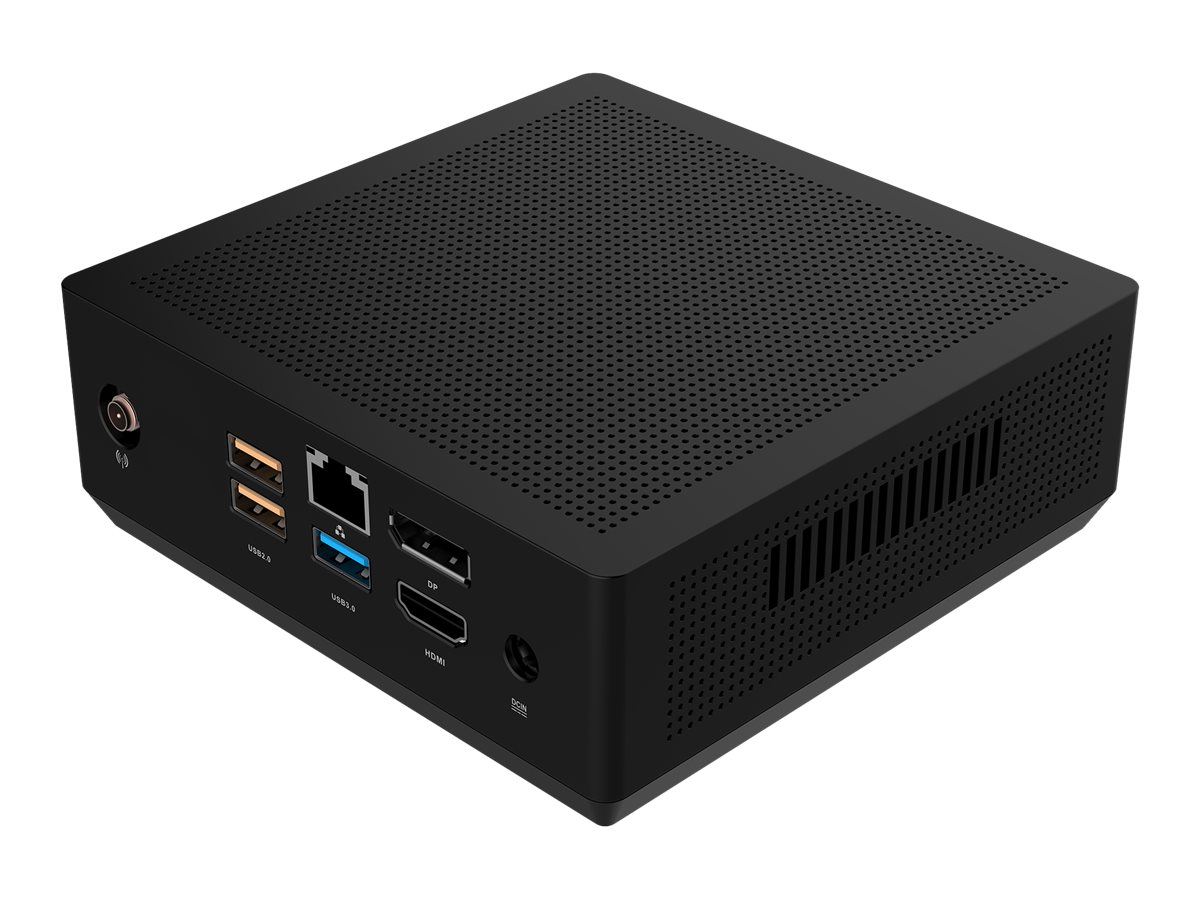

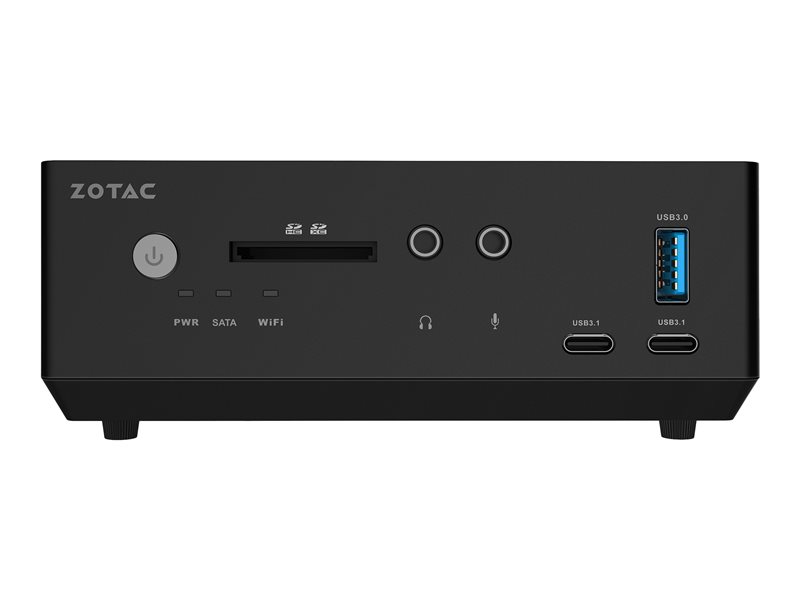

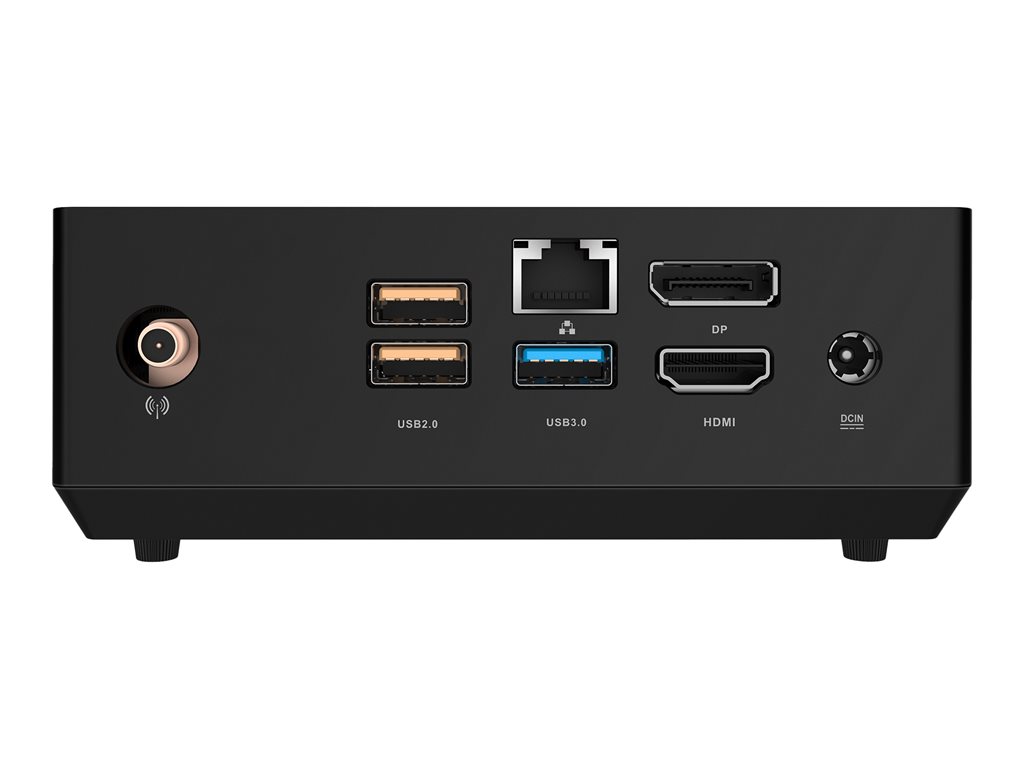

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 (1 front, 1 rear) ¦ 1 x headphones - mini-jack (1 in front) ¦ 2 x USB-C 3.1 (2 in front) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x microphone - mini-jack (1 in front) |
| Miscellaneous | |

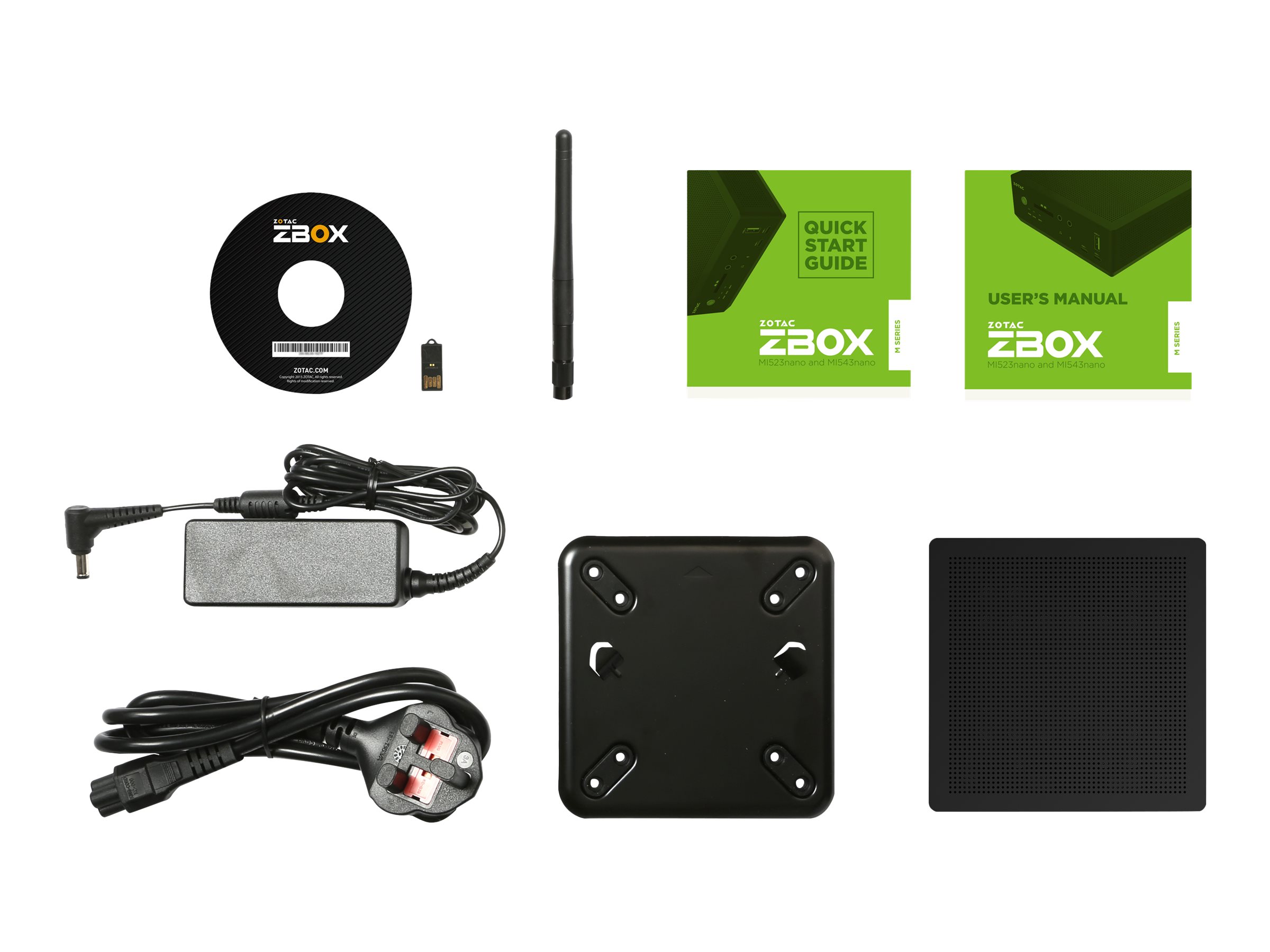

| Included Accessories | Wireless antenna, USB flash drive, VESA mounting kit |
| VESA Mounting Interface | Yes |
| RAM | |
| Installed Size | 0 GB / 16 GB (max) |
| Technology | DDR3L SDRAM |
| Form Factor | SO-DIMM 204-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Compliant Standards | Bluetooth 4.0, IEEE 802.11ac |
| Power | |
| Device Type | Power adapter |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 3 MB |
| Cache Per Processor | 3 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 520 |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Max Monitors Supported | 2 |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 5 in |
| Height | 2 in |
| Card Reader | |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Core i3 (6th Gen) 6100U |
| Clock Speed | 2.3 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
