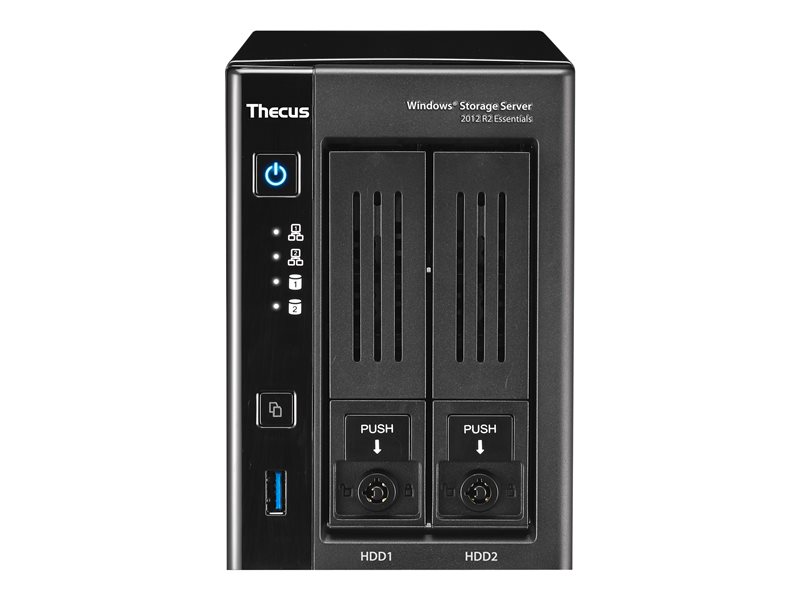

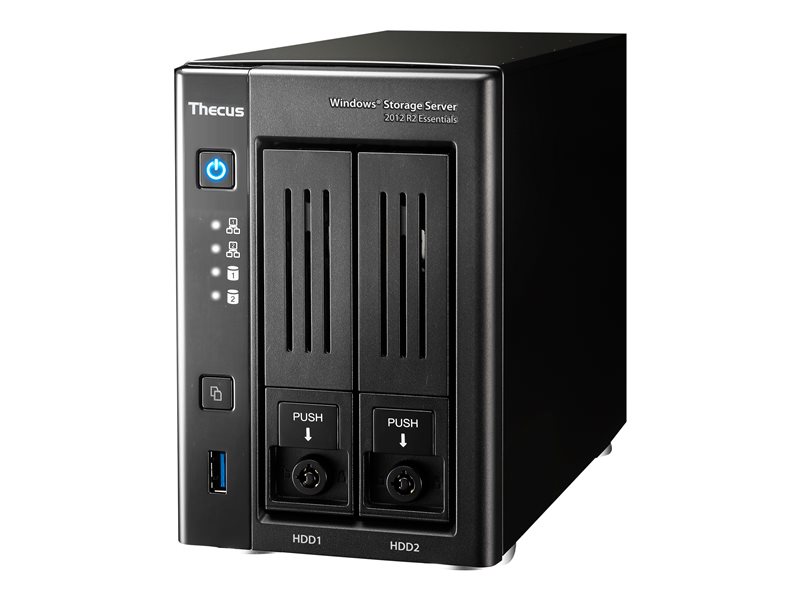

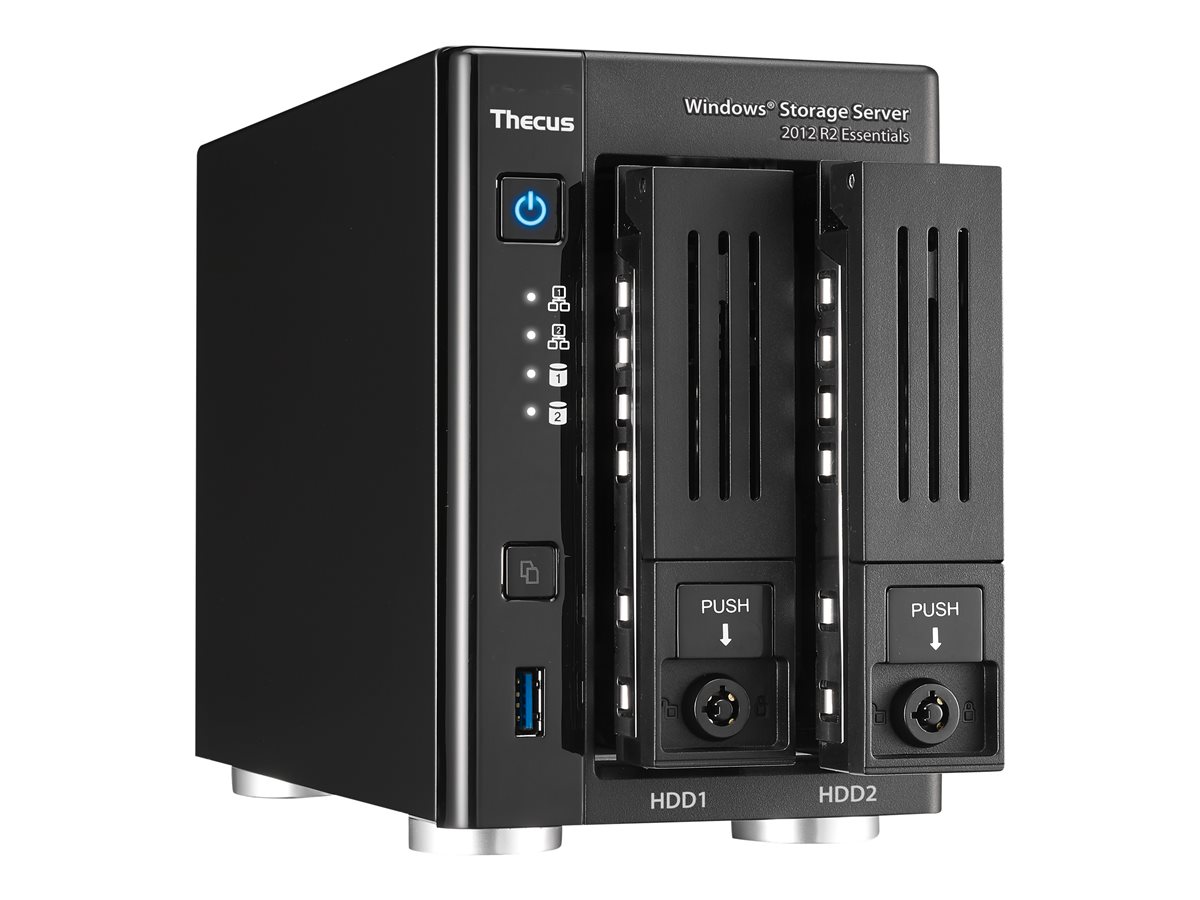

NAS server - 2 bays - RAM 4 GB - Gigabit Ethernet - iSCSI support
| Main Specifications | |
|---|---|
| Product Description | Thecus Technology W2810PRO - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Max Supported Capacity | 16 TB |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Dimensions (WxDxH) | 4 in x 8.4 in x 5.7 in |
| Weight | 3.79 lbs () |
| Processor | 1 x Intel Celeron N3160 1.6 GHz (Quad-Core) |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 4 GB |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Essentials |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Max Supported Capacity | 16 TB |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Width | 4 in |
| Depth | 8.4 in |
| Height | 5.7 in |
| Weight | 3.79 lbs () |
| Built-in Devices | LED panel, 60 GB SSD |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) |

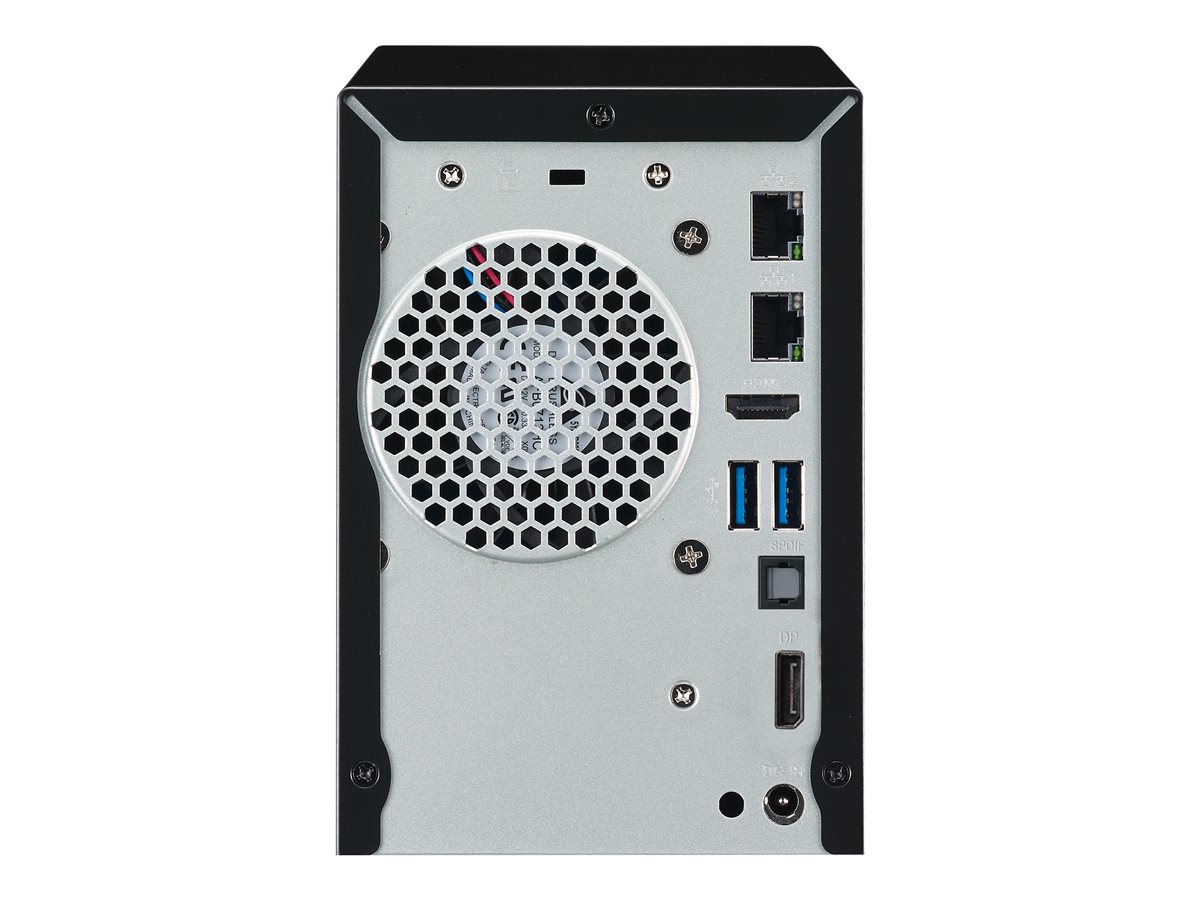

| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 3 x USB 3.0 - Type A ¦ 1 x HDMI output ¦ 1 x DisplayPort ¦ 1 x SPDIF out |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Audible alarm |
| Compliant Standards | VCCI, C-Tick, BSMI, FCC, RoHS, WEEE |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | iSCSI, FTP, DHCP, DNS, SMB, NFS |
| Remote Management Protocol | HTTPS |
| Network Services Compatibility | Microsoft Active Directory (AD), DNS, WINS, DHCP, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTPS |
| Features | WOL, auto-uplink (auto MDI/MDI-X), print server, IPv6 support, teaming support, e-mail notification |
| Power | |
| Power Device | External power adapter |
| Power Provided | 48 watt |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Essentials |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Processor / Memory | |
| Processors Installed | 1 x Intel Celeron N3160 1.6 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 4 GB (installed) / 4 GB (supported) - DDR3 |
