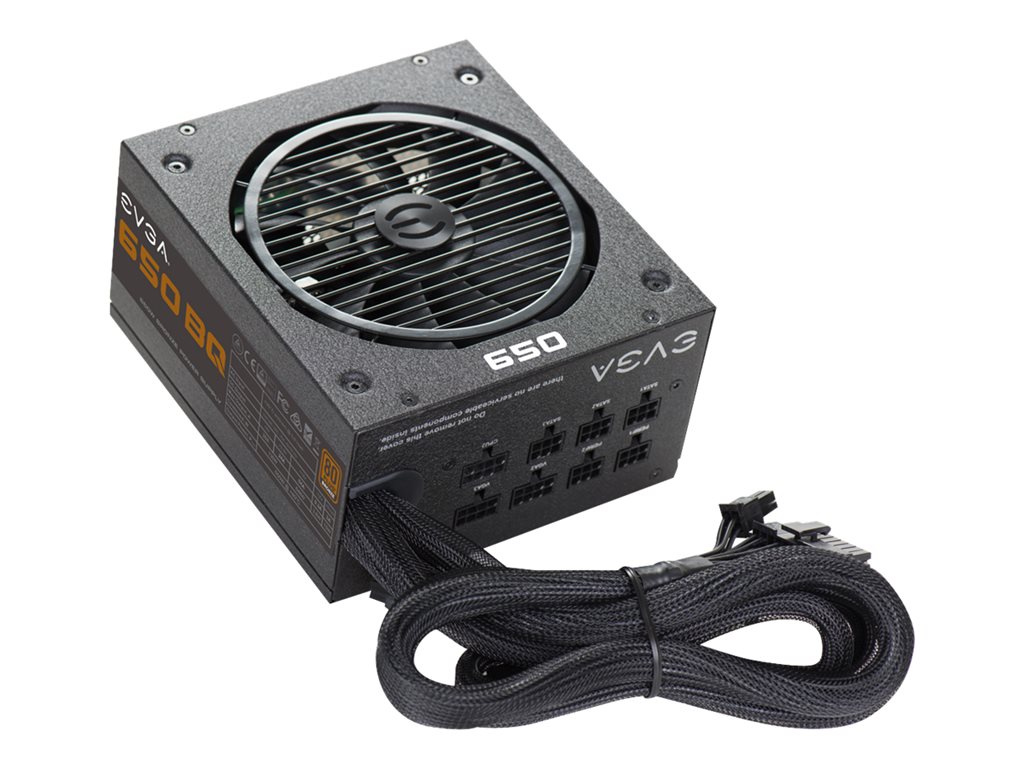

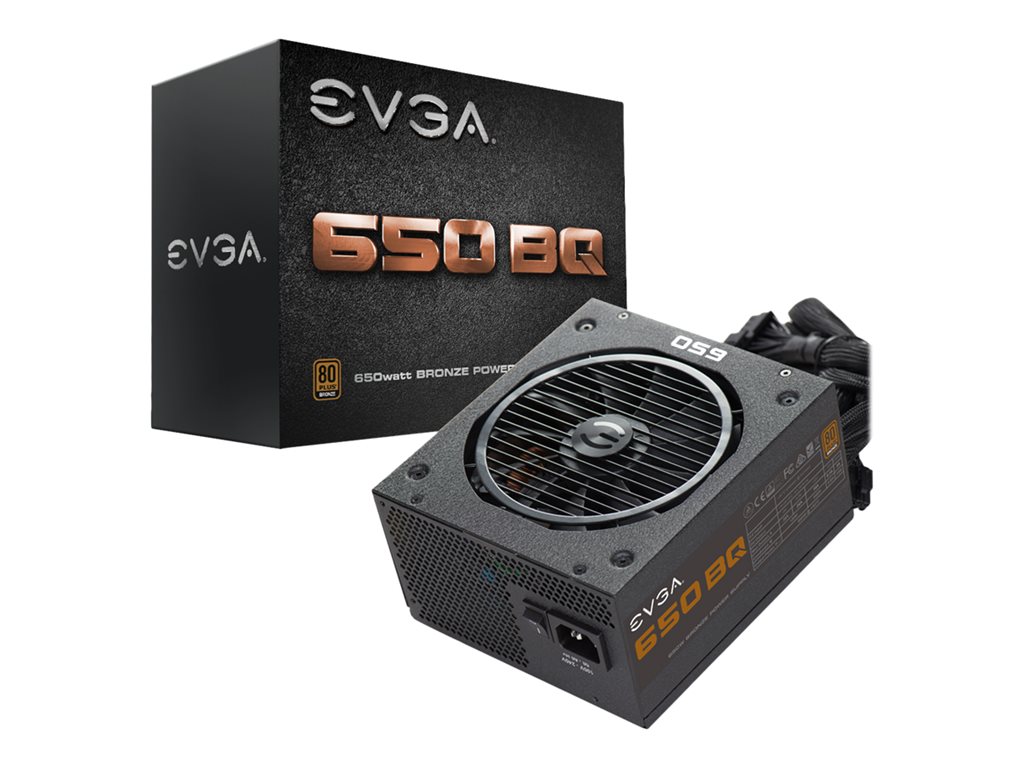

Power supply (internal) - 80 PLUS Bronze - AC 100-240 V - 650 Watt
| Main Specifications | |
|---|---|
| Product Description | EVGA 650 BQ - power supply - 650 watt |
| Device Type | Power supply - internal |
| 80 PLUS Certification | 80 PLUS Bronze |
| Weight | 5.07 lbs |

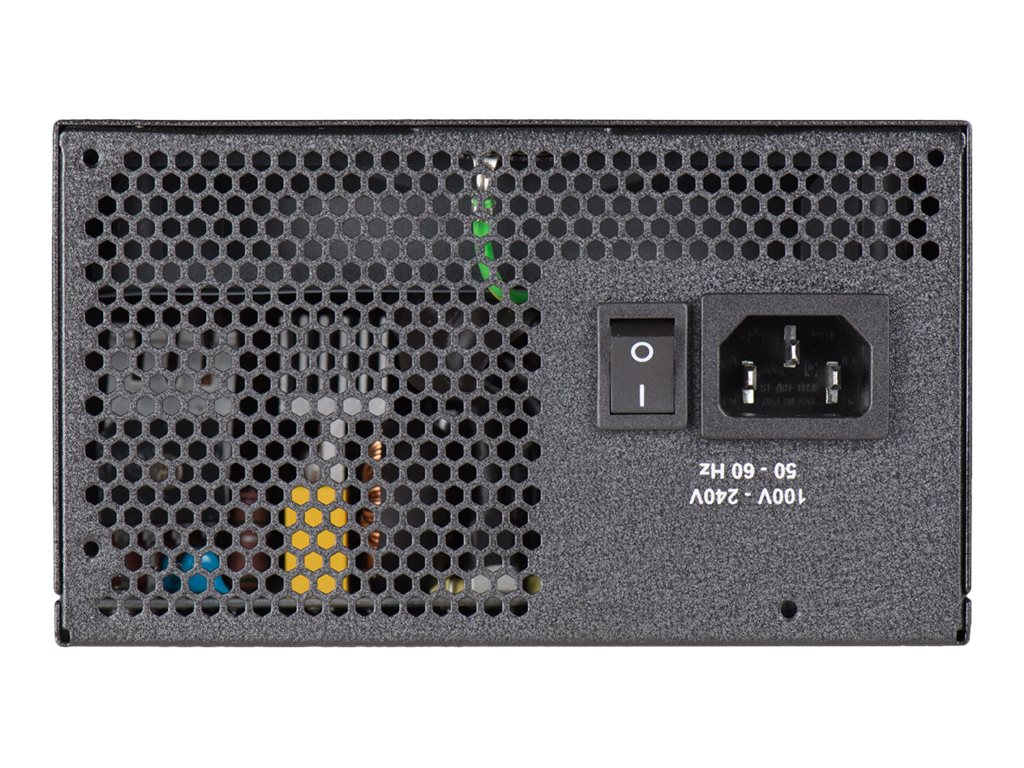

| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 watt |

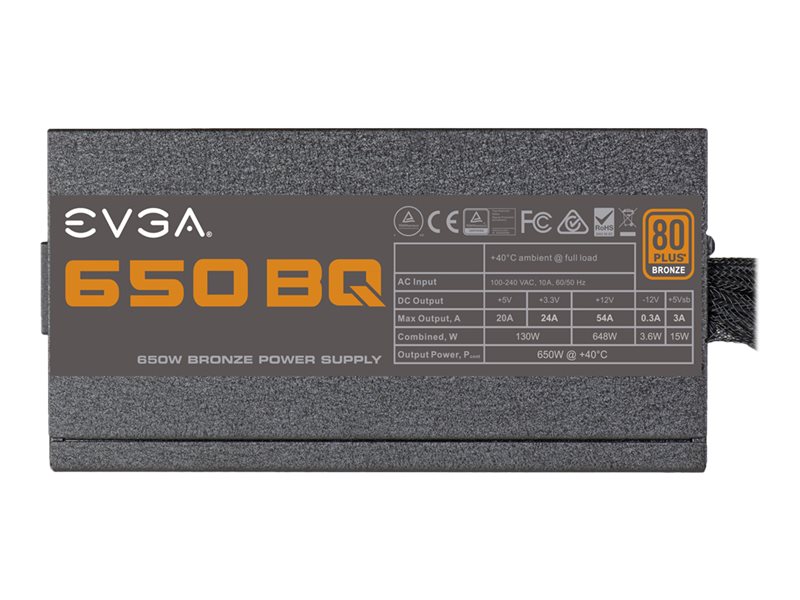

| Output Current | +3.3V - 24 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A |

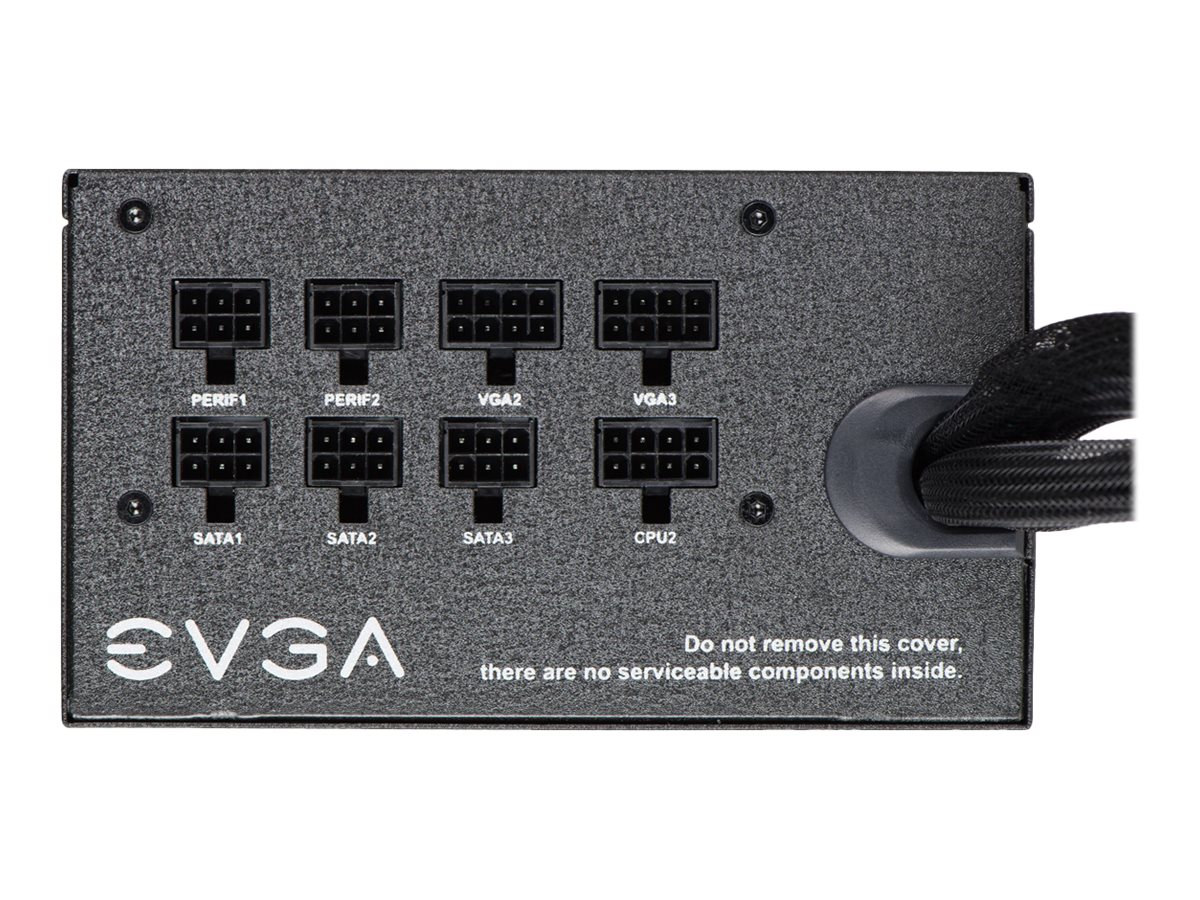

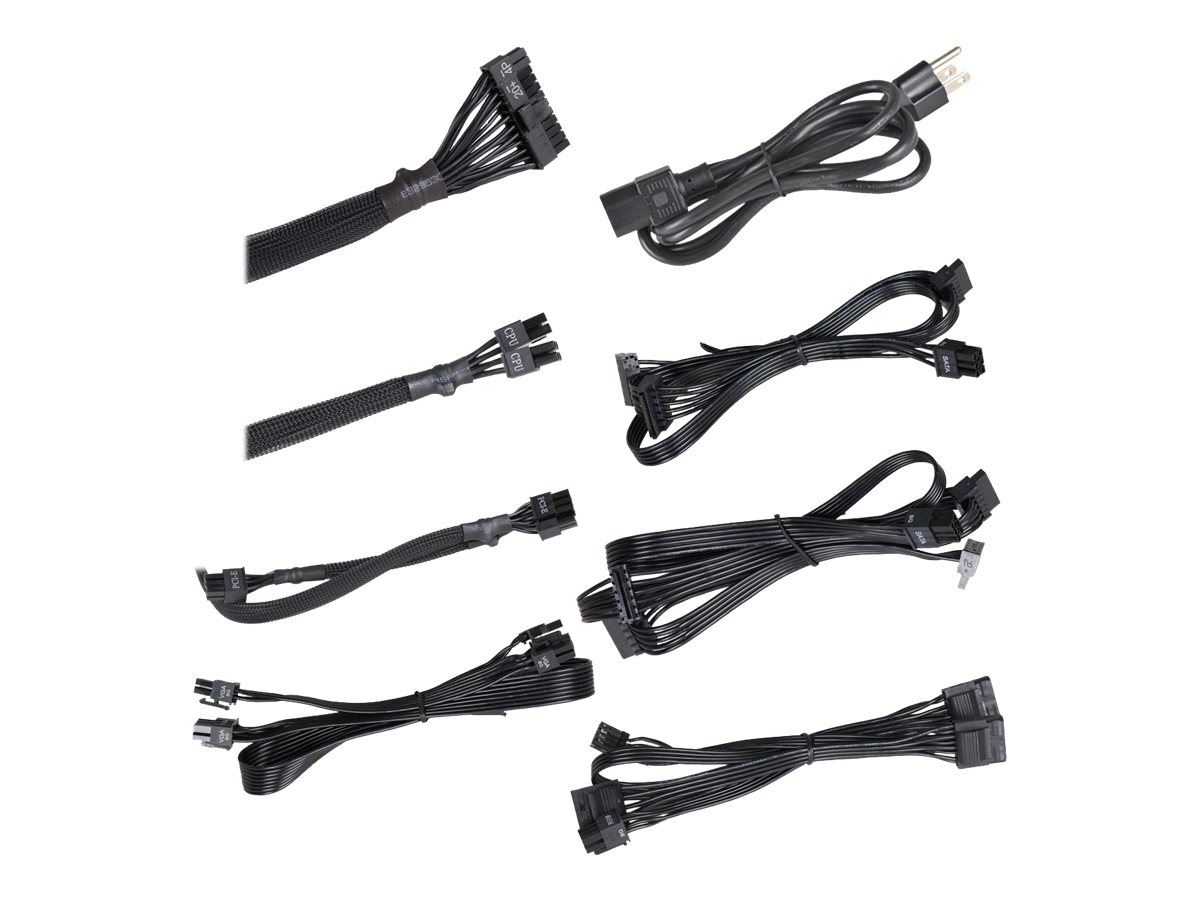

| Output connectors | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |
| Cooling System | 140 mm fan |
| Dimensions (WxDxH) | 5.9 in x 6.5 in x 3.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - internal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 100,000 hour(s) |
| Cooling System | 140 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Teflon Nano-Steel Bearing fan, semi-modular |
| Compliant Standards | TUV, BSMI, CCC, FCC, RoHS, WEEE, cTUVus, ErP 2013 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 watt |
| Output Current | +3.3V - 24 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A |
| Efficiency | 85% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Bronze |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.5 in |
| Height | 3.3 in |
| Weight | 5.07 lbs |
