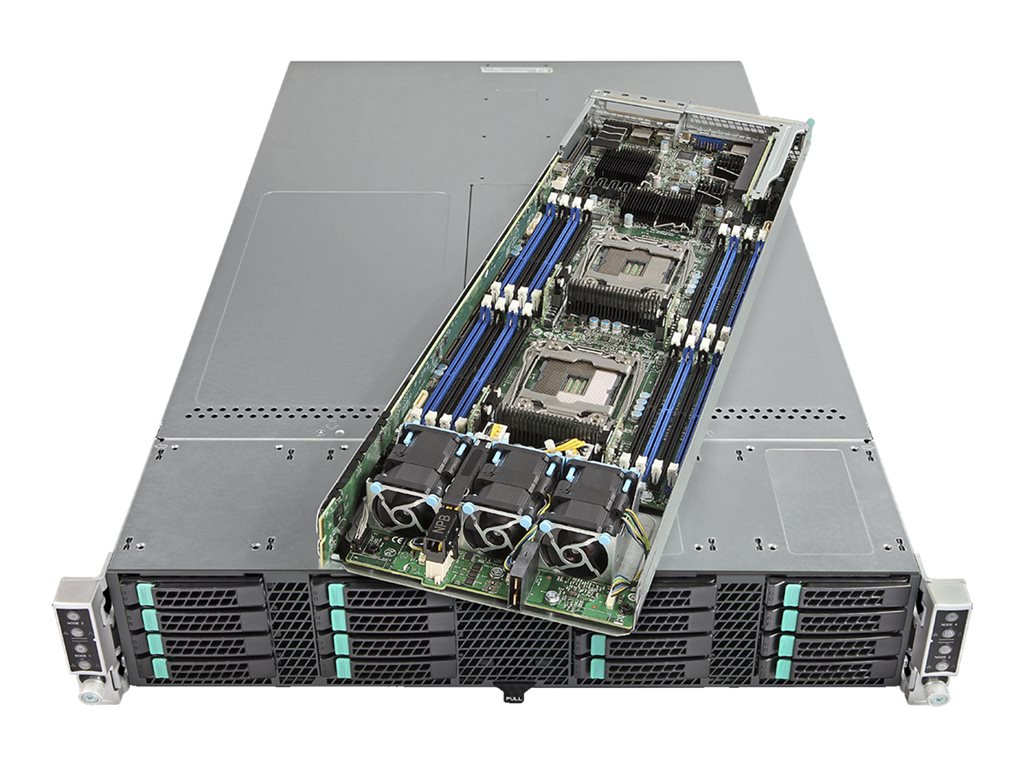

Server - rack-mountable 2U - 2-way - 1 x Xeon E5-2620V4 / up to 3 GHz - RAM 128 GB - SATA - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Intel Server System VRN2224THY4 - rack-mountable Xeon E5-2620V4 2.1 GHz - 128 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5-2620V4 / 2.1 GHz (up to 3 GHz, (8-core) |
| Processor Socket | LGA2011-v3 Socket |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 128 GB (installed) / 1024 GB (max) - DDR4 SDRAM - ECC |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 28.9 in x 3.4 in |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | Backplane |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
| Expansion / Connectivity | |
| Bays | 24 (total) / 24 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 1 (free) x CPU ¦ 16 DIMM 288-pin |
| Interfaces | 8 x USB ¦ 24 x SATA ¦ 4 x serial ¦ 8 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 8 x CPU Heatsink |
| RAM | |
| Installed Size | 128 GB (installed) / 1024 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) |
| Features | Intel Fast Memory Access, Intel Flex Memory Access |
| Networking | |
| Ethernet Ports | 8 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1600 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% at 50% Load |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Hard Drive | |
| Type | No HDD |
| Features | Intel Rapid Storage Technology, Advanced Power Management technology, remote management support |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 28.9 in |
| Height | 3.4 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2620V4 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
