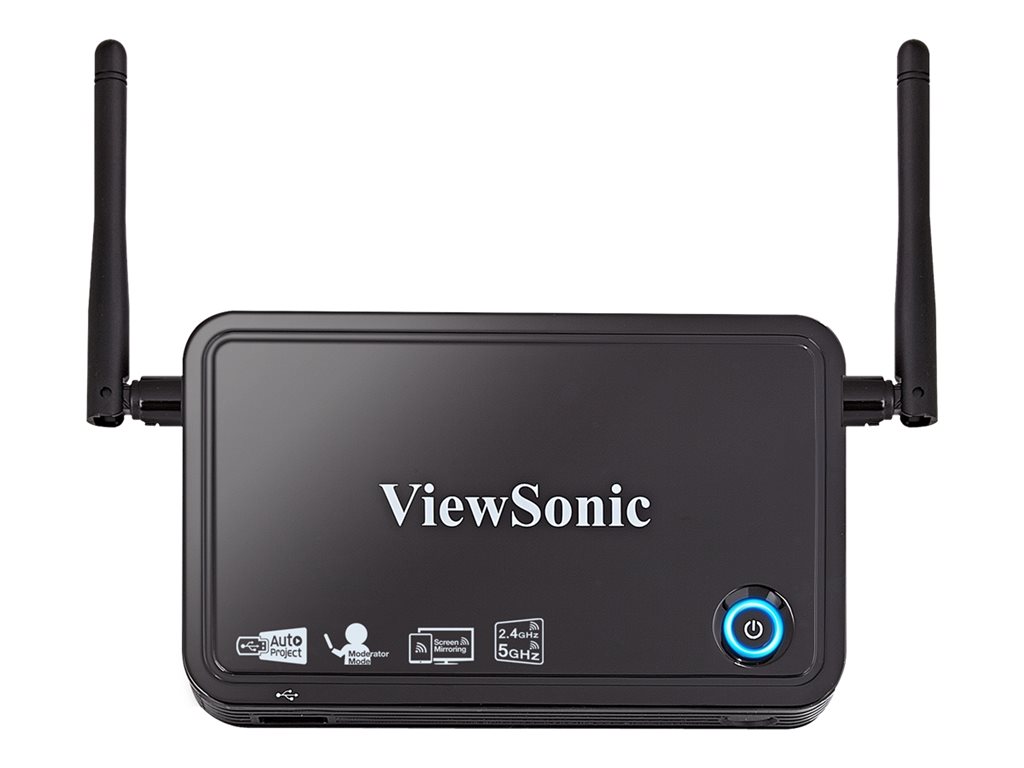

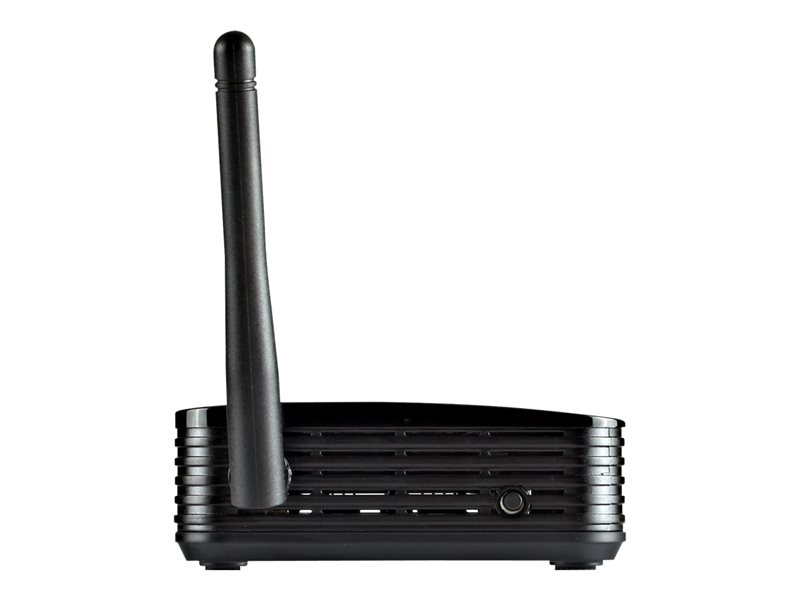

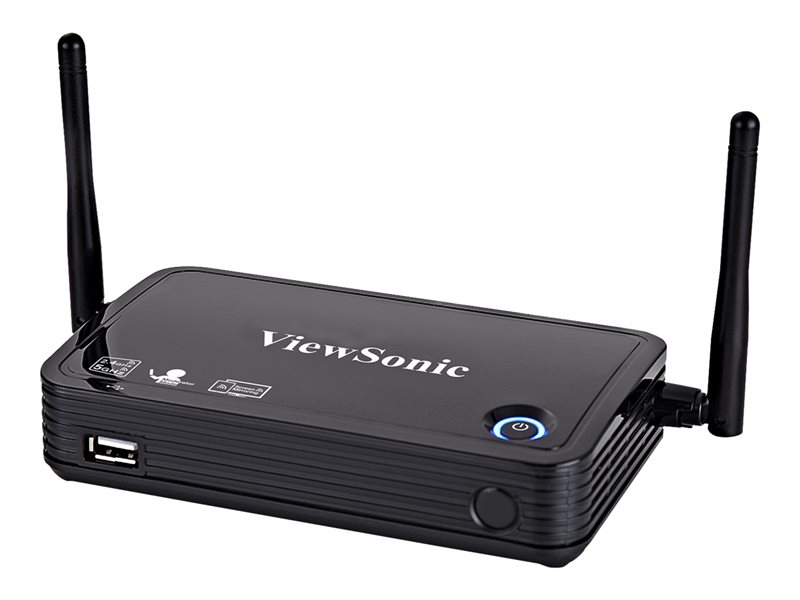

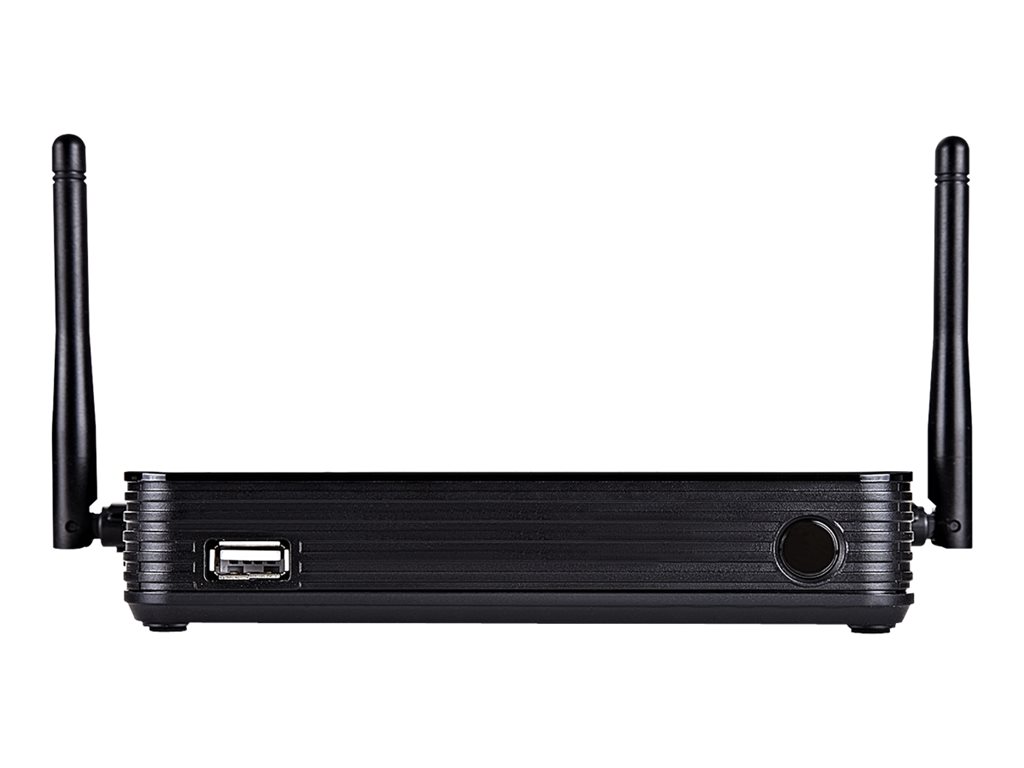

Presentation server - Wi-Fi - 2.4 GHz, 5 GHz - for ViewSonic Pro9520WL, Pro9800WUL; LightStream PJD6551W, Pro8510L, Pro8530HDL, Pro8800WUL
| Main Specifications | |
|---|---|
| Product Description | ViewSonic ViewSync 3 - presentation server - Wi-Fi |
| Device Type | Presentation server |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Included Accessories | Wireless remote control |
| OS Required | Apple MacOS X 10.7 or later, Android 4.2 (Jelly Bean) or later, Windows Phone 8.1, Microsoft Windows 7 / 8 (32/64 bits) |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.5 in x 4 in x 1.3 in |
| Weight | 7.05 oz |
| Manufacturer Warranty | 1-year warranty |
| Designed For | ViewSonic Pro9520WL, Pro9800WUL; LightStream PJD6551W, Pro8510L, Pro8530HDL, Pro8800WUL |
| General | |
| Device Type | Presentation server |
| Width | 7.5 in |
| Depth | 4 in |
| Height | 1.3 in |
| Weight | 7.05 oz |
| Expansion / Connectivity | |

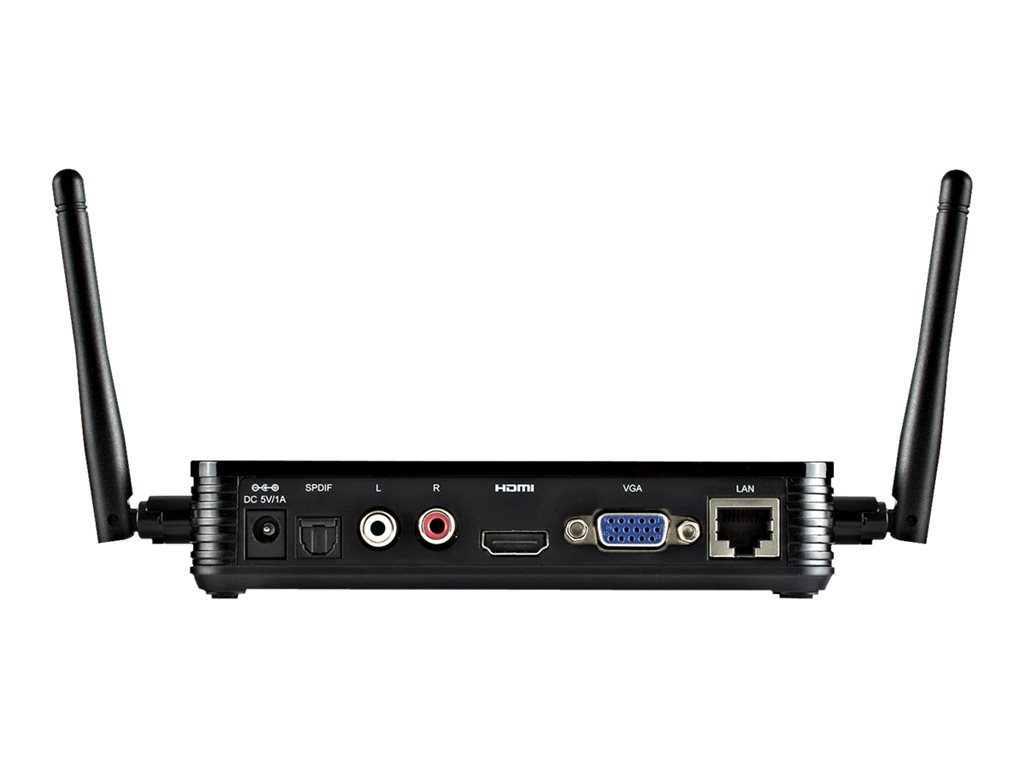

| Interfaces | 1 x VGA - HD-15 ¦ 1 x HDMI output ¦ 1 x network - RJ-45 ¦ 1 x audio line-out - RCA x 2 ¦ 1 x USB - Type A ¦ 1 x SPDIF output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Included Accessories | Wireless remote control |
| Compliant Standards | Plug and Play, FCC Class B certified, FCC, R&TTE, RoHS, ERP, EAC, NCC |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 150 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | HDCP compliant, Intel Wireless Display (WiDi), Wi-Fi Miracast ready, PC-Less Slideshows |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5 watt |
| Software / System Requirements | |
| Software Included | ViewSonic Wizard, ViewSonic Client Setup |
| OS Required | Apple MacOS X 10.7 or later, Android 4.2 (Jelly Bean) or later, Windows Phone 8.1, Microsoft Windows 7 / 8 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Compatibility Information | |
| Designed For | ViewSonic Pro9520WL, Pro9800WUL ¦ ViewSonic LightStream PJD6551W, Pro8510L, Pro8530HDL, Pro8800WUL |
