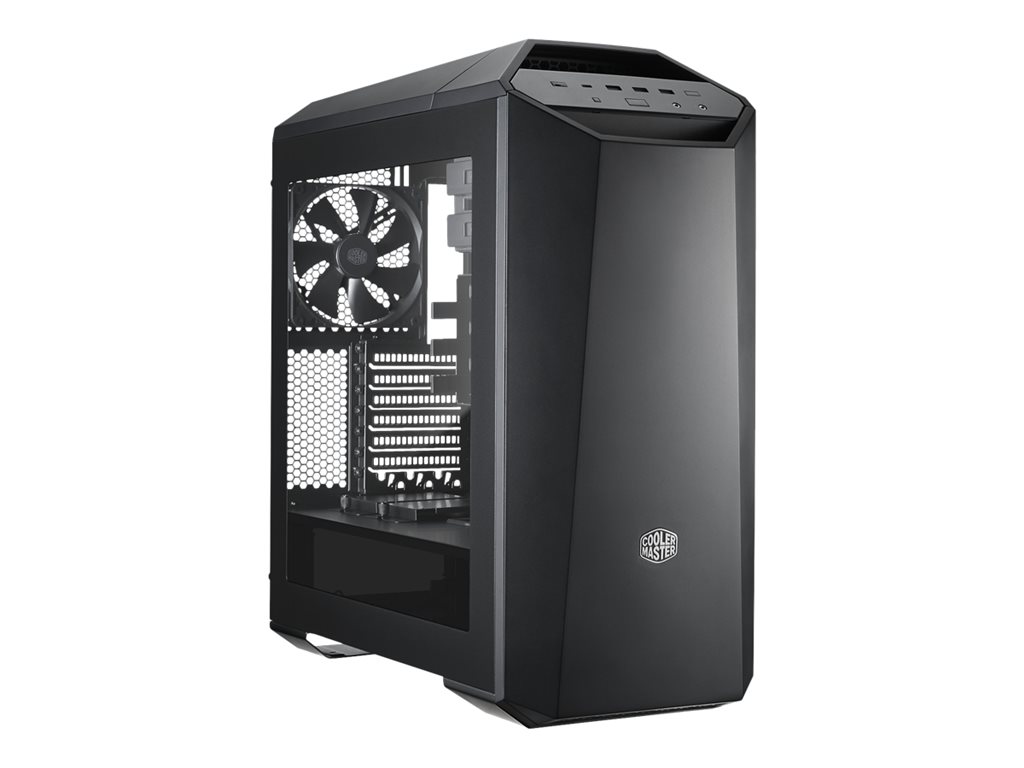

Tower - ATX - windowed side panel - no power supply - USB/Audio
| Main Specifications | |
|---|---|

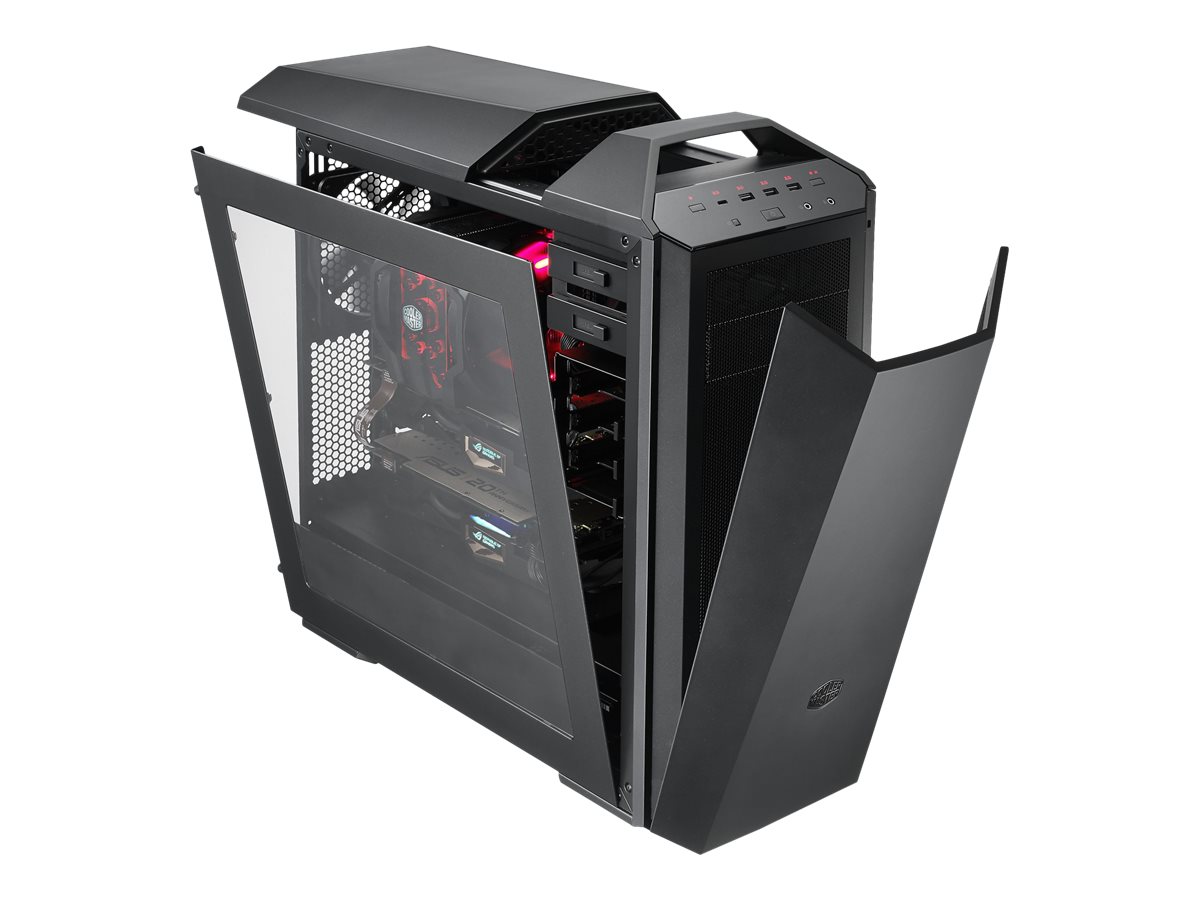

| Product Description | Cooler Master MasterCase Maker 5 - tower - ATX |
| Product Type | System cabinet |
| Form Factor | Tower |

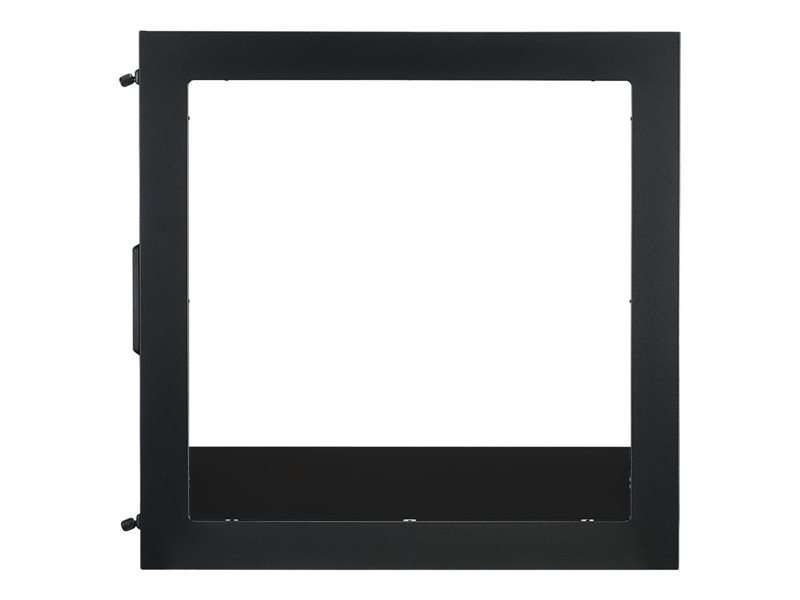

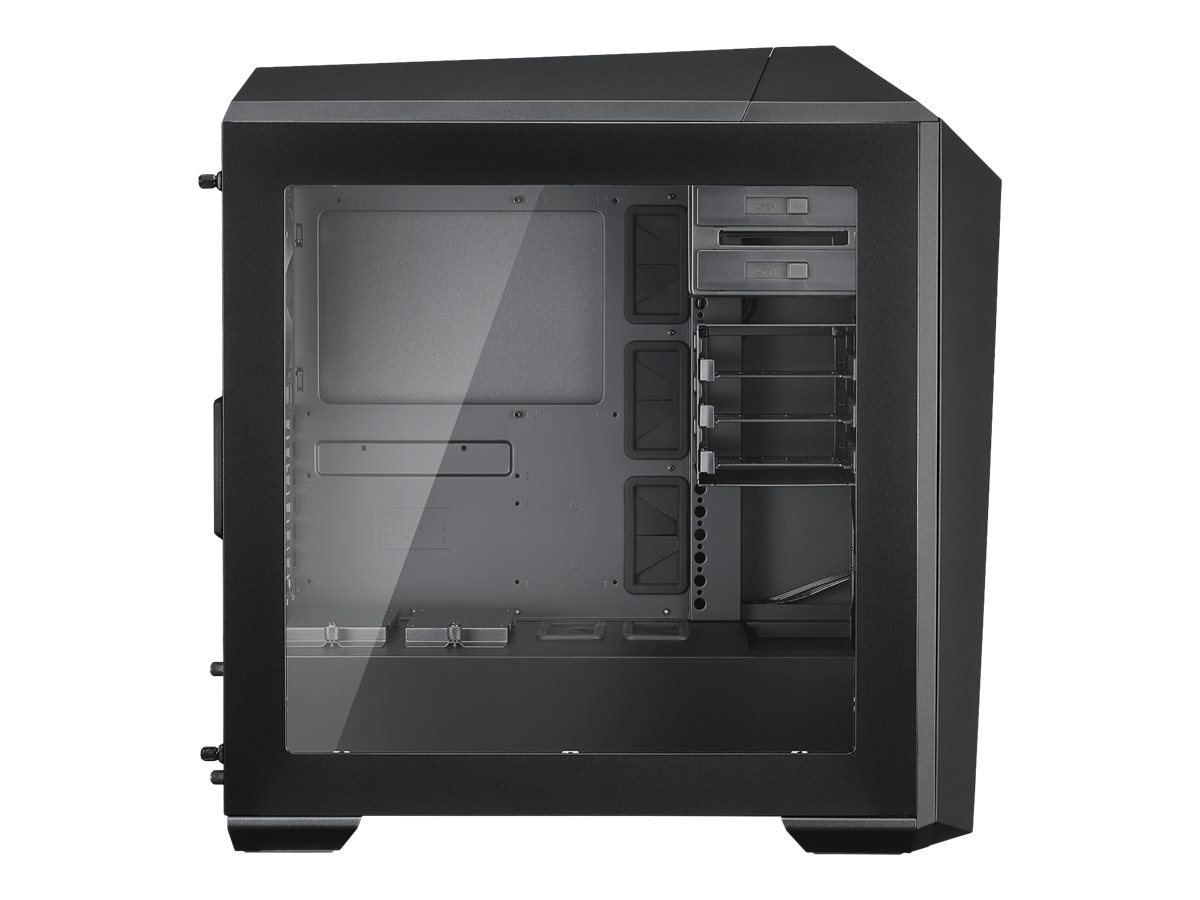

| Windowed Side Panel | Yes |

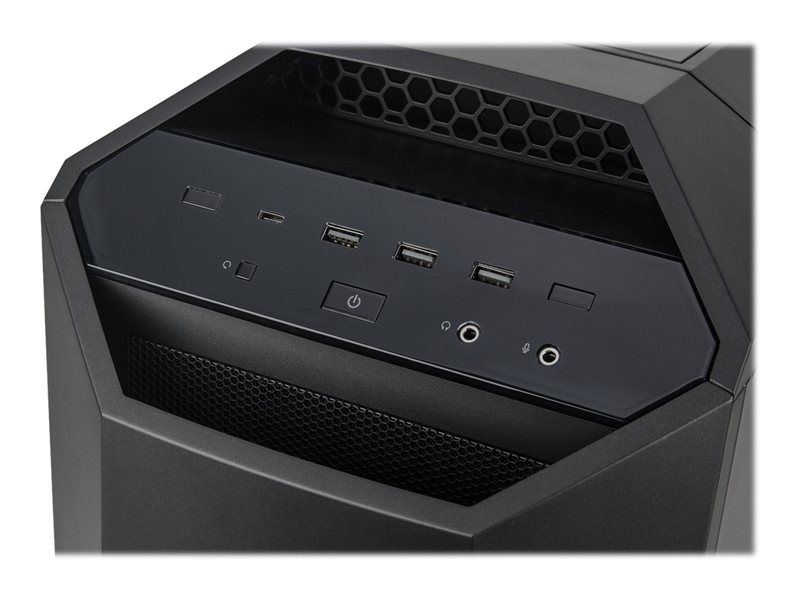

| I/O Connectors | 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x audio line-out ¦ 1 x audio line-in |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| System Cabinet Features | Red LED, red LED strip, front panel cover |
| Power Device | No power supply |
| Dimensions (WxDxH) | 9.3 in x 20.8 in x 21.6 in |
| Weight | 27.12 lbs |
| General | |
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 7 |
| Front Accessible Bays Qty | 2 |
| Cooling System | Front: 140 x 140 x 25 mm fan x 2 / 1200 rpm ¦ Front: 140 x 140 x 25 mm fan mount x 1 ¦ Rear: 140 x 140 x 25 mm fan x 1 / 1200 rpm ¦ Rear: 140 x 140 x 25 mm fan mount x 1 / 1200 rpm ¦ Top: fan mount x 2 / 2 x 120/140 mm fan supported |
| CPU Cooler Max Height | 190 mm |
| Video Card Max Length | 412 mm |
| System Cabinet Features | Red LED, red LED strip, front panel cover |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" x 1/2H ¦ 5 (total) / 5 (free) x internal - 3.5" x 1/3H ¦ 7 (total) / 7 (free) x internal - 2.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack |
| Power | |
| Power Device | No power supply |
| Dimensions & Weight | |
| Width | 9.3 in |
| Depth | 20.8 in |
| Height | 21.6 in |
| Weight | 27.12 lbs |
