Network surveillance camera - pan / tilt - color (Day&Night) - 1280 x 720 - 720p - audio - wireless - Wi-Fi - LAN 10/100 - MJPEG, H.264 - DC 5 V
| Main Specifications | |
|---|---|
| Product Description | D-Link DCS-5030L - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 4.3 in x 4.6 in x 5.3 in |
| Weight | 10.31 oz |
| Connectivity Technology | Wired, wireless |
| Camera | Color - Day&Night |
| Max Resolution | 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p |
| Optical Sensor Type | CMOS - 1/4" |
| Minimum Illumination | 0 lux - IR ¦ 1 lux - color ¦ 0.5 lux - B&W |
| Focal Length | 2.38 mm |
| Lens Iris | F/2.2 |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -20 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Voltage | DC 5 V |
| Features | Date/time stamp, Motion Detection Technology, infrared cut filter, Sound Detection Sensor, Wi-Fi Protected Setup (WPS), text stamp, Event Notification, reset button |
| Manufacturer Warranty | 1-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired, wireless |
| Width | 4.3 in |
| Depth | 4.6 in |
| Height | 5.3 in |
| Weight | 10.31 oz |
| Expansion / Connectivity | |

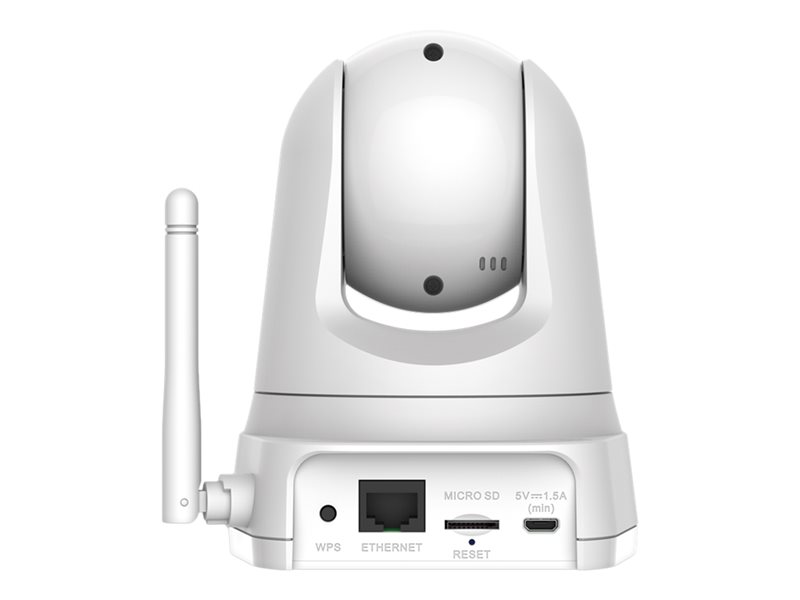

| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Included Accessories | Stand |
| Compliant Standards | FCC Class B certified, ICES, LVD |
| Power | |
| Power Requirements | DC 5 V |
| Power Device | Power adapter - external 5.56 watt |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.7 or later, Microsoft Windows Vista / 7 / 8 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1280 x 720 |
| Motion Detection | Yes |
| Video Modes | 720p |
| Digital Zoom | 4 |
| Minimum Illumination | 0 lux - IR ¦ 1 lux - color ¦ 0.5 lux - B&W |
| Infrared LEDs | Yes |
| Infrared Distance | 16.4 ft |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG |
| Features | Date/time stamp, Motion Detection Technology, infrared cut filter, Sound Detection Sensor, Wi-Fi Protected Setup (WPS), text stamp, Event Notification, reset button |
| Lens Construction | |
| Focal Length | 2.38 mm |
| Lens Iris | F/2.2 |
| Horizontal Field of View (degree) | 94.36 |
| Vertical Field of View (degree) | 59.3 |
| Image Sensor | |
| Type | CMOS 1/4" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, UPnP, IPv4, PPPoE, LLTD |
| Panning | |
| Range (degree) | -170 to +170 |
| Tilting | |
| Range (degree) | -20 to +90 |
