Motherboard - ATX - LGA1151 Socket - C236 Chipset - USB 3.1 Gen 1, USB-C Gen2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

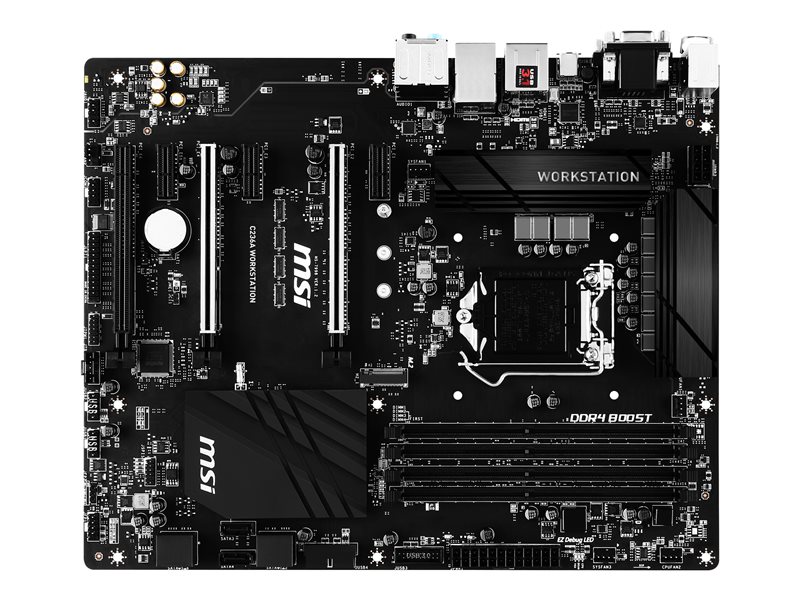

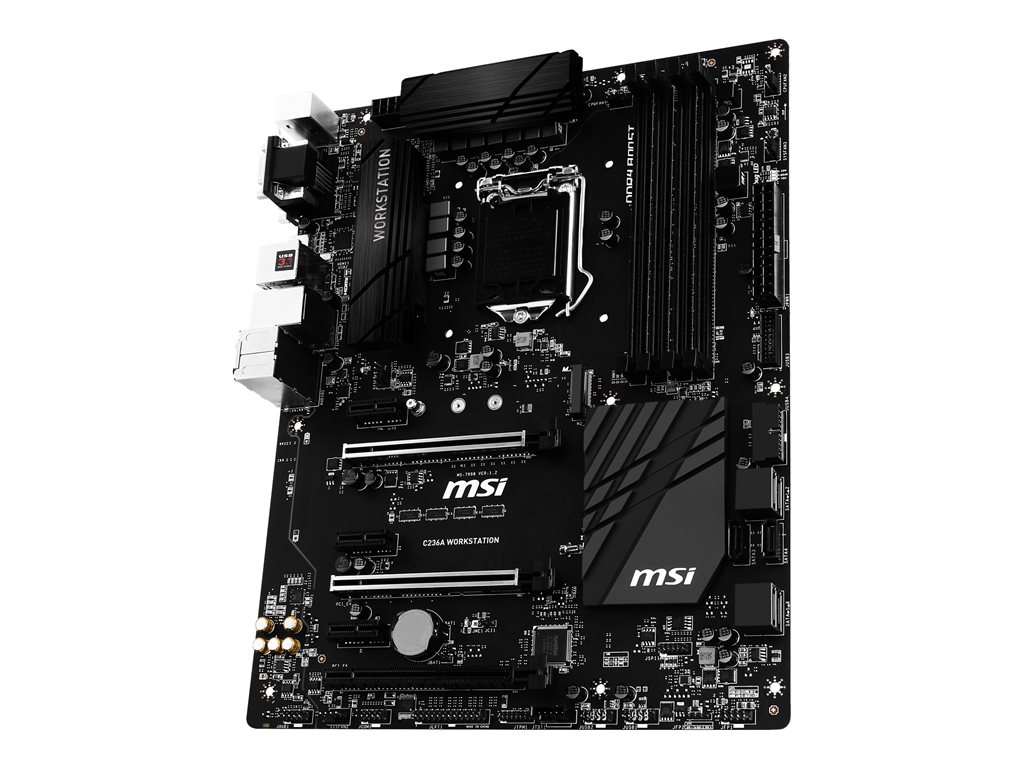

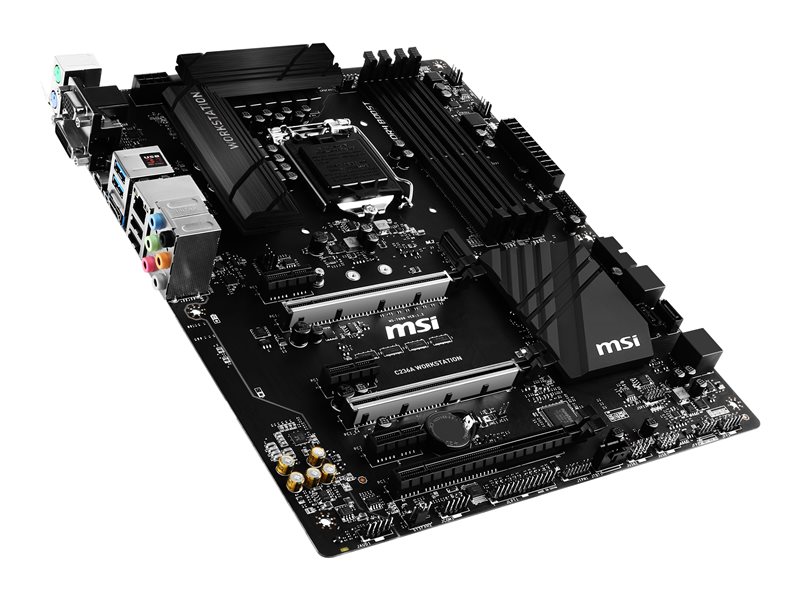

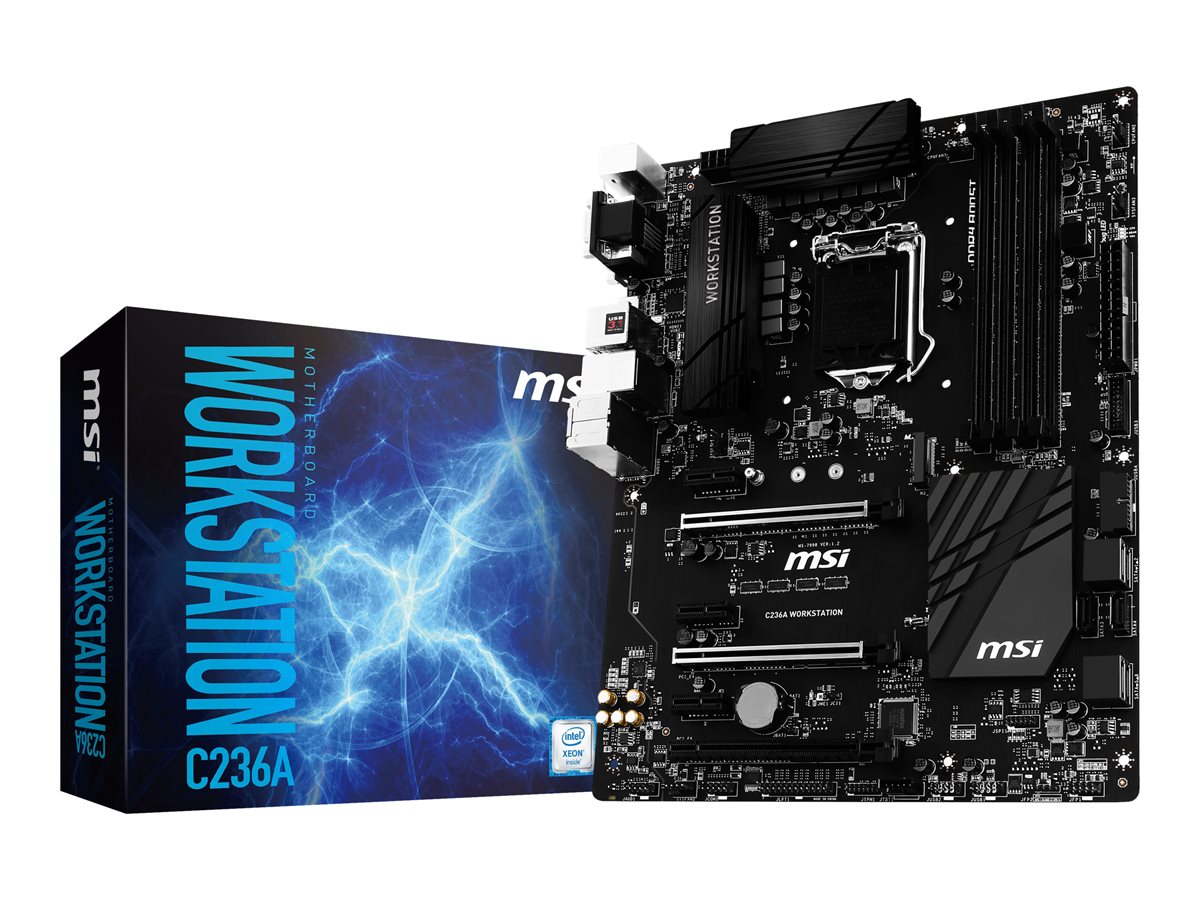

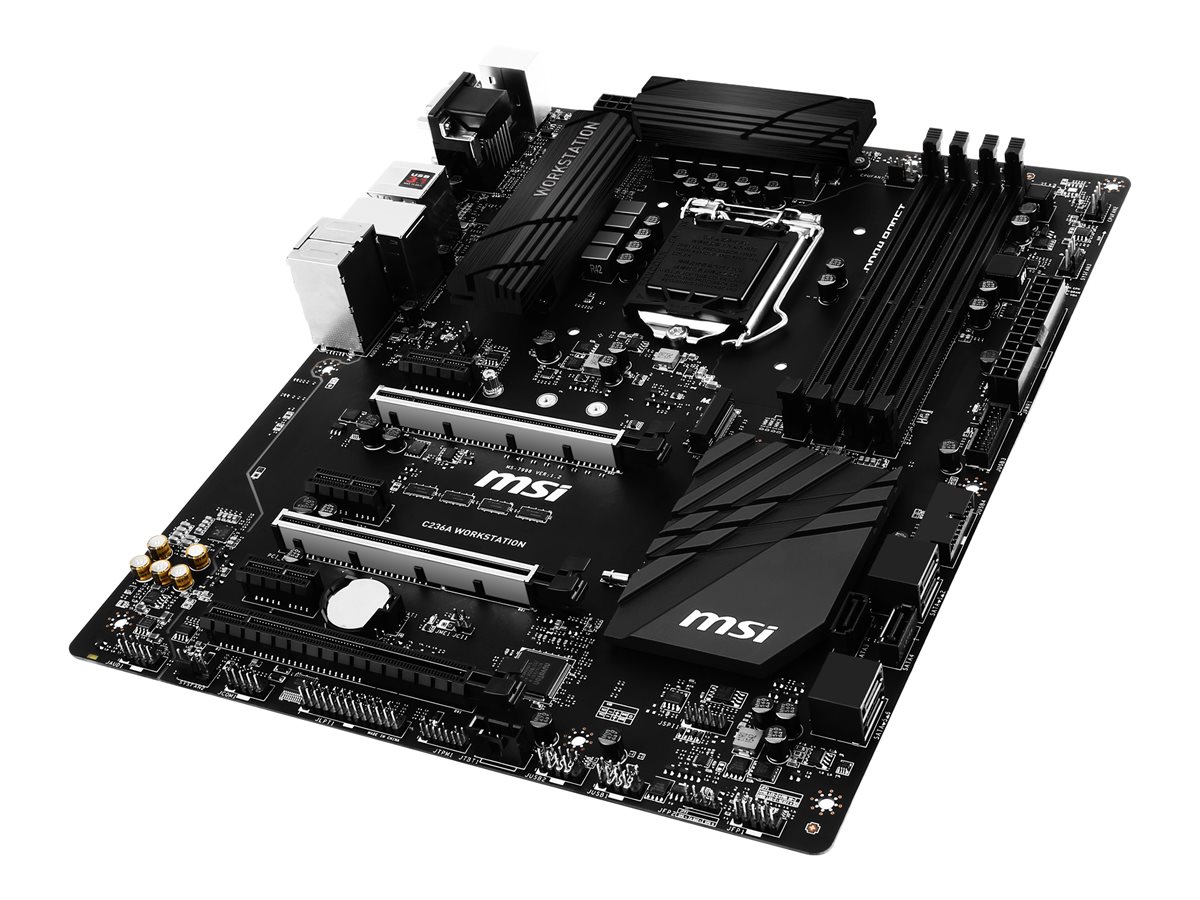

| Product Description | MSI C236A WORKSTATION - motherboard - ATX - LGA1151 Socket - C236 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C236 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series |
| Max RAM Size | 64 GB |
| RAM Supported | 4 DIMM slots - DDR4, ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C236 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16, x0, x4 or x8, x8, x4 modes) ¦ 3 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Smart Response Technology |

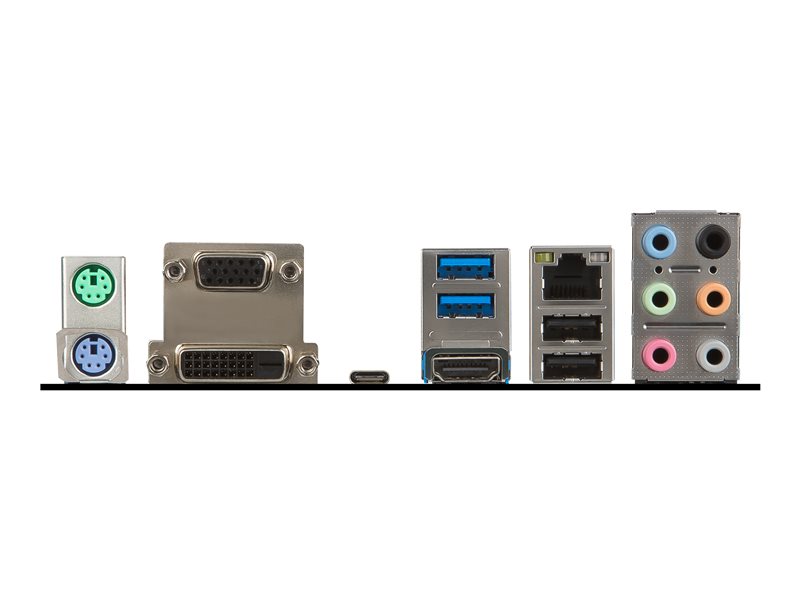

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 2 x USB 3.1 Gen 1 ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Software Included | MSI M-Cloud, MSI Shortcut Manager |
| Compliant Standards | WHQL |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1150 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Features | UEFI BIOS, MSI ClickBIOS 5 |
| Hardware Features | Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, MSI Military Class IV, 4K Ultra HD ready, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI Steel Armor, Double ESD Protection, overvoltage protection |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
