Motherboard - micro ATX - LGA1151 Socket - C232 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

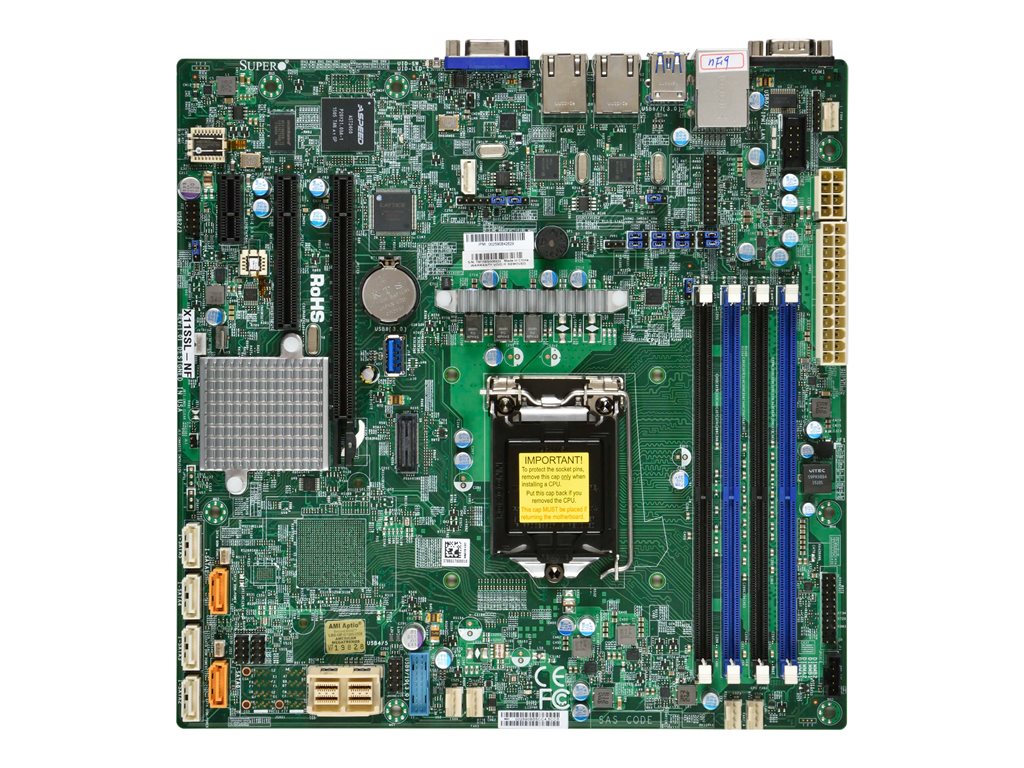

| Product Description | SUPERMICRO X11SSL-nF - motherboard - micro ATX - LGA1151 Socket - C232 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C232 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series (Maximum TDP 80 Watt) |
| Max RAM Size | 64 GB |
| RAM Supported | 4 DIMM slots - DDR4, ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 2 x U.2 |
| USB / FireWire Ports | 3 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers) |
| Graphics | ASPEED AST2400 |
| LAN | 2 x Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C232 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series (Maximum TDP 80 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 6 x 7pin SATA, 2 x U.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial |
| Internal Interfaces | 1 x serial - header ¦ 2 x USB 3.0 - header ¦ 1 x USB 3.0 - Type A ¦ 4 x USB 2.0 - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Software Included | SuperDoctor 5 |
| Compliant Standards | Plug and Play, RoHS |
| Width | 9.6 in |
| Depth | 9.6 in |
| Package Type | Bulk |
| Features | |
| BIOS Type | AMI |
| BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| LAN | |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2400 |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
