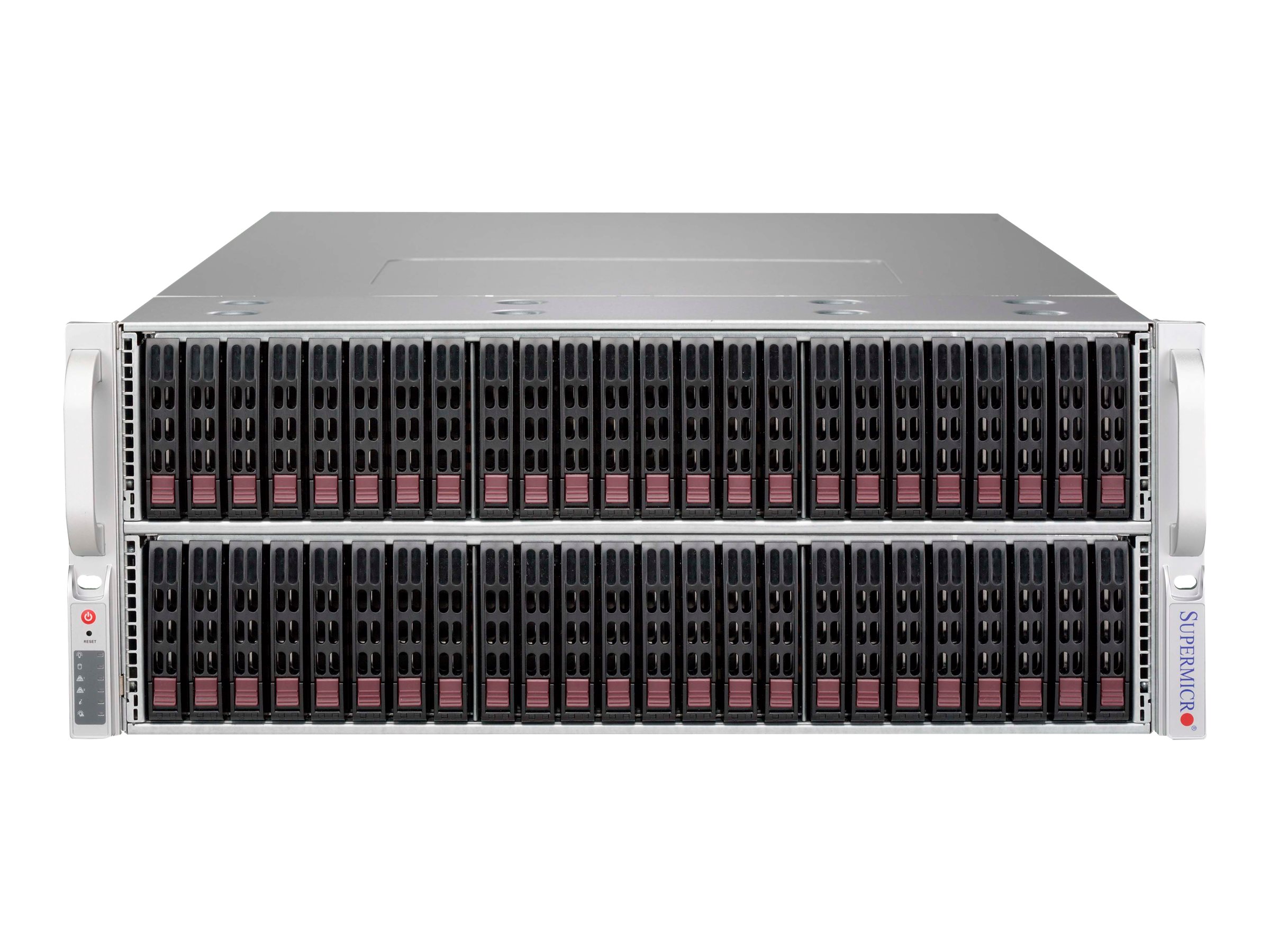

Rack-mountable 4U - SATA/SAS - hot-swap 1200 Watt - black
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC417 BE2C-R1K23JBOD - rack-mountable - 4U |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 4U |
| Color | Black |
| Server Storage Bays | SATA/SAS - hot-swap |
| System Cabinet Features | Chassis intrusion detection |
| Power Device | Power supply 1200 watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 27.5 in x 7 in |
| General | |
| Form Factor | Rack-mountable - 4U |
| Hot-Swap Bays Qty | 72 |
| Server Swappable Drive Interface | SATA/SAS |
| Color | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 7 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap, redundant |
| System Cabinet Features | Chassis intrusion detection |
| Expansion / Connectivity | |
| Expansion Bays | 72 (total) / 72 (free) x hot-swap - 2.5" |
| Miscellaneous | |
| Included Accessories | Mounting rails, SAS / SATA backplane, air shroud |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, CCC, RoHS, REACH |
| Power | |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 27.5 in |
| Height | 7 in |
