Motherboard - micro ATX - LGA2011-v3 Socket - C612 Chipset - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

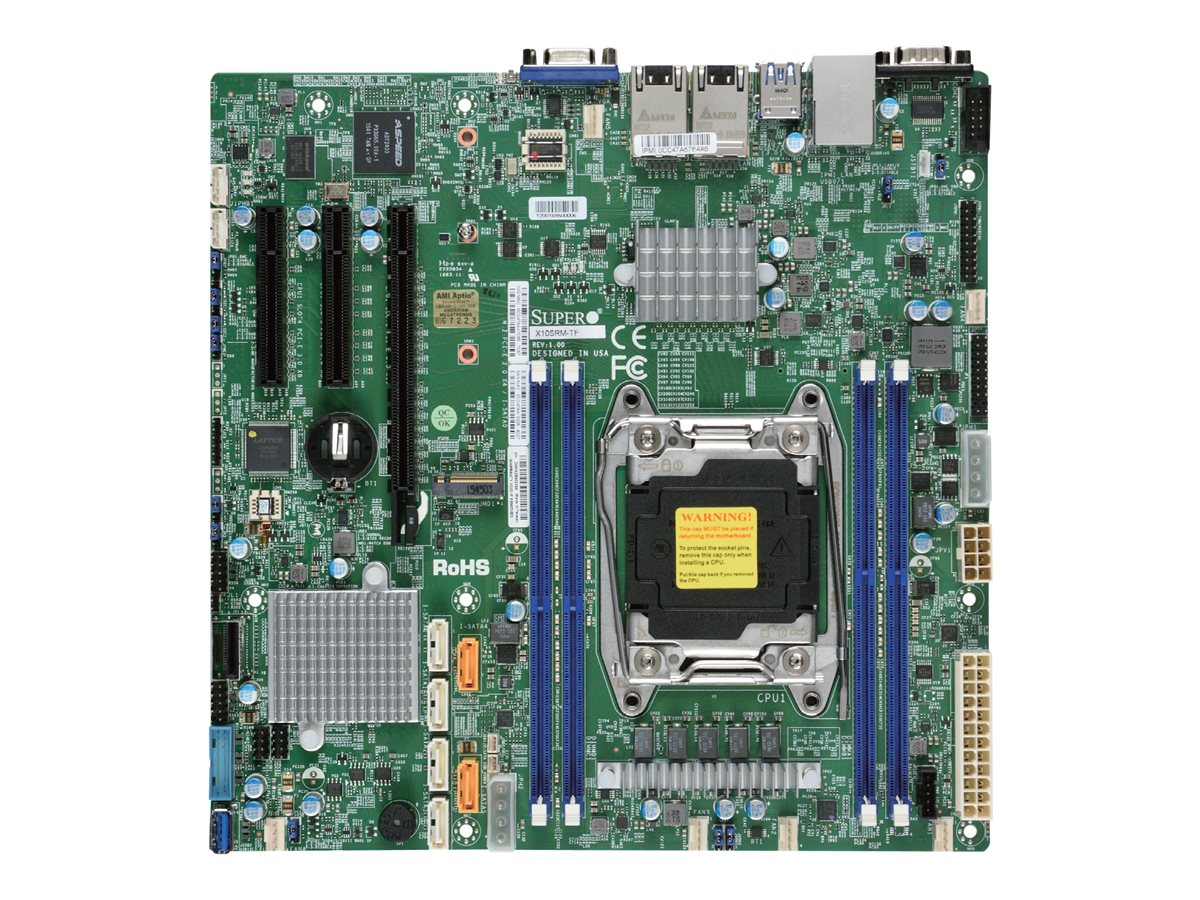

| Product Description | SUPERMICRO X10SRM-TF - motherboard - micro ATX - LGA2011-v3 Socket - C612 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C612 |
| Processor Socket | 1 x LGA2011-v3 Socket |
| Compatible Processors | Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series (supports CPUs with up to 22 cores, Maximum TDP 145 Watt) |
| Max RAM Size | 512 GB |
| RAM Supported | 4 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports | 10 x SATA-600 (RAID) |
| USB / FireWire Ports | 3 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers) |
| Graphics | ASPEED AST2400 |
| LAN | 2 x 10 Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C612 |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series (supports CPUs with up to 22 cores, Maximum TDP 145 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x management ¦ 1 x serial ¦ 2 x USB 3.0 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x USB 3.0 - Type A ¦ 1 x serial - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, RoHS |
| Width | 9.6 in |
| Depth | 9.6 in |
| Package Type | Retail |
| Features | |
| BIOS Type | AMI |
| BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| LAN | |
| Network Controller | Intel X550 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2400 |
| Supported RAM | |
| Max Size | 512 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced |
| Details | 128 GB - registered - ECC ¦ 256 GB - Load-Reduced - ECC ¦ 512 GB - 3DS Load-Reduced - ECC |
