Motherboard - ATX - LGA1151 Socket - Z170 Chipset - USB 3.0, USB 3.1 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (6-channel)
| Main Specifications | |
|---|---|

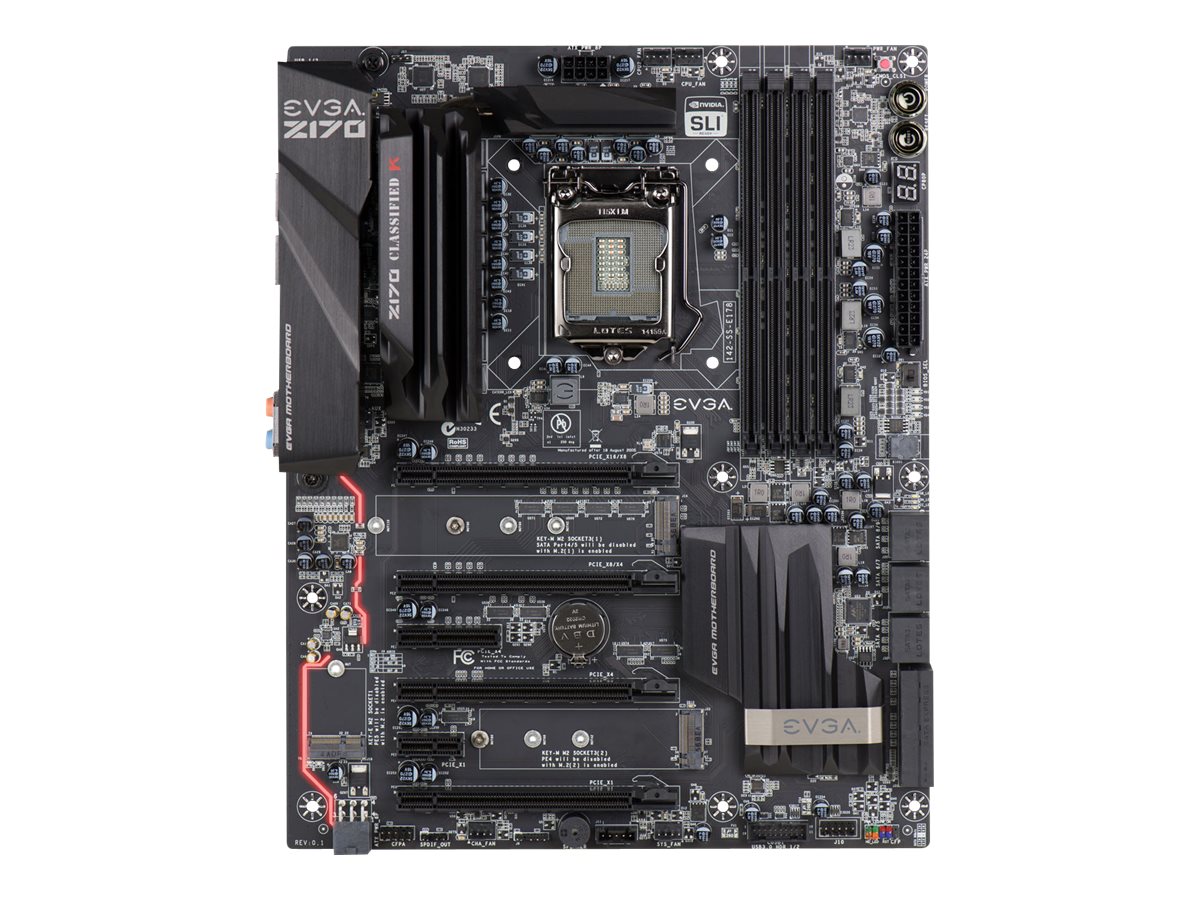

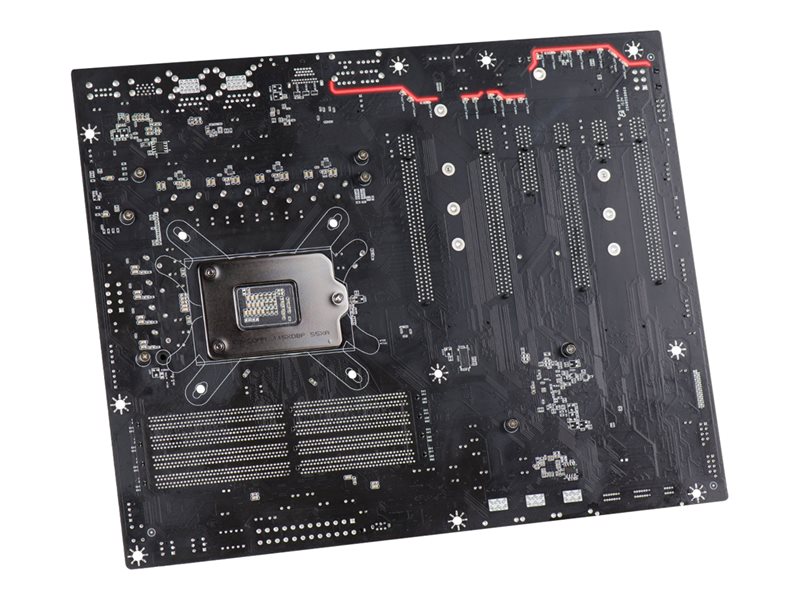

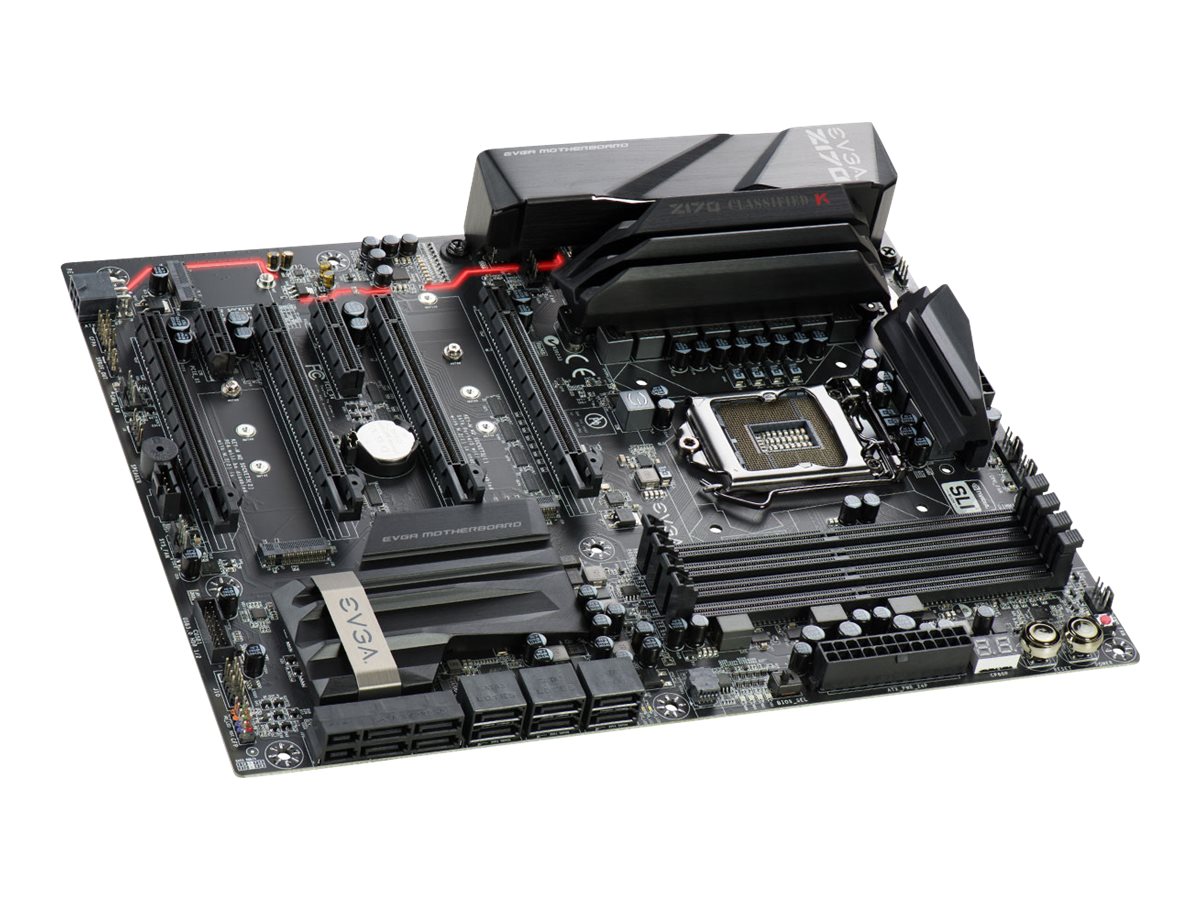

| Product Description | EVGA Z170 Classified K - motherboard - ATX - LGA1151 Socket - Z170 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z170 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Max RAM Size | 64 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 4 x SATA-600, 2 x SATA Express port |
| USB / FireWire Ports | 2 x USB 3.1 + 4 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (6-channel) |
| LAN | 2 x Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z170 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 ¦ 2 x PCIe 3.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 3 x M.2 socket ¦ 4 x DIMM 288-pin ¦ 1 x CPU |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 4 x USB 3.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x TOSLINK ¦ 2 x USB 3.1 ¦ 1 x audio line-out (side surround)/line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 2 x USB 2.0 - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

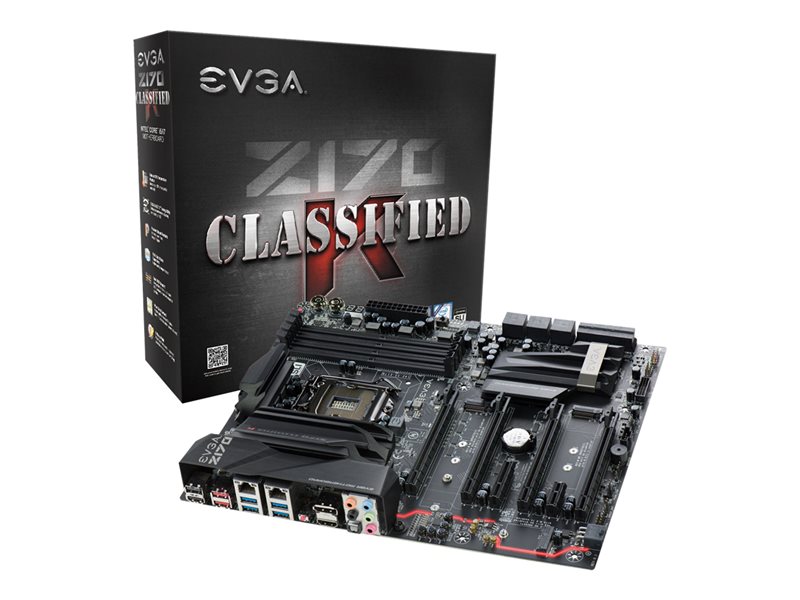

| Included Accessories | I/O back plate, case badge, I/O back cover, 2-Way SLI Bridge |
| Cables Included | 2 x Serial ATA cable |
| Software Included | EVGA E-LEET |
| Width | 9.6 in |
| Depth | 12 in |
| Audio | |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC1150 |
| Features | |
| BIOS Features | ACPI support, EVGA VDroop Control, Dual BIOS |
| Hardware Monitoring | CPU core temperature |
| Hardware Features | NVIDIA 2-way SLI Technology Support, NVIDIA PhysX Technology, 6 Layer PCB |
| LAN | |
| Network Controller | Killer Gaming E2400 / Intel I219V |
| Network Interfaces | 2 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
